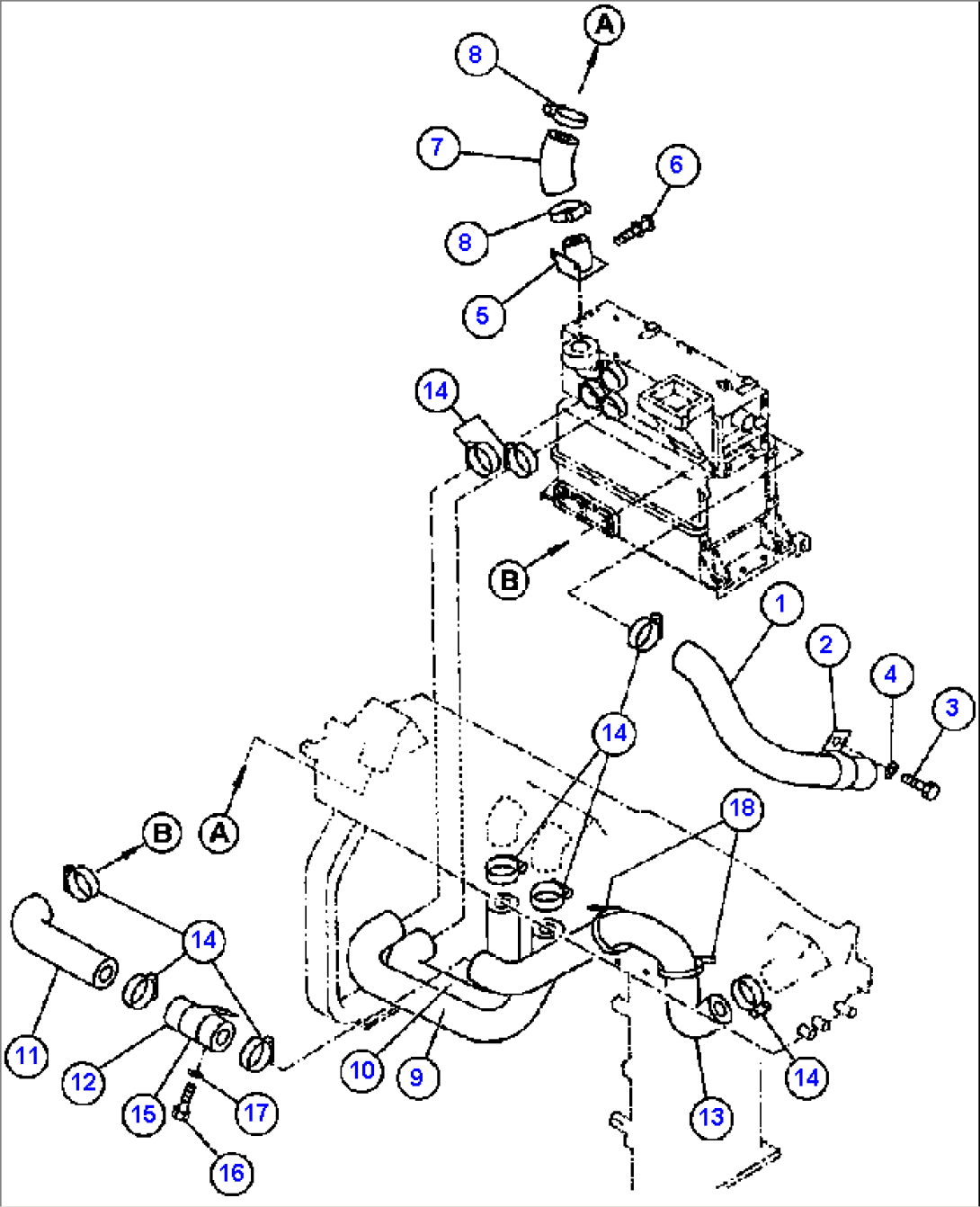

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09485-04508 | HOSE | ||
| 2 | 569-07-61790 | CLIP | ||
| 3 | 01010-81016 | CAPSCREW | ||
| 4 | 01643-31032 | WASHER | ||
| 5 | 569-07-61760 | TUBE | ||
| 6 | 01023-20616 | SCREW | ||
| 7 | 569-07-61691 | HOSE | ||
| 8 | 07281-00489 | CLAMP | ||
| 9 | 569-07-61740 | HOSE | ||
| 10 | 569-07-61681 | HOSE | ||
| 11 | 569-07-61750 | HOSE | ||
| 12 | 569-07-61290 | TUBE | ||
| 13 | 569-07-61671 | HOSE | ||
| 14 | 07281-00609 | CLAMP | ||
| 15 | 569-07-61790 | CLIP | ||
| 16 | 01010-81016 | CAPSCREW | ||
| 17 | 01643-31032 | WASHER | ||
| 18 | 08034-00834 | BAND |
