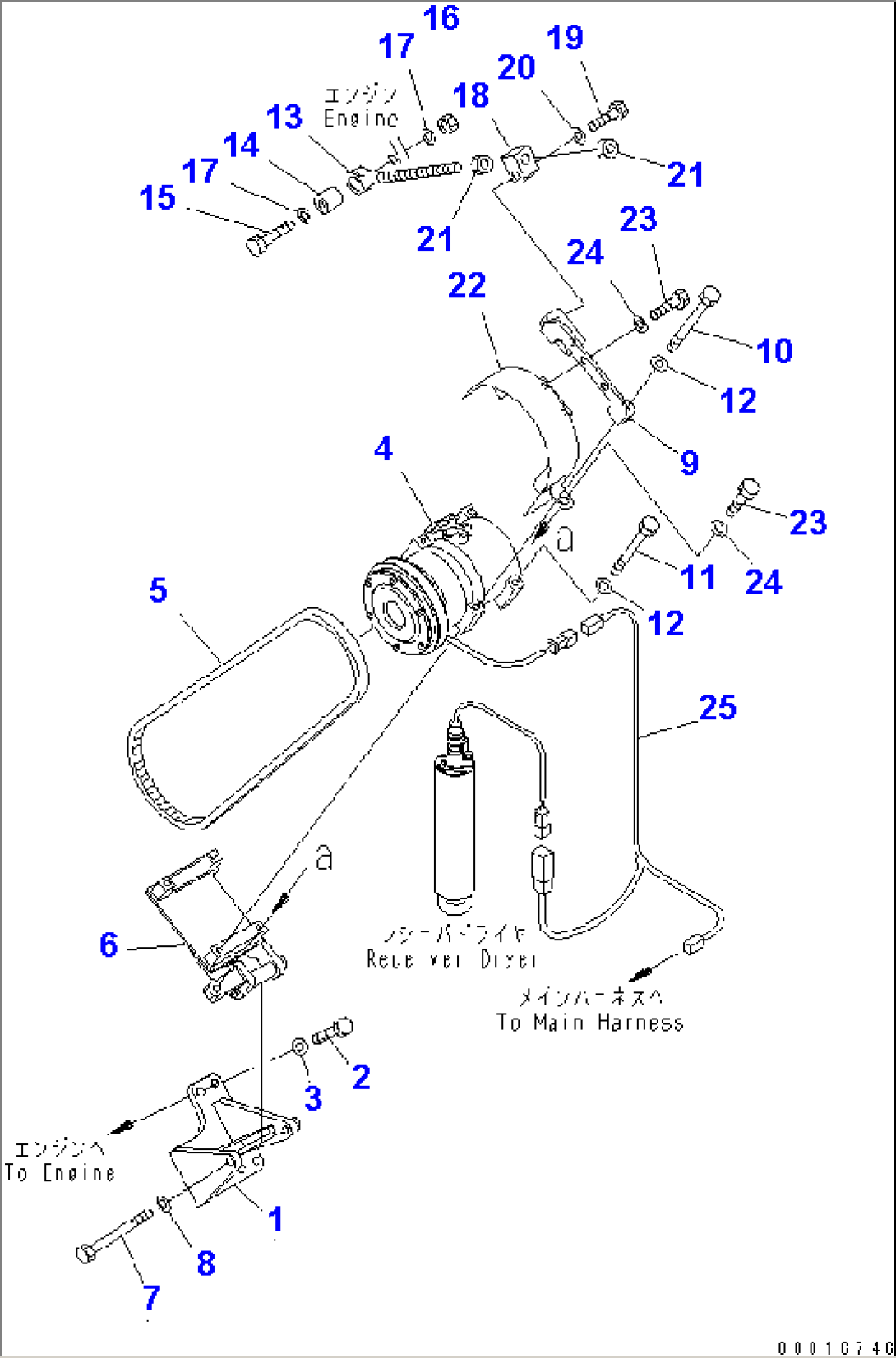

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-07-12762 | BRACKET | 1016- | |
| 2 | 01010-81030 | BOLT | 1016- | |
| 3 | 01643-31032 | WASHER | 1016- | |
| 4 | 421-07-31220 | COMPRESSOR ASS'Y | 1001- | |
| 5 | 04120-21760 | V-BELT | 1001- | |
| 6 | 56D-07-12772 | BRACKET | 1016- | |
| 7 | 125-70-21210 | BOLT | 1001- | |
| 8 | 01643-31232 | WASHER | 1001- | |
| 9 | 56D-07-12782 | BRACKET | 1016- | |
| 10 | 6132-11-6460 | BOLT | 1001- | |
| 11 | 01010-80880 | BOLT | 1016- | |
| 12 | 01643-30823 | WASHER | 1001- | |
| 13 | 6240-81-8610 | ROD | 1016- | |
| 14 | 6215-81-6150 | PIN | 1001- | |
| 15 | 01010-81260 | BOLT | 1001- | |
| 16 | 01580-11210 | NUT | 1001- | |
| 17 | 01643-31232 | WASHER | 1001- | |
| 18 | 56D-07-12791 | PLATE | 1016- | |
| 19 | 01010-81255 | BOLT | 1001- | |
| 20 | 01643-31232 | WASHER | 1001- | |
| 21 | 01580-01613 | NUT | 1016- | |
| 22 | 56D-07-12822 | COVER | 1016- | |
| 23 | 01010-81025 | BOLT | 1016- | |
| 24 | 01643-31032 | WASHER | 1016- | |
| 25 | 56D-06-11441 | WIRING HARNESS | 1001- |
