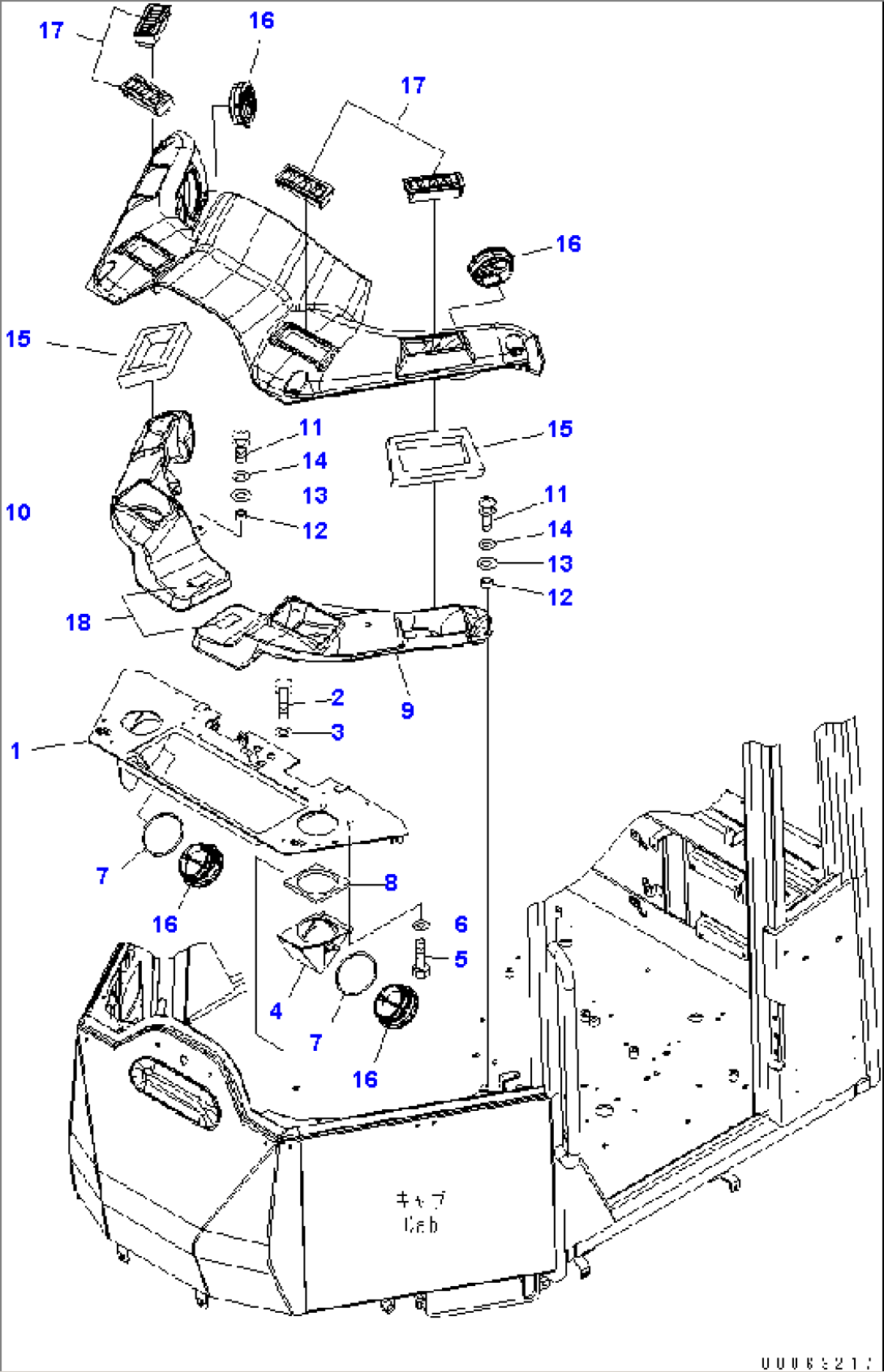

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-926-4570 | BRACKET | 70136-70342 | |
| 2 | 01010-80620 | BOLT | 70136-70342 | |
| 3 | 01643-30623 | WASHER | 70136-70342 | |
| 4 | 418-926-4580 | COVER | 70136-70342 | |
| 5 | 01010-80612 | BOLT | 70136-70342 | |
| 6 | 01643-30623 | WASHER | 70136-70342 | |
| 7 | 423-925-4482 | SHEET | 70136-70342 | |
| 8 | 423-925-4420 | SHEET | 70136-70342 | |
| 9 | 423-07-31683 | DUCT, LHS | 70136-70342 | |
| 10 | 423-07-31693 | DUCT, RHS | 70136-70342 | |
| 11 | 01023-10625 | SCREW | 70136-70342 | |
| 12 | 426-56-31890 | WASHER | 70136-70342 | |
| 13 | 426-56-31870 | WASHER | 70136-70342 | |
| 14 | 01643-30623 | WASHER | 70136-70342 | |
| 15 | 423-07-31250 | SHEET | 70136-70342 | |
| 16 | 20Y-53-12172 | GRILLE | 70136-70342 | |
| 17 | 421-07-12512 | GRILLE ASSEMBLY | 70136-70342 | |
| 18 | 423-07-31280 | PLATE | 70136-70342 |
