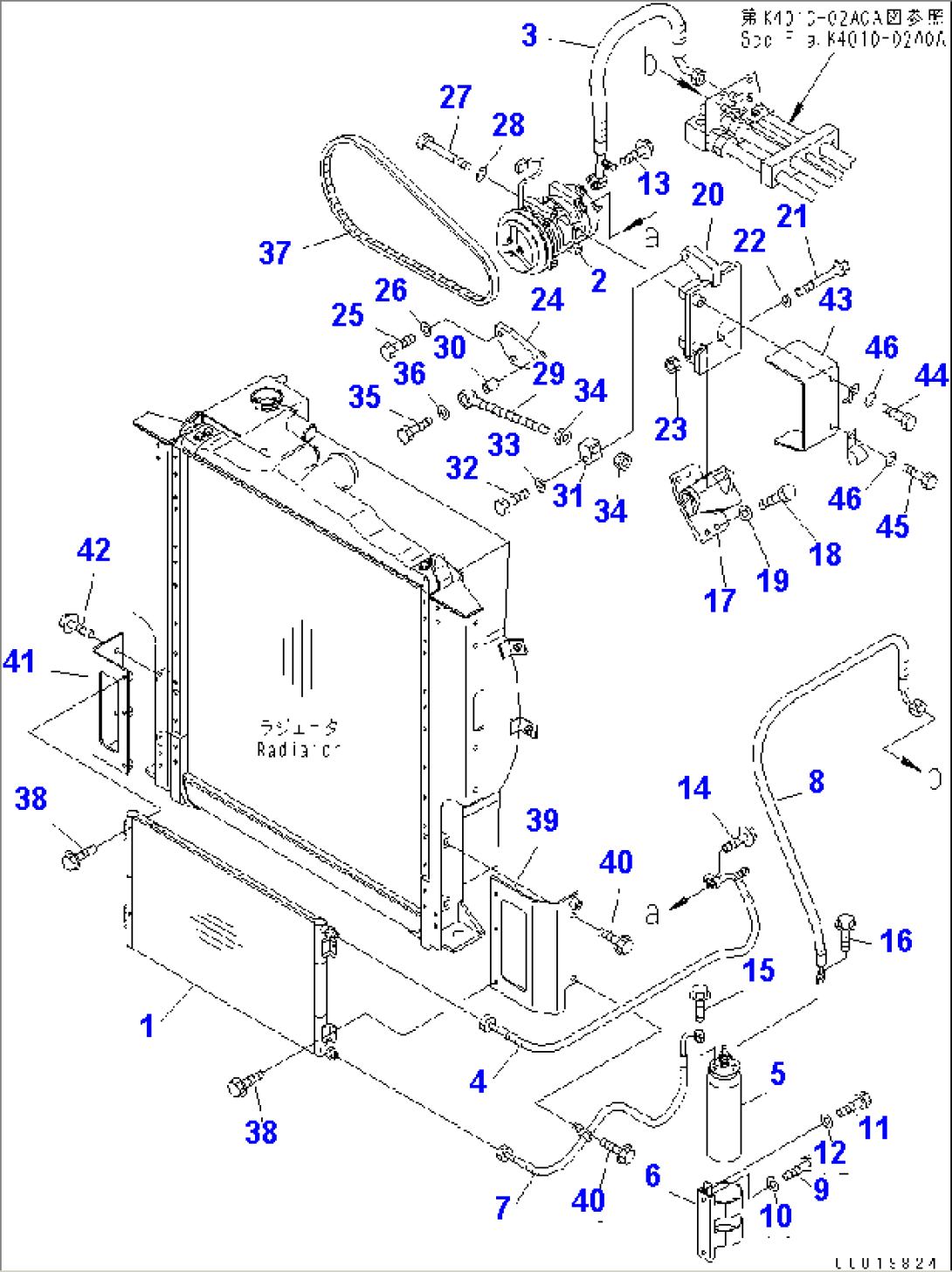

| Item | Part No. | Part Name | Qty | Serial No. |
| 567-07-77100 | CONDENSER | 1601- | ||
| 1 | 56E-07-21131 | CONDENSER ASS'Y | 1601- | |
| 567-07-77200 | COMPRESSOR | 1601- | ||
| 2 | 56E-07-21120 | COMPRESSOR ASS'Y | 1601- | |
| 3 | 567-07-73432 | HOSE | 1601- | |
| 4 | 567-07-73442 | HOSE | 1601- | |
| 567-07-77300 | RECEIVER | 1601- | ||
| 5 | 56E-07-21151 | TANK,RECEIVER | 1601- | |
| 6 | 567-07-71230 | BRACKET | 1601- | |
| 7 | 567-07-73452 | HOSE | 1601- | |
| 8 | 567-07-73462 | HOSE | 1601- | |
| 9 | 01010-80820 | BOLT | 1601- | |
| 10 | 01643-30823 | WASHER | 1601- | |
| 11 | 01010-80620 | BOLT | 1601- | |
| 12 | 01643-30623 | WASHER | 1601- | |
| 13 | 01435-00835 | BOLT | 1601- | |
| 14 | 01435-00825 | BOLT | 1601- | |
| 15 | 01435-00625 | BOLT | 1601- | |
| 16 | 01435-00625 | BOLT | 1601- | |
| 17 | 567-07-73312 | BRACKET | 1601- | |
| 18 | 01010-81035 | BOLT | 1601- | |
| 19 | 01643-31032 | WASHER | 1601- | |
| 20 | 567-07-73390 | BRACKET | 1601- | |
| 21 | 125-70-21210 | BOLT | 1601- | |
| 22 | 01643-31232 | WASHER | 1601- | |
| 23 | 01580-11210 | NUT | 1601- | |
| 24 | 567-07-73352 | PLATE | 1601- | |
| 25 | 01010-81040 | BOLT | 1601- | |
| 26 | 01643-31032 | WASHER | 1601- | |
| 27 | 419-09-11330 | BOLT | 1601- | |
| 28 | 01643-30823 | WASHER | 1601- | |
| 29 | 6240-81-8610 | ROD | 1601- | |
| 30 | 6215-81-6150 | PIN | 1601- | |
| 31 | 56D-07-12791 | PLATE | 1601- | |
| 32 | 01010-81275 | BOLT | 1601- | |
| 33 | 01643-31232 | WASHER | 1601- | |
| 34 | 01580-11613 | NUT | 1601- | |
| 35 | 01010-81265 | BOLT | 1601- | |
| 36 | 01643-31232 | WASHER | 1601- | |
| 37 | 04120-21753 | V-BELT | 1601- | |
| 38 | 01435-00816 | BOLT | 1601- | |
| 39 | 567-07-71210 | BRACKET,L.H. | 1601- | |
| 40 | 01435-01025 | BOLT | 1601- | |
| 41 | 567-07-71220 | BRACKET,R.H. | 1601- | |
| 42 | 01435-01025 | BOLT | 1601- | |
| 43 | 567-07-73470 | COVER | 1601- | |
| 44 | 01010-81025 | BOLT | 1601- | |
| 45 | 01010-81020 | BOLT | 1601- | |
| 46 | 01643-31032 | WASHER | 1601- |
