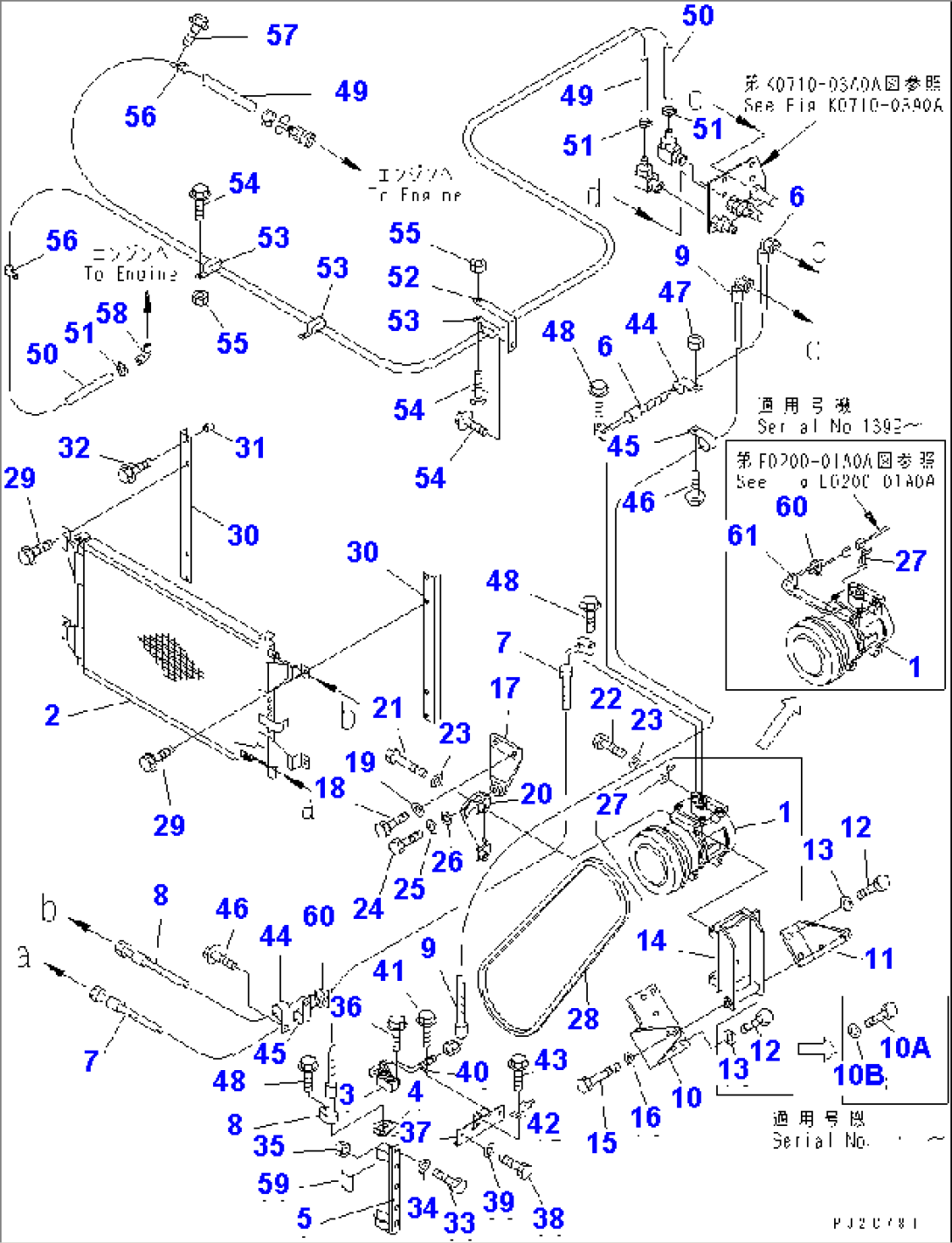

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (425-07-21180) | COMPRESSOR ASS'Y | 1201-1600 | |
| 2 | 209-979-6510 | CONDENSER ASS'Y | 1201-1600 | |
| 561-07-61031 | AIR CONDITIONER | 1201-1600 | ||
| 3 | 569-07-61461 | SWITCH ASS'Y | 1201-1600 | |
| 4 | 20Y-979-3120 | TANK,RECEIVER | 1201-1600 | |
| 5 | 569-07-61811 | HOLDER | 1201-1600 | |
| 6 | 567-07-73431 | HOSE | 1201-1600 | |
| 6 | 20Y-979-3130 | O-RING | 1201-1600 | |
| 7 | 567-07-73441 | HOSE | 1201-1600 | |
| 7 | 20Y-979-3140 | O-RING | 1201-1600 | |
| 8 | 567-07-73451 | HOSE | 1201-1600 | |
| 8 | 20Y-979-3150 | O-RING | 1201-1600 | |
| 9 | 567-07-73461 | HOSE | 1201-1600 | |
| 9 | 20Y-979-3150 | O-RING | 1201-1600 | |
| 10 | 567-07-73310 | BRACKET | 1201-1600 | |
| 10A | 01010-81025 | BOLT | .-1600 | |
| 10B | 01643-31032 | WASHER | .-1600 | |
| 11 | 567-07-73341 | BRACKET | 1201-1600 | |
| 12 | 01010-81025 | BOLT | .-1600 | |
| 12 | 01010-81025 | BOLT | 1201-. | |
| 13 | 01643-31032 | WASHER | .-1600 | |
| 13 | 01643-31032 | WASHER | 1201-. | |
| 14 | 566-07-6A122 | BRACKET | 1201-1600 | |
| 15 | 125-70-21210 | BOLT | 1201-1600 | |
| 16 | 01643-31232 | WASHER | 1201-1600 | |
| 17 | 567-07-73350 | BRACKET | 1201-1600 | |
| 18 | 01010-81025 | BOLT | 1201-1600 | |
| 19 | 01643-31032 | WASHER | 1201-1600 | |
| 20 | 567-07-73331 | BRACKET | 1201-1600 | |
| 21 | 6132-11-6460 | BOLT | 1201-1600 | |
| 22 | 01010-80885 | BOLT | 1201-1600 | |
| 23 | 01643-30823 | WASHER | 1201-1600 | |
| 24 | 01010-81250 | BOLT | 1201-1600 | |
| 25 | 01643-31232 | WASHER | 1201-1600 | |
| 26 | 01643-31445 | WASHER | 1201-1600 | |
| 27 | 08053-01510 | CLIP | 1201-1600 | |
| 28 | 04120-21760 | V-BELT | 1201-1600 | |
| 29 | 01435-00816 | BOLT | 1245-1600 | |
| 29 | 01435-00820 | BOLT | 1201-1244 | |
| 30 | 576-07-21130 | ANGLE | 1201-1600 | |
| 31 | 567-95-13160 | COLLAR | 1201-1600 | |
| 32 | 01435-00830 | BOLT | 1201-1600 | |
| 33 | 01010-80820 | BOLT | 1201-1600 | |
| 34 | 01643-30823 | WASHER | 1201-1600 | |
| 35 | 01580-10806 | NUT | 1201-1600 | |
| 36 | 01435-00625 | BOLT | 1201-1600 | |
| 37 | 567-07-73360 | BRACKET | 1201-1600 | |
| 38 | 01010-80820 | BOLT | 1201-1600 | |
| 39 | 01643-30823 | WASHER | 1201-1600 | |
| 40 | 04434-50808 | CLIP | 1245-1600 | |
| 40 | 04434-50810 | CLIP | 1201-1244 | |
| 41 | 01435-00816 | BOLT | 1201-1600 | |
| 42 | 08053-01512 | CLIP | 1201-1600 | |
| 43 | 01435-01016 | BOLT | 1201-1600 | |
| 44 | 04434-51610 | CLIP | 1201-1600 | |
| 45 | 04434-52210 | CLIP | 1201-1600 | |
| 46 | 01435-01016 | BOLT | 1201-1600 | |
| 47 | 01580-11008 | NUT | 1201-1600 | |
| 48 | 01435-00625 | BOLT | 1201-1600 | |
| 49 | 09483-10519 | HOSE | 1201-1600 | |
| 50 | 09483-10524 | HOSE | 1201-1600 | |
| 51 | 09479-02400 | CLAMP | 1452-1600 | |
| 51 | 07280-02523 | CLAMP | 1201-1451 | |
| 52 | 566-07-41410 | BRACKET | 1201-1600 | |
| 53 | 391-62-19250 | CLIP | 1201-1600 | |
| 54 | 01435-01020 | BOLT | 1201-1600 | |
| 55 | 01580-11008 | NUT | 1201-1600 | |
| 56 | 04434-52511 | CLIP | 1201-1600 | |
| 57 | 01435-01016 | BOLT | 1201-1600 | |
| 58 | 6137-81-3221 | ELBOW | 1201-1600 | |
| 59 | 566-07-6A190 | PLATE, NAME | 1201-1600 | |
| 60 | 08034-20823 | BAND | 1399-1600 | |
| 60 | 08034-20823 | BAND | 1201-1398 | |
| 61 | 08036-10810 | CLIP | 1399-1600 |
