| Item | Part No. | Part Name | Qty | Serial No. |
| (567-07-73412) | AIR CONDITIONER UNIT | 1014-1015 | ||
| (567-07-73411) | AIR CONDITIONER UNIT | 1001-1013 | ||

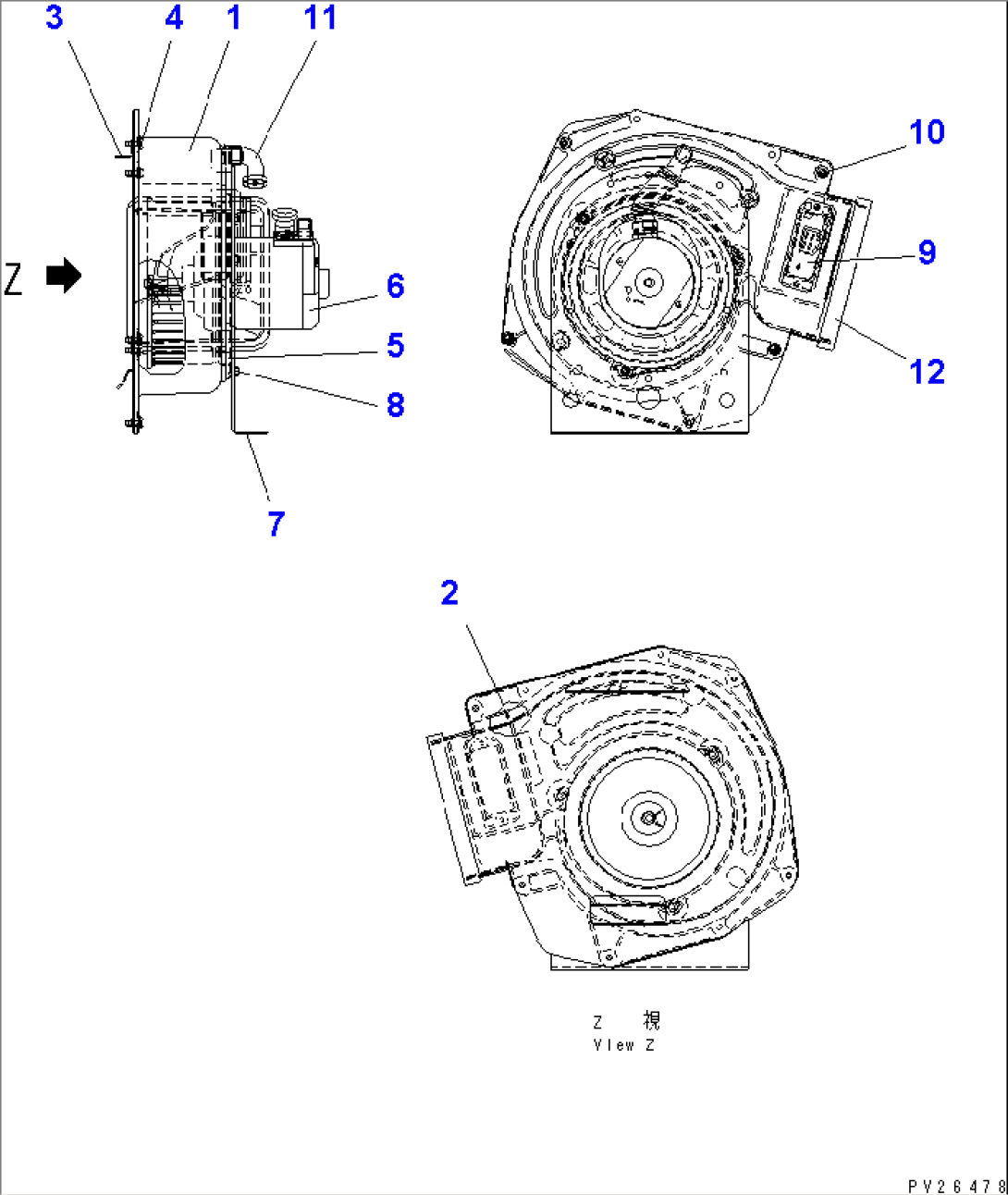

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0710-06A0 TO K0710-08A0. | ||||
| 567-07-73600 | BLOWER ASS'Y | 1001-1015 | ||
| 1 | ND116251-9192 | CASE | 1001-1015 | |
| 2 | ND146638-9460 | PACKING | 1001-1015 | |
| 3 | ND116290-0840 | FLANGE SUB ASS'Y | 1001-1015 | |
| 4 | ND949001-2690 | SCREW | 1001-1015 | |
| 5 | ND146622-6880 | PACKING | 1001-1015 | |
| 6 | ND116340-2890 | MOTOR ASS'Y | 1001-1015 | |
| 7 | ND116471-7271 | BRACKET | 1001-1015 | |
| 8 | ND949047-2370 | BOLT | 1001-1015 | |
| 9 | ND146810-9062 | RESISTOR,BLOWER | 1001-1015 | |
| 10 | ND90930-04121 | SCREW | 1001-1015 | |
| 11 | ND146651-1840 | PIPE | 1001-1015 | |
| 12 | ND146668-2040 | PACKING | 1001-1015 |
