| Item | Part No. | Part Name | Qty | Serial No. |
| (567-07-73412) | AIR CONDITIONER UNIT | 1042- | ||
| (567-07-73411) | AIR CONDITIONER UNIT | 1001-1041 | ||

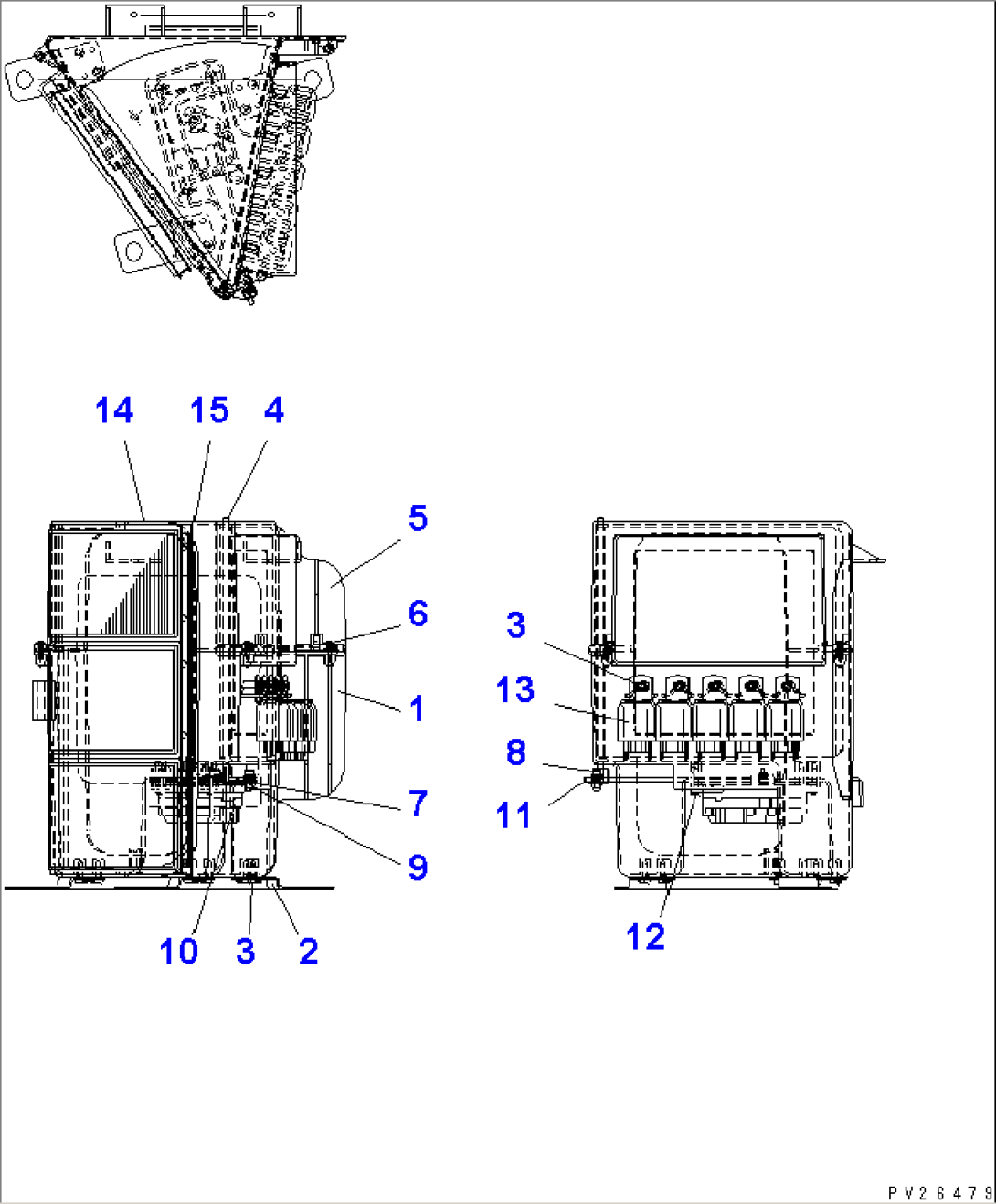

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0710-06A0 TO K0710-08A0. | ||||
| 567-07-73700 | BOX SUB ASS'Y | 1001- | ||
| 1 | ND017321-2971 | CASE | 1001- | |
| 2 | ND017361-0940 | PARTS,AIR DUCT | 1001- | |
| 3 | ND90930-05121 | SCREW | 1001- | |
| 4 | ND116650-6490 | DOOR ASS'Y | 1001- | |
| 5 | ND017321-2980 | CASE | 1001- | |
| 6 | ND949001-1730 | SCREW,TAPPING | 1001- | |
| 7 | ND017732-4610 | LEVER,CONTROL | 1001- | |
| 8 | ND246690-2930 | CLAMP | 1001- | |
| 9 | ND91370-03081 | SCREW | 1001- | |
| 10 | ND063700-6400 | SERVO MOTOR ASS'Y | 1001- | |
| 11 | ND116662-3840 | SHAFT | 1001- | |
| 12 | ND90930-05208 | SCREW | 1001- | |
| 13 | ND056700-8170 | RELAY ASS'Y | 1001- | |
| 14 | ND146668-2060 | PACKING | 1001- | |
| 15 | ND014520-0290 | FILTER SUB ASS'Y | 1001- |
