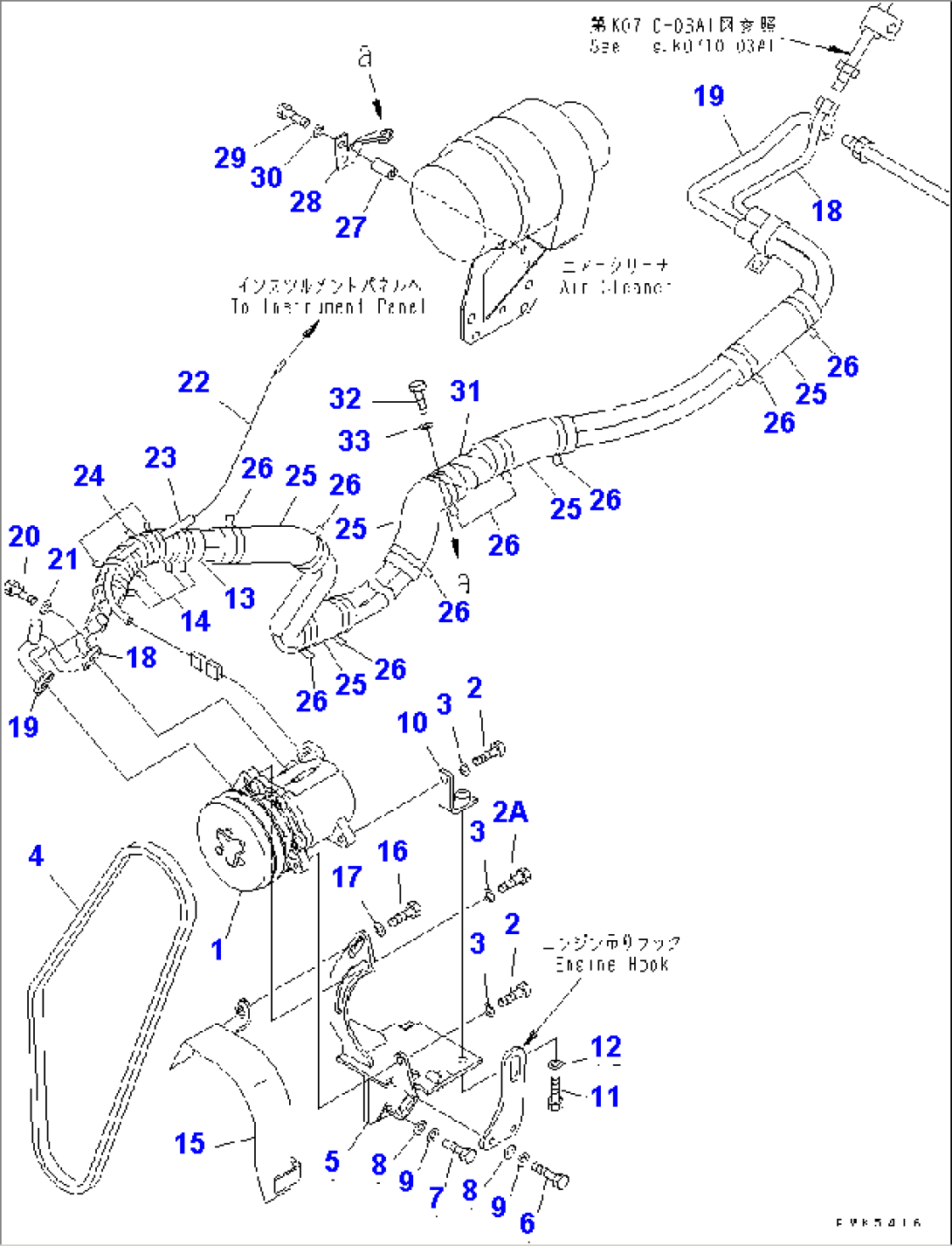

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 104-Y11-4320 | COMPRESSOR ASS'Y | 78604- | |
| 2 | 01010-81025 | BOLT | 80590- | |
| 01010-81025 | BOLT | 78604-80589 | ||
| 2A | 01010-81030 | BOLT | 80590- | |
| 3 | 01643-31032 | WASHER | 78604- | |
| 4 | 04120-21758 | V-BELT | 78604- | |
| 5 | 104-Y11-4212 | BRACKET | 80590- | |
| 104-Y11-4211 | BRACKET | 79750-80589 | ||
| 104-Y11-4210 | BRACKET | 78604-79749 | ||
| 6 | 01010-80825 | BOLT | 80590- | |
| 01010-80830 | BOLT | 78604-80589 | ||
| 7 | 01010-80825 | BOLT | 78604- | |
| 8 | 01643-30823 | WASHER | 78604- | |
| 9 | 01602-20825 | WASHER,SPRING | 78604- | |
| 10 | 104-Y11-4230 | BRACKET | 78604- | |
| 11 | 01010-81030 | BOLT | 80590- | |
| 01010-81025 | BOLT | 78604-80589 | ||
| 12 | 01643-31032 | WASHER | 78604- | |
| 13 | 104-Y11-1760 | TAPE | 78604-79849 | |
| 14 | 08034-00519 | BAND | 78604- | |
| 15 | 104-Y11-4221 | COVER | 79750- | |
| 104-Y11-4220 | COVER | 78604-79749 | ||
| 16 | 01010-80825 | BOLT | 80590- | |
| 01010-80820 | BOLT | 78604-80589 | ||
| 17 | 01643-30823 | WASHER | 78604- | |
| 18 | 104-Y11-4241 | TUBE,HÂ¥P | 80775- | |
| 104-Y11-4240 | HOSE | 78604-80774 | ||
| 19 | 104-Y11-4251 | TUBE,L.P | 80775- | |
| 104-Y11-4250 | HOSE | 78604-80774 | ||
| 20 | 01010-80625 | BOLT | 78604- | |
| 21 | 01643-30623 | WASHER | 78604- | |
| 22 | 104-Y11-4370 | WIRING HARNESS | 78604- | |
| 23 | 08017-32803 | CONDUIT | 78604- | |
| 24 | 08034-20823 | BAND | 78604- | |
| 25 | 203-62-41150 | COVER | 78604- | |
| 26 | 08034-00823 | BAND | 78604- | |
| 27 | 6162-23-5770 | SPACER | 80775- | |
| 28 | 104-Y11-4530 | BRACKET | 80775- | |
| 29 | 01010-80835 | BOLT | 80775- | |
| 30 | 01643-30823 | WASHER | 80775- | |
| 31 | 154-06-13780 | CLAMP | 80775- | |
| 32 | 01010-80816 | BOLT | 80775- | |
| 33 | 01643-30823 | WASHER | 80775- |
