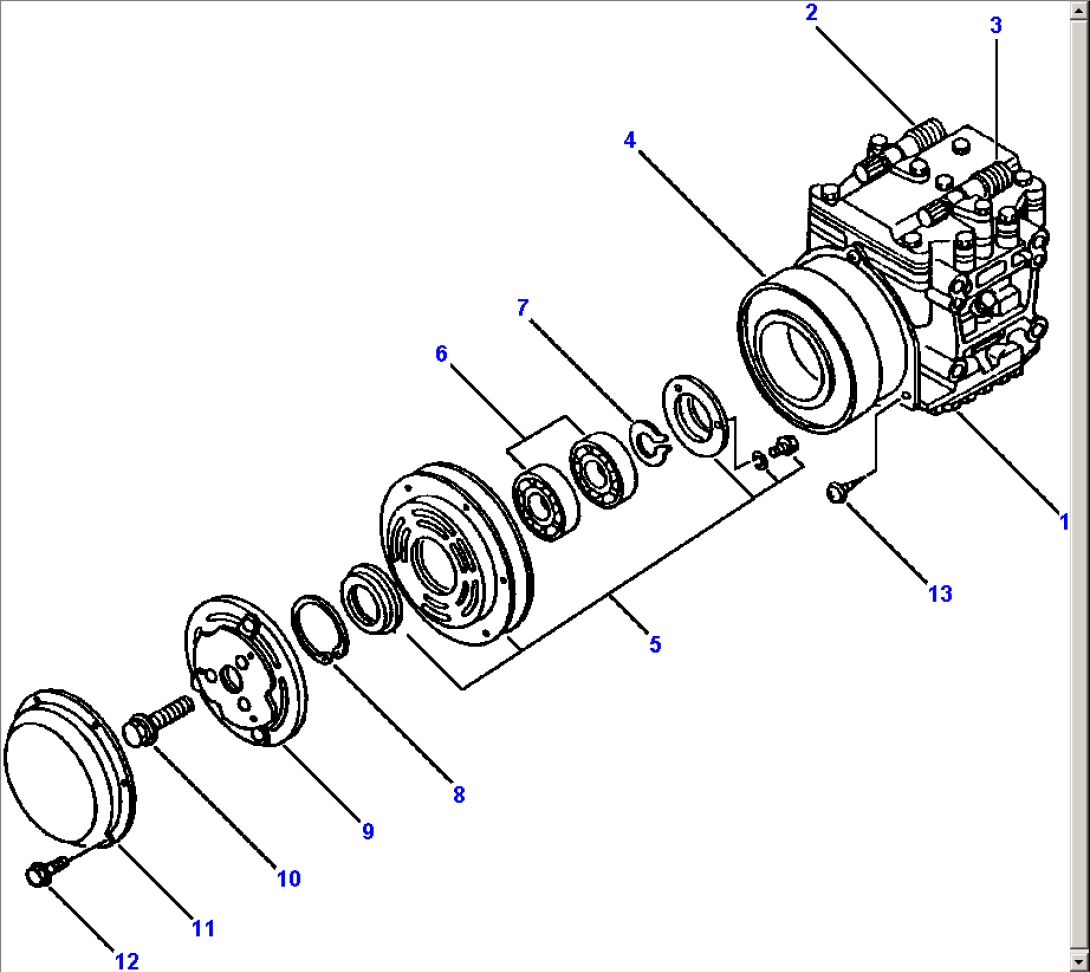

| Item | Part No. | Part Name | Qty | Serial No. |
| 195-Z11-5301 | COMPRESSOR AND MAGNETIC CLUTCH ASSEMBLY | |||
| 1 | 195-Z11-6330 | COMPRESSOR, AIR CONDITIONER | ||
| 2 | 198-911-4750 | VALVE, SUCTION | ||
| 3 | 198-911-4760 | VALVE, DISCHARGE | ||
| 195-Z11-6340 | MAGNETIC CLUTCH ASSEMBLY | |||
| 4 | 195-Z11-7320 | STATOR | ||
| 5 | 195-Z11-7330 | ROTOR ASSEMBLY | ||
| 6 | 195-Z11-7360 | BEARING | ||
| 7 | 04064-03015 | RING, SNAP | ||
| 8 | 195-Z11-7340 | RING, SNAP | ||
| 9 | 145-Z79-6160 | HUB | ||
| 10 | 195-Z11-7370 | BOLT, HUB MOUNTING | ||
| 11 | 195-Z11-7380 | COVER | ||
| 12 | 195-Z11-7390 | BOLT, COVER | ||
| 13 | 01220-40510 | SCREW, STATOR MOUNTING |
