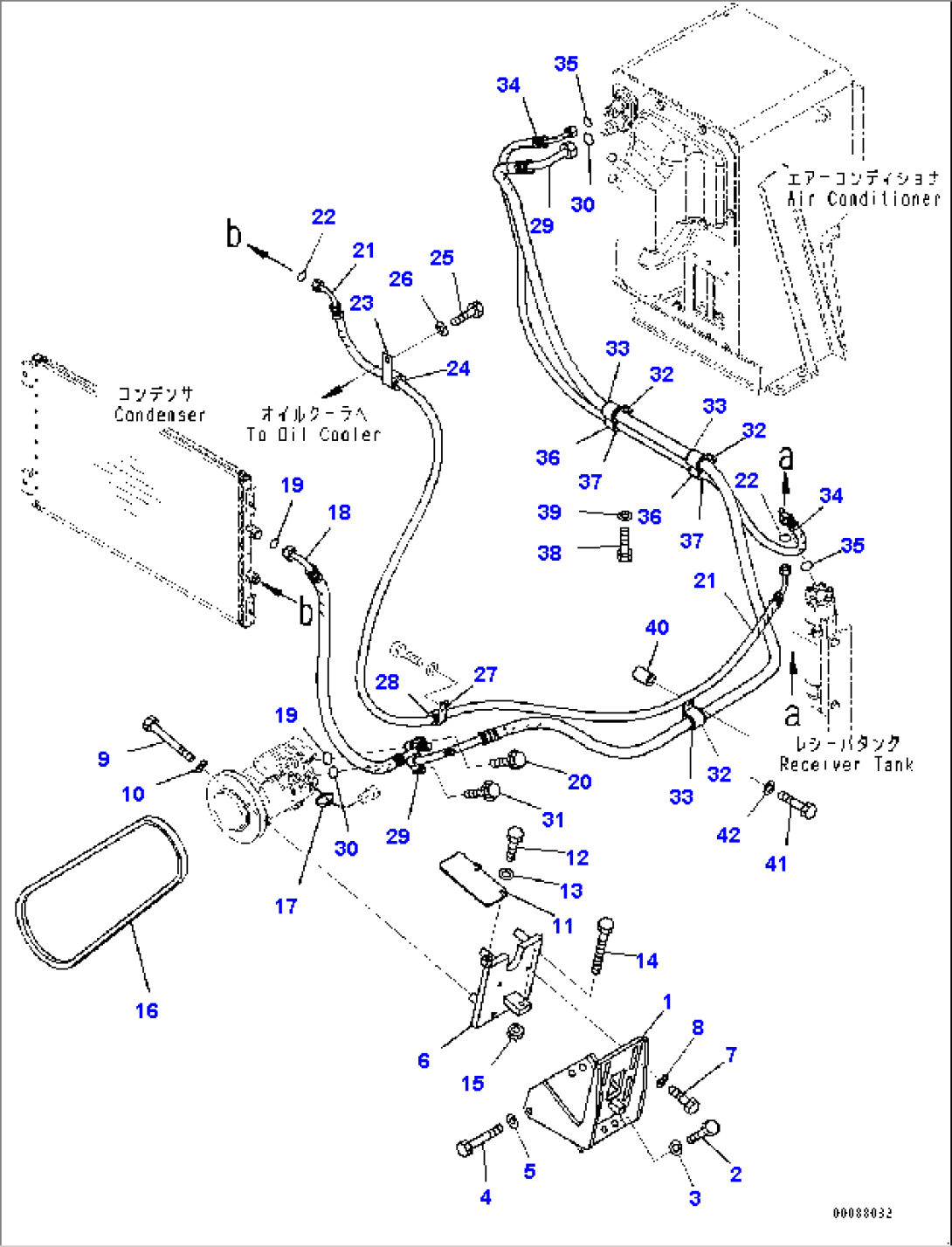

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-Z11-7112 | Bracket | 1006- | |
| 2 | 01010-81030 | Bolt | 1006- | |
| 3 | 01643-31032 | Washer | 1006- | |
| 4 | 01010-81085 | Bolt | 1006- | |
| 5 | 01643-31032 | Washer | 1006- | |
| 6 | 154-Z11-7122 | Bracket | 1006- | |
| 7 | 01010-81030 | Bolt | 1006- | |
| 8 | 01643-31032 | Washer | 1006- | |
| 9 | 01010-80875 | Bolt | 1006- | |
| 10 | 01643-30823 | Washer | 1006- | |
| 11 | 154-Z11-7140 | Cover | 1006- | |
| 12 | 01010-80816 | Bolt | 1006- | |
| 13 | 01643-30823 | Washer | 1006- | |
| 14 | 130-Z79-1740 | Bolt | 1006- | |
| 15 | 01580-11008 | Nut | 1006- | |
| 16 | 04120-21756 | V-belt | 1006- | |
| 17 | 08034-20519 | Band | 1006- | |
| 18 | 154-969-7370 | Hose | 1006- | |
| 19 | 20Y-979-3140 | O-ring | 1006- | |
| 20 | 01435-00630 | Bolt | 1006- | |
| 21 | 154-911-7431 | Hose | 1006- | |
| 22 | 20Y-979-3150 | O-ring | 1006- | |
| 23 | 04434-52112 | Clip | 1006- | |
| 24 | 07095-20314 | Cushion | 1006- | |
| 25 | 01010-81230 | Bolt | 1006- | |
| 26 | 01643-31232 | Washer | 1006- | |
| 27 | 04434-52112 | Clip | 1006- | |
| 28 | 07095-20314 | Cushion | 1006- | |
| 29 | 154-911-7441 | Hose | 1006- | |
| 30 | 20Y-979-3130 | O-ring | 1006- | |
| 31 | 01435-00630 | Bolt | 1006- | |
| 32 | 04434-52712 | Clip | 1006- | |
| 33 | 07095-20420 | Cushion | 1006- | |
| 34 | 154-911-7411 | Hose | 1006- | |
| 35 | 20Y-979-3150 | O-ring | 1006- | |
| 36 | 04434-52112 | Clip | 1006- | |
| 37 | 07095-20314 | Cushion | 1006- | |
| 38 | 01010-81230 | Bolt | 1006- | |
| 39 | 01643-31232 | Washer | 1006- | |
| 40 | 581-60-17860 | Spacer | 1006- | |
| 41 | 01011-81210 | Bolt | 1006- | |
| 42 | 01643-31232 | Washer | 1006- |
