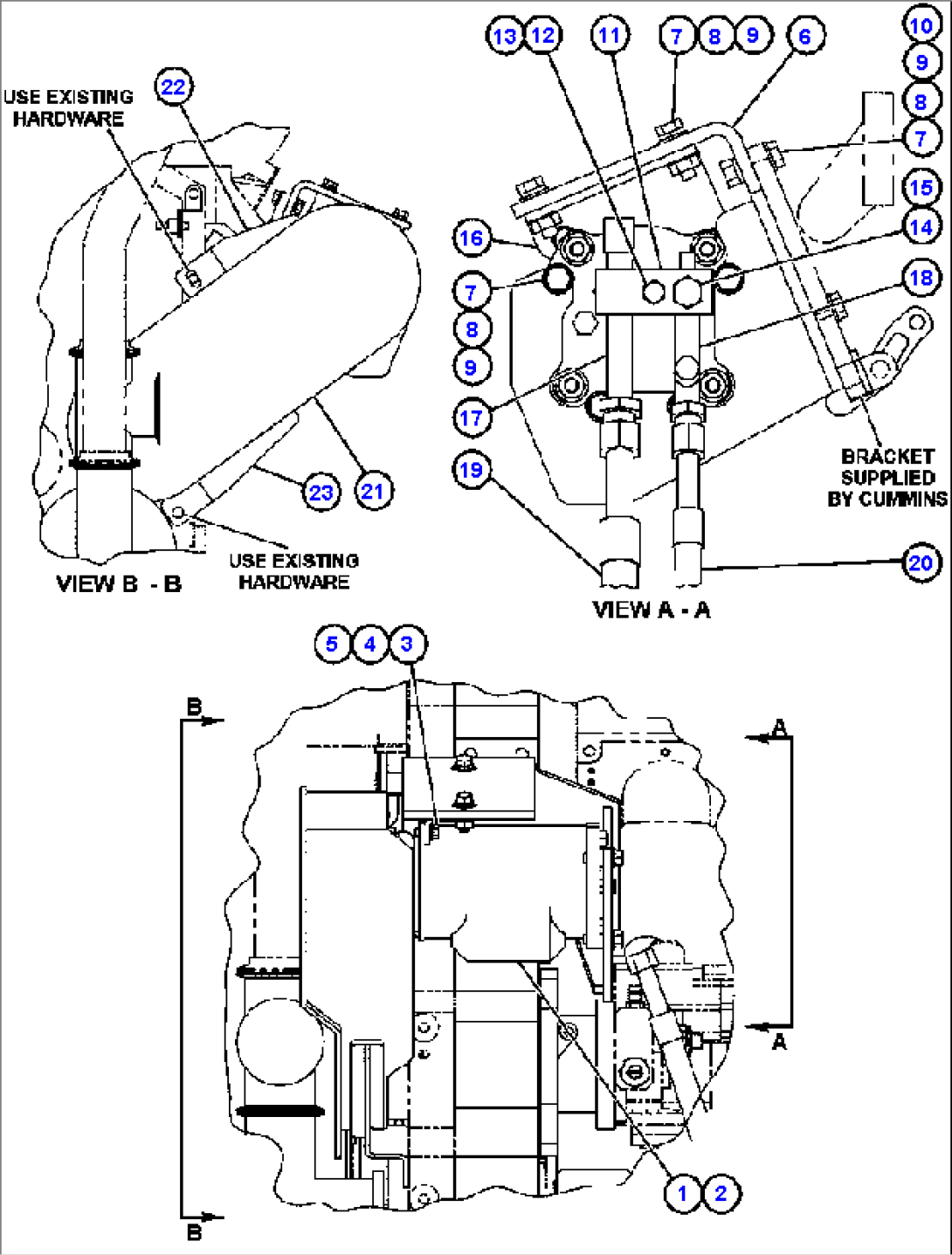

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC0454 | COMPRESSOR, A/C | ||
| 1 | XA0039 | PULLEY W/BEARING | ||
| 1 | XA0040 | COIL - 24 VOLT | ||
| 1 | XA0041 | CLUTCH W/KEY | ||
| 1 | BF2900 | CLUTCH PLATE W/HUB | ||
| 1 | BF2948 | LOCKNUT, SHAFT | ||
| 2 | PC0464 | V-BELT | ||
| 3 | MM0593 | CAPSCREW - M8 X 1.25 X 20 | ||
| 4 | MM0460 | FLAT WASHER - M8 | ||
| 5 | MM0470 | LOCKWASHER - M8 | ||
| 6 | EH3660 | MOUNT | ||
| 7 | MM0607 | CAPSCREW - M10 X 1.50 X 35 | ||
| 8 | MM0461 | FLAT WASHER - M10 | ||
| 9 | MM0471 | LOCKWASHER - M10 | ||
| 10 | MM0178 | NUT - M10 X 1.50 | ||
| 10 | EJ1087 | ADJUSTABLE HOLD DOWN ASSEMBLY | ||
| 11 | EJ1068 | PLATE W/HOLES | ||
| 12 | MM0611 | CAPSCREW - M10 X 1.50 X 60 | ||
| 13 | MM0713 | FLAT WASHER - M10 | ||
| 14 | MM0618 | CAPSCREW - M12 X 1.75 X 30 | ||
| 15 | MM0179 | NUT - M12 X 1.75 | ||
| 16 | EH3653 | BRACKET | ||
| 17 | PB9153 | FITTING ASSEMBLY | ||
| 18 | PB9152 | FITTING ASSEMBLY | ||
| 19 | HA7553 | HOSE (SEE REF. NO.8 ON PRECEDING PAGE) | ||
| 20 | HA7675 | HOSE (SEE REF. NO.6 ON PRECEDING PAGE) | ||
| 21 | EH3655 | GUARD | ||
| 22 | EH4375 | PLATE | ||
| 23 | EH4374 | PLATE |
