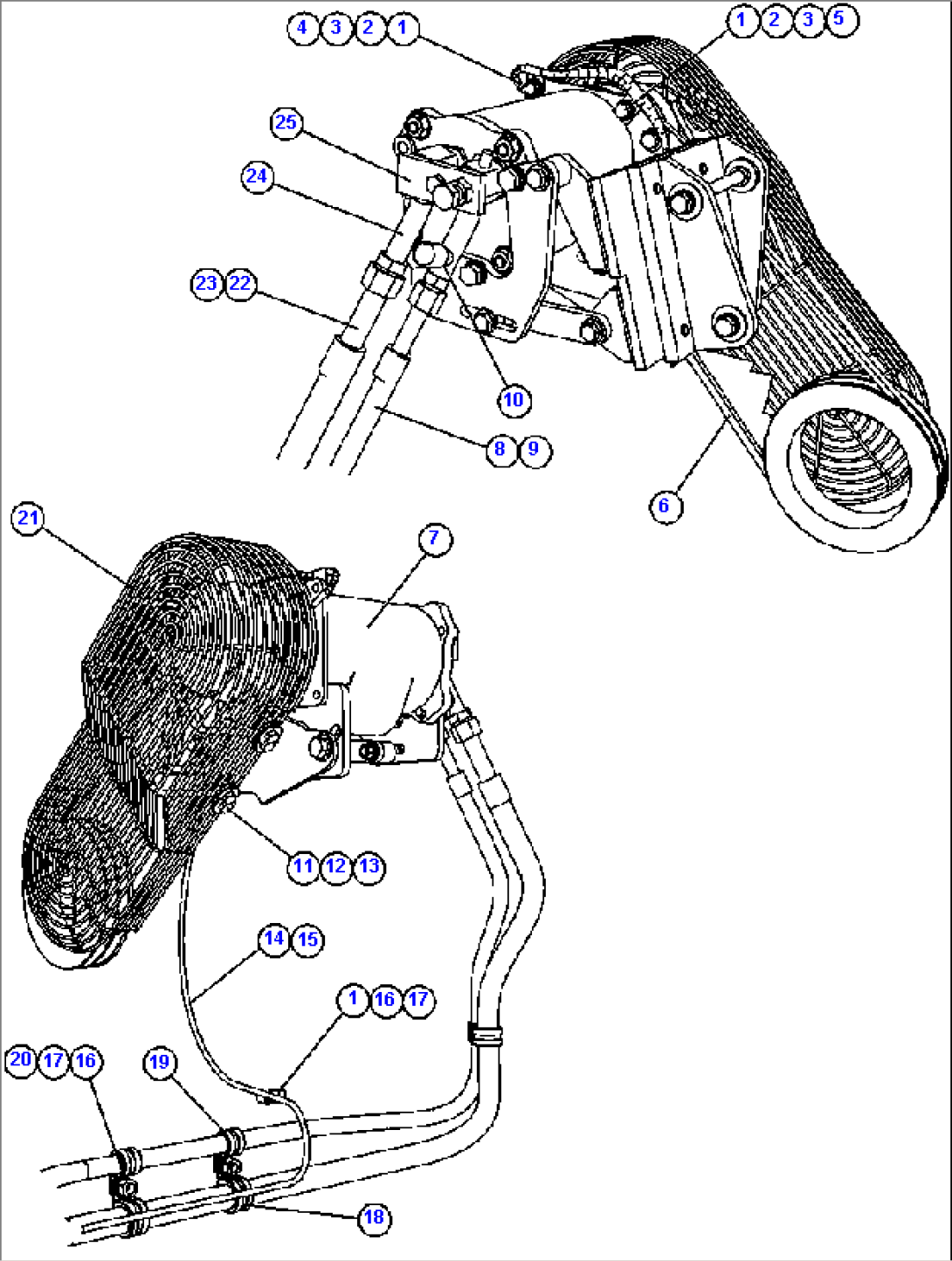

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VY8331 | CLAMP, VINYL - 1/4" | ||
| 2 | MM0460 | FLAT WASHER - M8 | ||
| 3 | MM0470 | LOCKWASHER - M8 | ||
| 4 | MM0590 | CAPSCREW - M8 X 1.25 X 12 | ||
| 5 | MM0593 | CAPSCREW - M8 X 1.25 X 20 | ||
| 6 | PC0556 | V-BELT | ||
| 7 | PC1848 | COMPRESSOR, AIR CONDITIONING | ||
| 8 | HA7185 | HOSE | ||
| 9 | WA1732 | O-RING - 7/16" | ||
| 10 | PB9152 | FITTING | ||
| 11 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 12 | C1547 | FLAT WASHER - 3/8" | ||
| 13 | PC1119 | WASHER, RUBBER | ||
| 14 | EL4304 | HARNESS, AIR CONDITIONER | ||
| 15 | VZ4843 | TYRAP | ||
| 16 | MM0178 | NUT - M10 X 1.50 | ||
| 17 | MM0471 | LOCKWASHER - M10 | ||
| 18 | WB3093 | CLAMP, CUSHION - 1" | ||
| 19 | WB1304 | CLAMP, CUSHION - 9/16" | ||
| 20 | MM0461 | FLAT WASHER - M10 | ||
| 21 | EL4735 | GUARD, A/C BELT | ||
| 22 | HA8071 | HOSE | ||
| 23 | WA1733 | O-RING - 9/16" | ||
| 24 | PC1831 | FITTING | ||
| 25 | EJ1087 | ADJUSTABLE HOLD-DOWN ASSEMBLY (SEE INDEX) |
