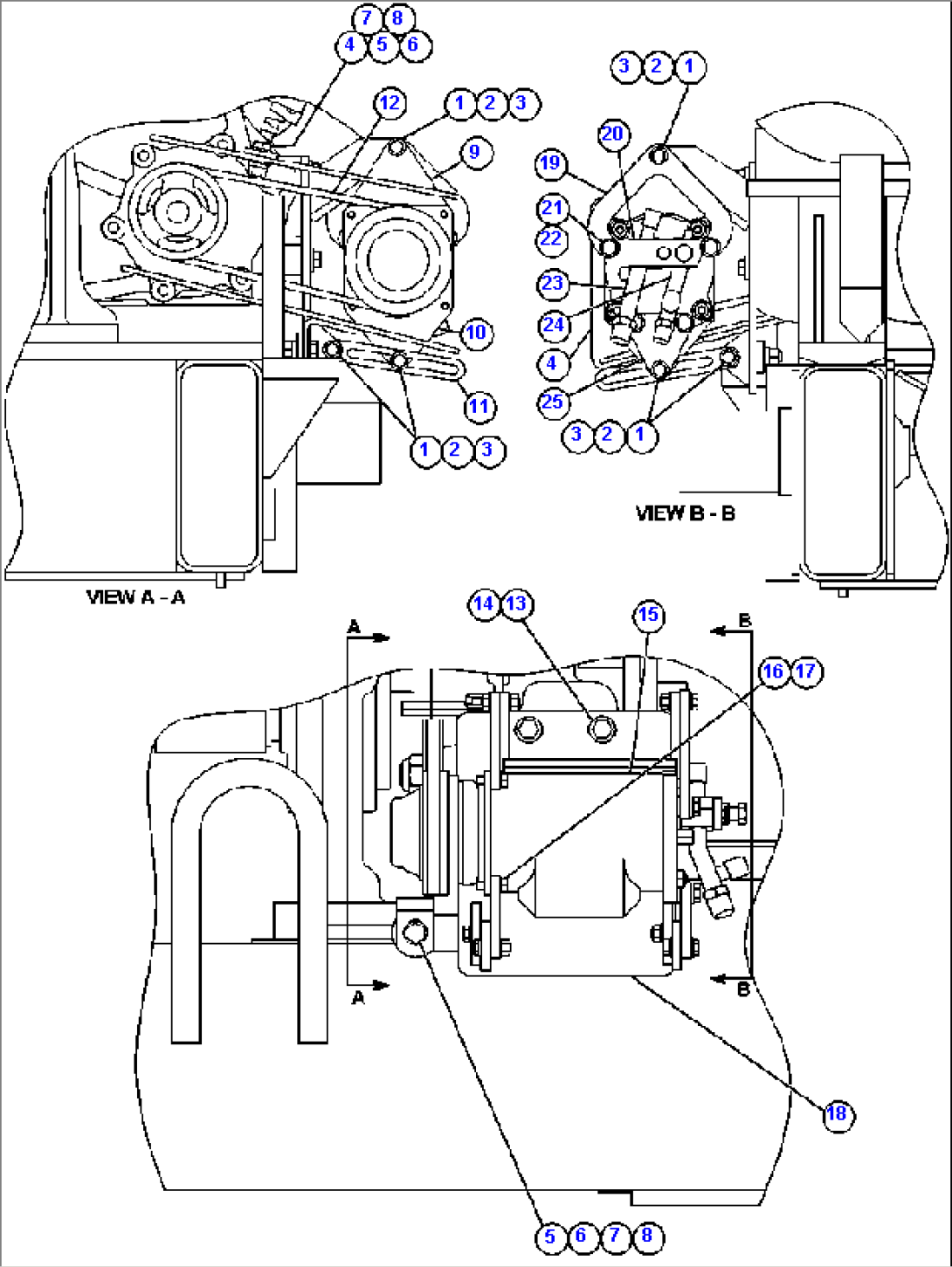

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 2 | WA0720 | FLAT WASHER - 3/8" | ||
| 3 | C1521 | NUT - 3/8" | ||
| 4 | EG8714 | GUARD, BELT | ||
| 5 | MM0039 | CAPSCREW - M12 X 1.75 X 35 | ||
| 6 | MM0462 | FLAT WASHER - M12 | ||
| 7 | MM0472 | LOCKWASHER - M12 | ||
| 8 | MM0179 | NUT | ||
| 9 | ED7063 | MOUNTING, FRONT BRACKET | ||
| 10 | ED7060 | BRACKET, ADJUSTING - FRONT | ||
| 11 | EG8711 | LINK, ADJUSTING | ||
| 12 | PC0056 | BELT, A/C COMPRESSOR | ||
| 13 | MM0032 | CAPSCREW - M8 X 1.75 X 30 | ||
| 14 | MM0705 | FLAT WASHER - M12 | ||
| 15 | PB9288 | COMPRESSOR, A/C | ||
| 16 | MM0026 | CAPSCREW - M8 X 1.25 X 25 | ||
| 17 | MM0470 | LOCKWASHER - M8 | ||
| 18 | EG8715 | MOUNTING | ||
| 19 | EG8710 | MOUNTING, REAR BRACKET | ||
| 20 | PB8730 | HOLD DOWN, ADJUSTABLE | ||
| 21 | MM0704 | FLAT WASHER - M10 (HARDENED) | ||
| 22 | MM0047 | CAPSCREW - M10 X 1.50 X 30 | ||
| 23 | PB9153 | FITTING ASSEMBLY | ||
| 24 | PB9152 | FITTING ASSEMBLY | ||
| 25 | ED7061 | BRACKET, ADJUSTING - REAR |
