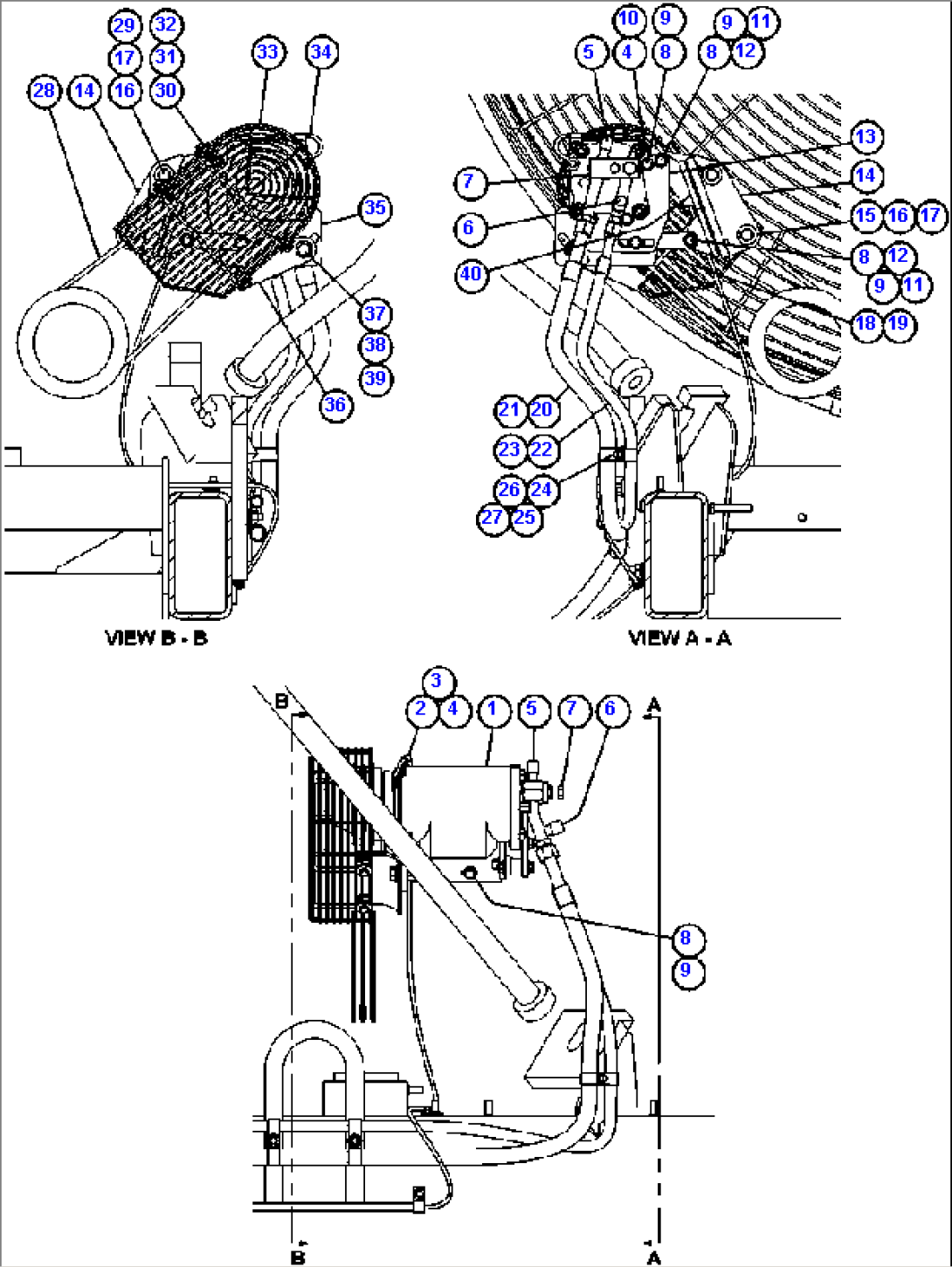

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC0454 | AIR COMPRESSOR ASSEMBLY | ||
| 1 | BF2900 | CLUTCH PLATE & HUB | ||
| 1 | BF2948 | LOCKNUT, SHAFT | ||
| 1 | XA0039 | PULLEY W/BEARING | ||
| 1 | XA0040 | COIL - 24 VOLT | ||
| 1 | XA0041 | CLUTCH W/KEY | ||
| 2 | VY8331 | CLAMP - 1/4" I.D. | ||
| 3 | R3868 | CAPSCREW - 5/16" - 18NC X 1/2" | ||
| 4 | WA0723 | FLAT WASHER - 5/16" (HARDENED) | ||
| 5 | PB9153 | FITTING ASSEMBLY | ||
| 6 | PB9152 | FITTING ASSEMBLY | ||
| 7 | EJ1087 | HOLD-DOWN, ADJUSTABLE (SEE INDEX) | ||
| 8 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 9 | TR4436 | FLAT WASHER - 3/8" | ||
| 10 | C7568 | CAPSCREW - 5/16" - 24NF X 1" | ||
| 11 | C1606 | CAPSCERW - 3/8" - 16NC X 2" | ||
| 12 | C1521 | NUT - 3/8" - 16NC | ||
| 13 | EF0317 | BRACKET | ||
| 14 | EK2844 | BRACKET | ||
| 15 | H0594 | CAPSCREW - 7/16" - 14NC X 1 1/4" | ||
| 16 | PB1255 | FLAT WASHER - 7/16" (HARDENED) | ||
| 17 | C5775 | LOCKWASHER - 7/16" | ||
| 18 | EF0320 | LINK | ||
| 19 | EF0321 | LINK | ||
| 20 | HA7882 | HOSE (COMPRESSOR TO CAB EVAPORATOR) | ||
| 21 | WA1733 | O-RING - 9/16" I.D. | ||
| 22 | HA7185 | HOSE (COMPRESSOR TO CONDENSOR) | ||
| 23 | WA1732 | O-RING - 7/16 I.D. | ||
| 24 | TF6925 | CLAMP - 3/4" I.D. | ||
| 25 | VN9908 | CLAMP - 1" I.D. | ||
| 26 | MM0461 | FLAT WASHER - M10 | ||
| 27 | MM0178 | NUT - M10 X 1.50 | ||
| 28 | PC1378 | V-BELT | ||
| 29 | VJ9187 | SLEEVE | ||
| 30 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 31 | C1547 | FLAT WASHER - 3/8" | ||
| 32 | PC1119 | WASHER, RUBBER | ||
| 33 | EJ7835 | GUARD, A/C BELT | ||
| 34 | EK3388 | HARNESS | ||
| 35 | EF0316 | BRACKET | ||
| 36 | EK2839 | GUARD | ||
| 37 | C1614 | CAPSCREW - 1/2" - 13NC X 1 1/2" | ||
| 38 | WA4728 | FLAT WASHER - 1/2" (HARDENED) | ||
| 39 | C1523 | NUT - 1/2" - 13NC | ||
| 40 | EF0314 | PLATE, MOUNTING |
