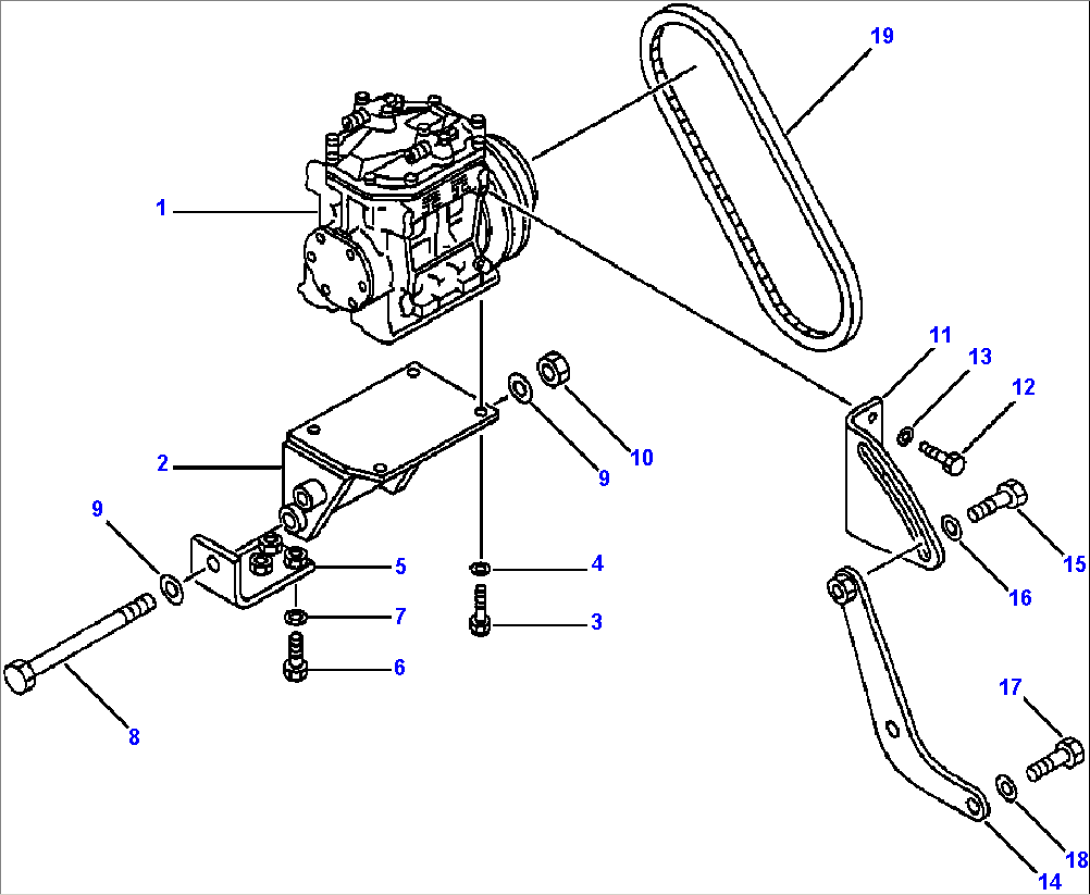

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | COMPRESSOR ASSEMBLY (SEE PG 05-122) | |||
| 2 | 425-963-1241 | BRACKET | ||
| 3 | 01010-50835 | BOLT | ||
| 4 | 01643-30823 | WASHER | ||
| 5 | 425-07-11881 | BRACKET | ||
| 6 | 01010-51035 | BOLT | ||
| 7 | 01643-31032 | WASHER | ||
| 8 | 01011-31260 | BOLT | ||
| 9 | 01643-31232 | WASHER | ||
| 10 | 01580-11210 | NUT | ||
| 11 | 425-T46-1220 | PLATE | ||
| 12 | 01010-50820 | BOLT | ||
| 13 | 01643-30823 | WASHER | ||
| 14 | 425-T46-1210 | PLATE | ||
| 15 | 01010-51230 | BOLT | ||
| 16 | 01643-31232 | WASHER | ||
| 17 | 01010-51025 | BOLT | ||
| 18 | 01643-31032 | WASHER | ||
| 19 | 04120-21733 | V-BELT |
