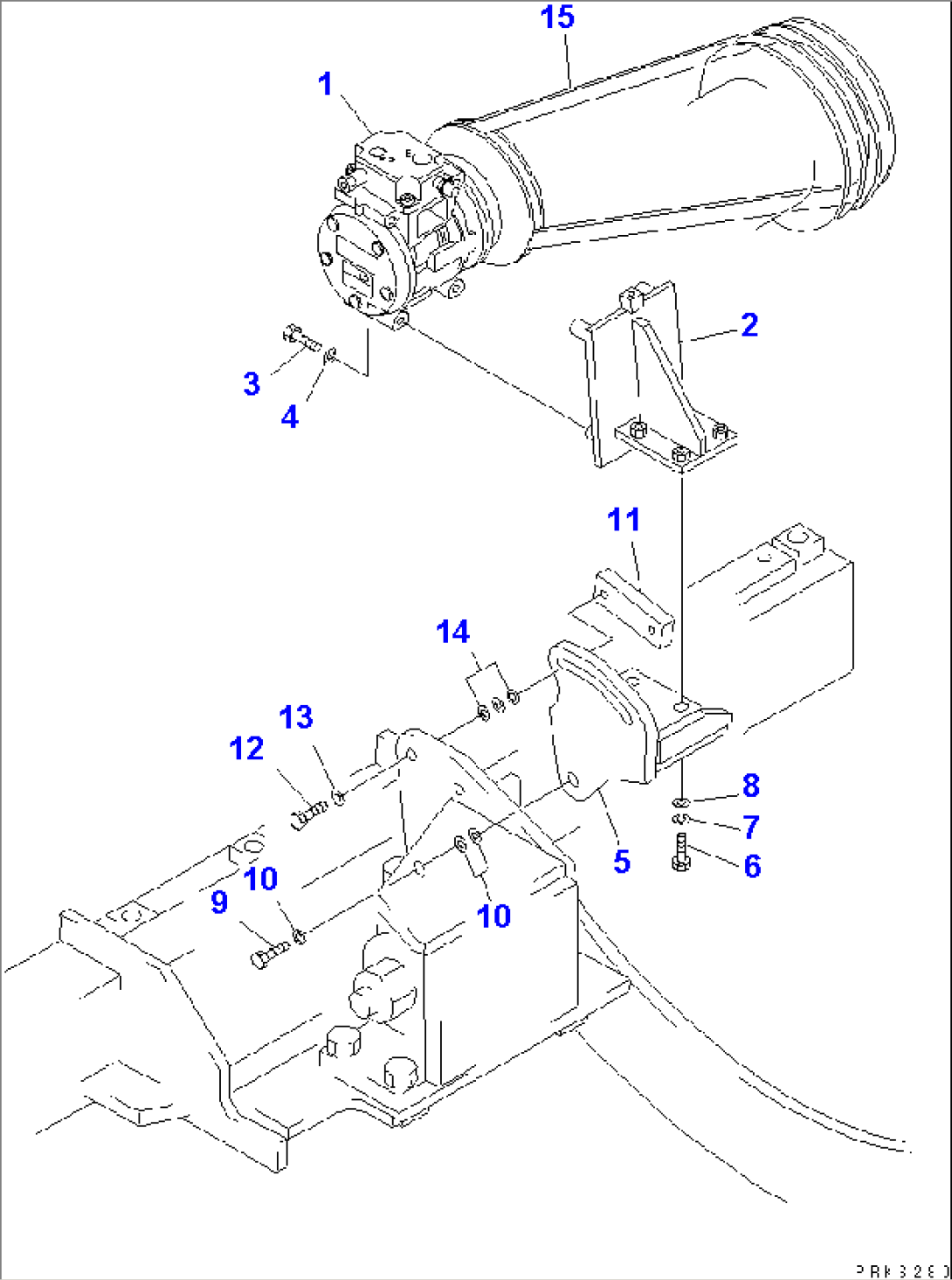

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (20Y-979-3111) | AIR COMPRESSOR ASS'Y | 2012- | |
| (198-911-4500) | COMPRESSOR ASS'Y | 1001-2011 | ||
| 2 | 142-979-3424 | BRACKET | 2012- | |
| 142-979-3423 | BRACKET | 1911-2011 | ||
| \0\142-979-3422 | BRACKET | 1001-1910 | ||
| 3 | 01010-80890 | BOLT | 2012- | |
| 01010-50820 | BOLT | 1001-2011 | ||
| 4 | 01602-20825 | WASHER,SPRING | 1001- | |
| 5 | 142-979-3411 | BRACKET | 1001- | |
| 6 | 01010-81030 | BOLT | 1001- | |
| 7 | 01602-21030 | WASHER,SPRING | 1001- | |
| 8 | 01643-31032 | WASHER | 1001- | |
| 9 | 01010-81455 | BOLT | 1001- | |
| 10 | 01643-31445 | WASHER | 1001- | |
| 11 | 01573-20208 | SEAT | 1001- | |
| 12 | 01010-81050 | BOLT | 1001- | |
| 13 | 01602-21030 | WASHER,SPRING | 1001- | |
| 14 | 01643-31032 | WASHER | 1001- | |
| 15 | 04120-21761 | V-BELT | 2012- | |
| 04120-21759 | V-BELT | 1001-2011 |
