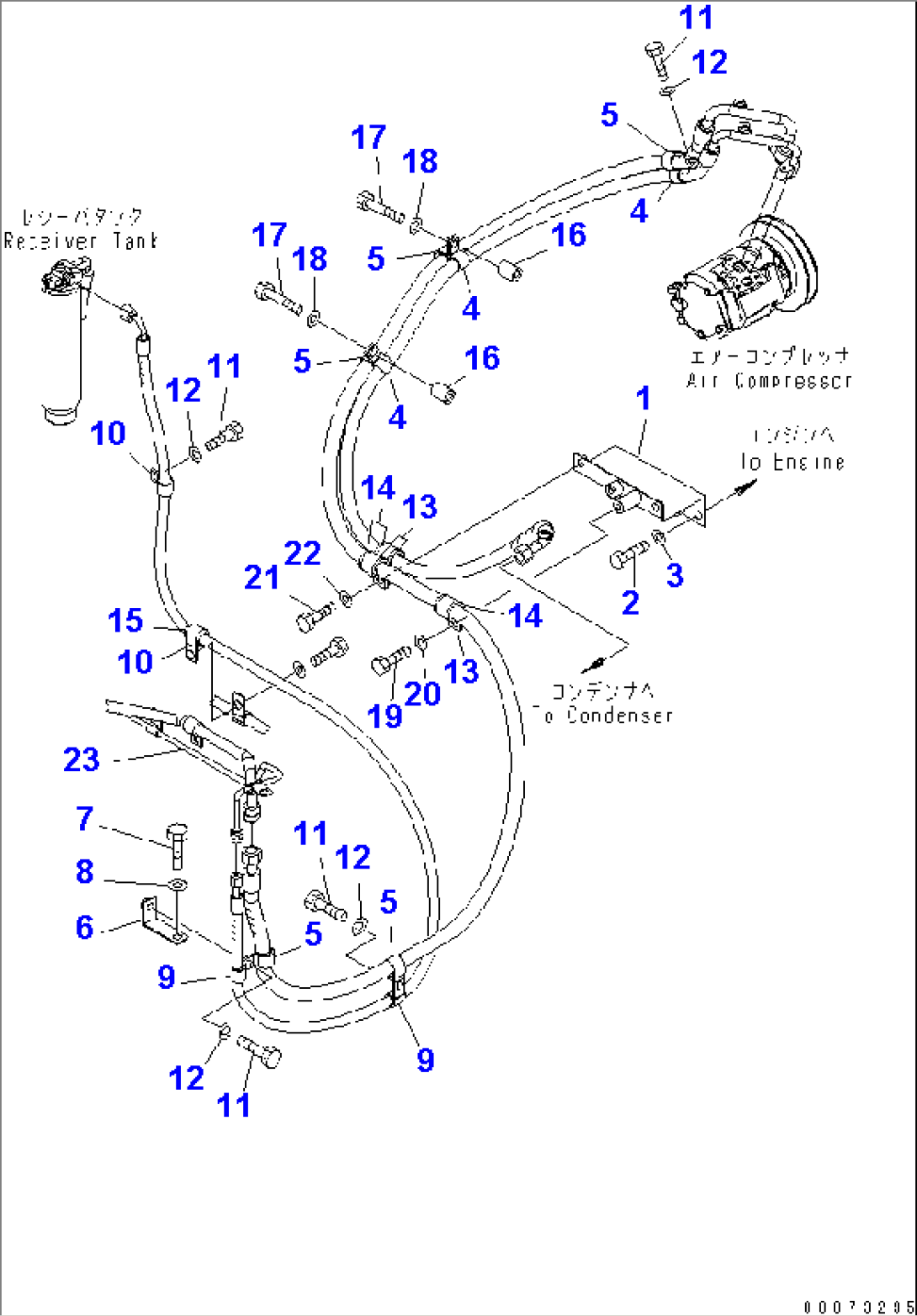

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-07-32113 | BRACKET | A89001- | |
| 2 | 01010-81220 | BOLT | A89001- | |
| 3 | 01643-31232 | WASHER | A89001- | |
| 4 | 04434-51912 | CLIP | A89001- | |
| 5 | 04434-52112 | CLIP | A89001- | |
| 6 | 417-07-22380 | PLATE | A89001- | |
| 7 | 01010-81020 | BOLT | A89001- | |
| 8 | 01643-31032 | WASHER | A89001- | |
| 9 | 04434-51612 | CLIP | A89001- | |
| 10 | 04434-52112 | CLIP | A89001- | |
| 11 | 01010-81025 | BOLT | A89001- | |
| 12 | 01643-31032 | WASHER | A89001- | |
| 13 | 04434-52712 | CLIP | A89001- | |
| 14 | 07095-20420 | CUSHION | A89001- | |
| 15 | 07095-20314 | CUSHION | A89001- | |
| 16 | 6167-21-5910 | SPACER | A89001- | |
| 17 | 01010-81050 | BOLT | A89001- | |
| 18 | 01643-31032 | WASHER | A89001- | |
| 19 | 01010-81060 | BOLT | A89001- | |
| 20 | 01643-31032 | WASHER | A89001- | |
| 21 | 01010-81025 | BOLT | A89001- | |
| 22 | 01643-31032 | WASHER | A89001- | |
| 23 | TUBE,(SEE FIG. K0210-09A0) | A89001- |
