| Item | Part No. | Part Name | Qty | Serial No. |
| 203-979-6580 | COMPRESSOR ASS'Y | 45001- | ||
| TW7001-0030 | COMPRESSOR | 45001- | ||
| 1 | \6\ | COMPRESSOR | 45001- | |
| 2 | TW7001-0090 | CLUTCH ASS'Y | 45001- | |
| 3 | TW7024-0050 | COVER | 45001- | |
| 4 | TW7028-0090 | BOLT | 45001- | |
| 5 | TW7028-0100 | WASHER | 45001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D31p 20t s/n 45001 up (trimming dozer)
- Operator's compartment and control system
- Air conditioner compressor unit
Поиск по каталогу

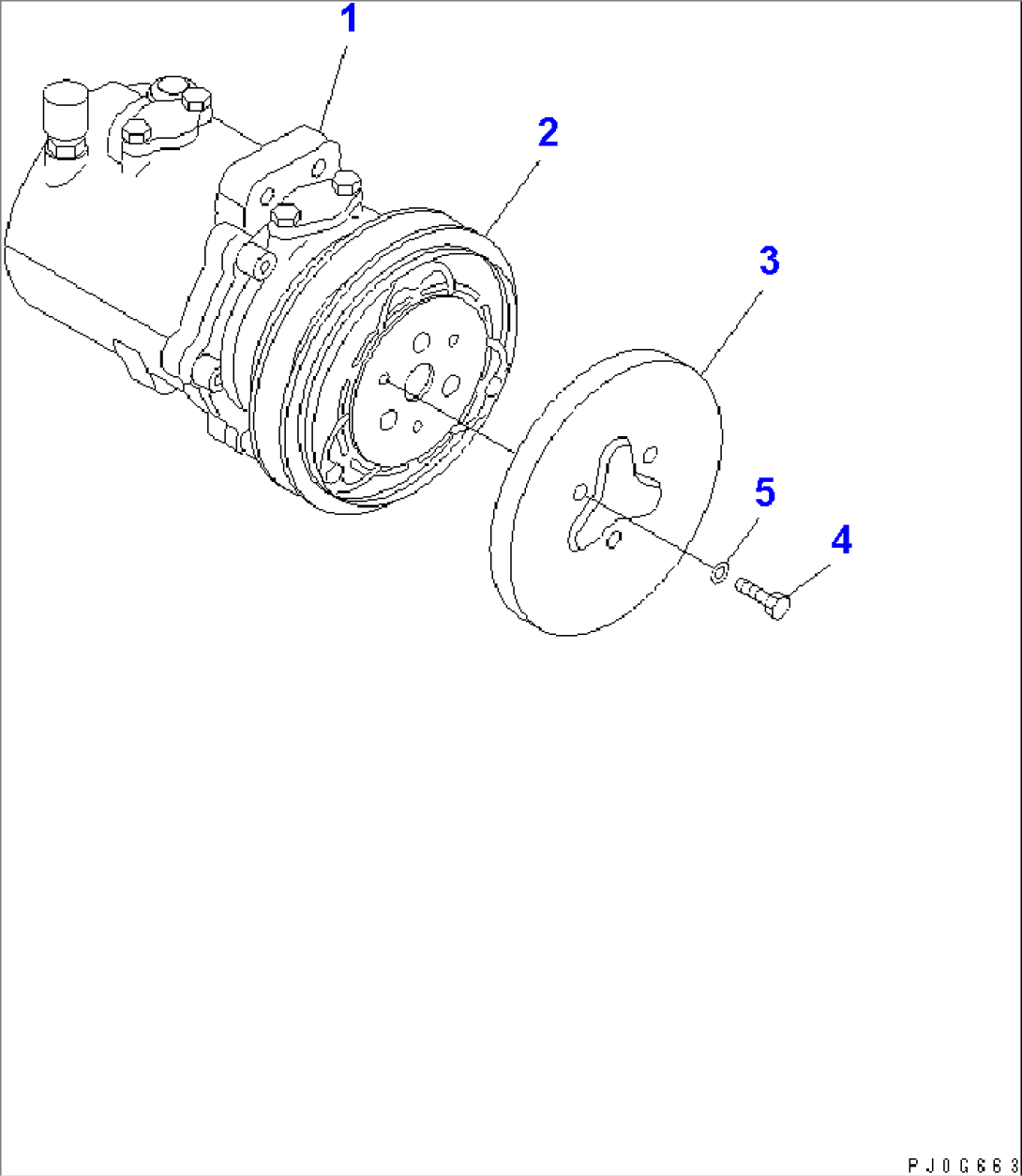

AIR CONDITIONER COMPRESSOR UNIT
