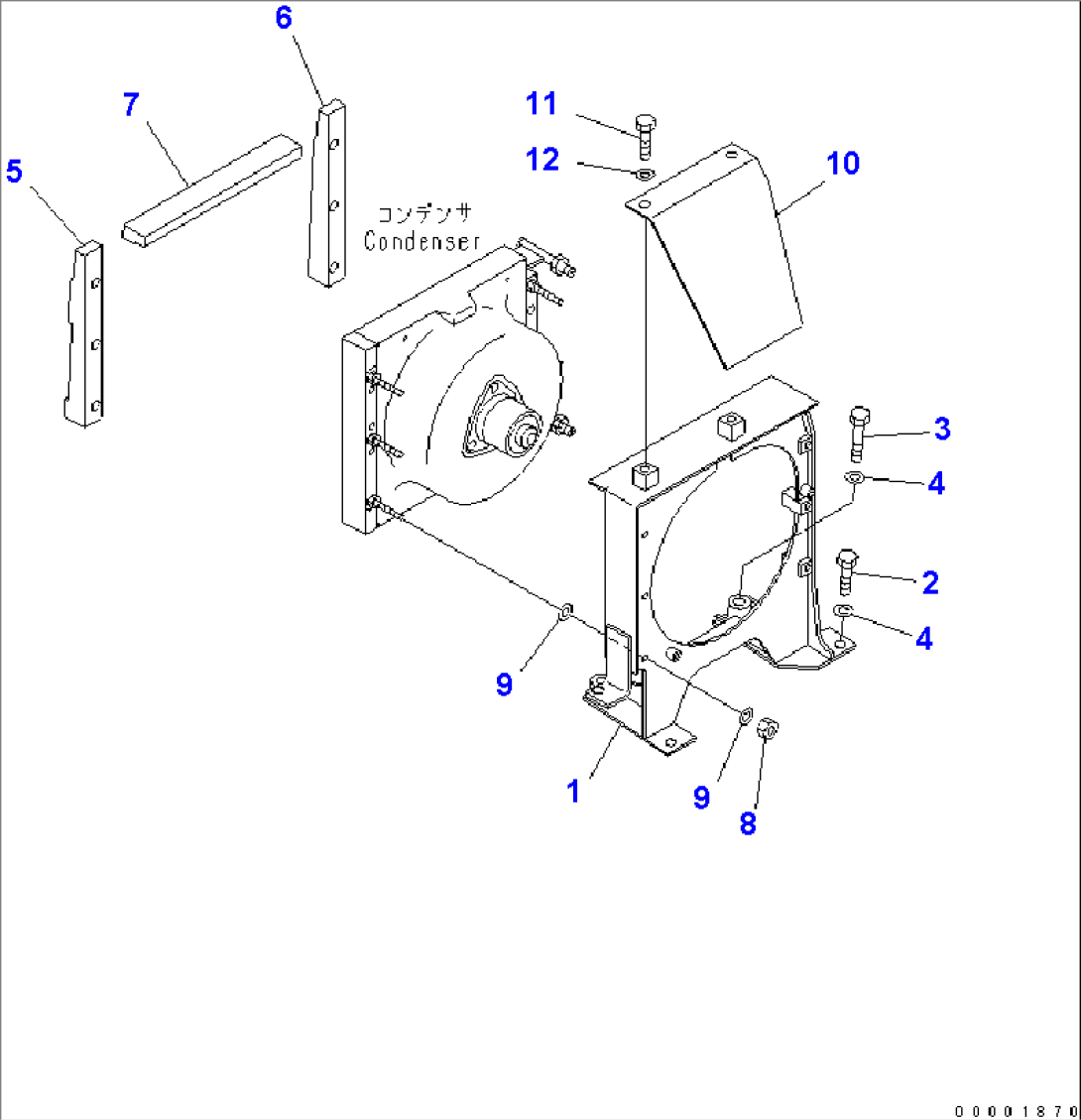

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-X11-1422 | BRACKET | B3001- | |
| 2 | 01010-81225 | BOLT | B3001- | |
| 3 | 01010-81250 | BOLT | B3001- | |
| 4 | 01643-31232 | WASHER | B3001- | |
| 5 | 134-X11-1681 | SHEET | B3001- | |
| 6 | 134-X11-1691 | SHEET | B3001- | |
| 7 | 134-X11-1730 | SHEET | B3001- | |
| 8 | 01580-10806 | NUT | B3001- | |
| 9 | 01643-30823 | WASHER | B3001- | |
| 10 | 12G-911-1350 | COVER | B3001- | |
| 11 | 01010-81220 | BOLT | B3001- | |
| 12 | 01643-31232 | WASHER | B3001- |
