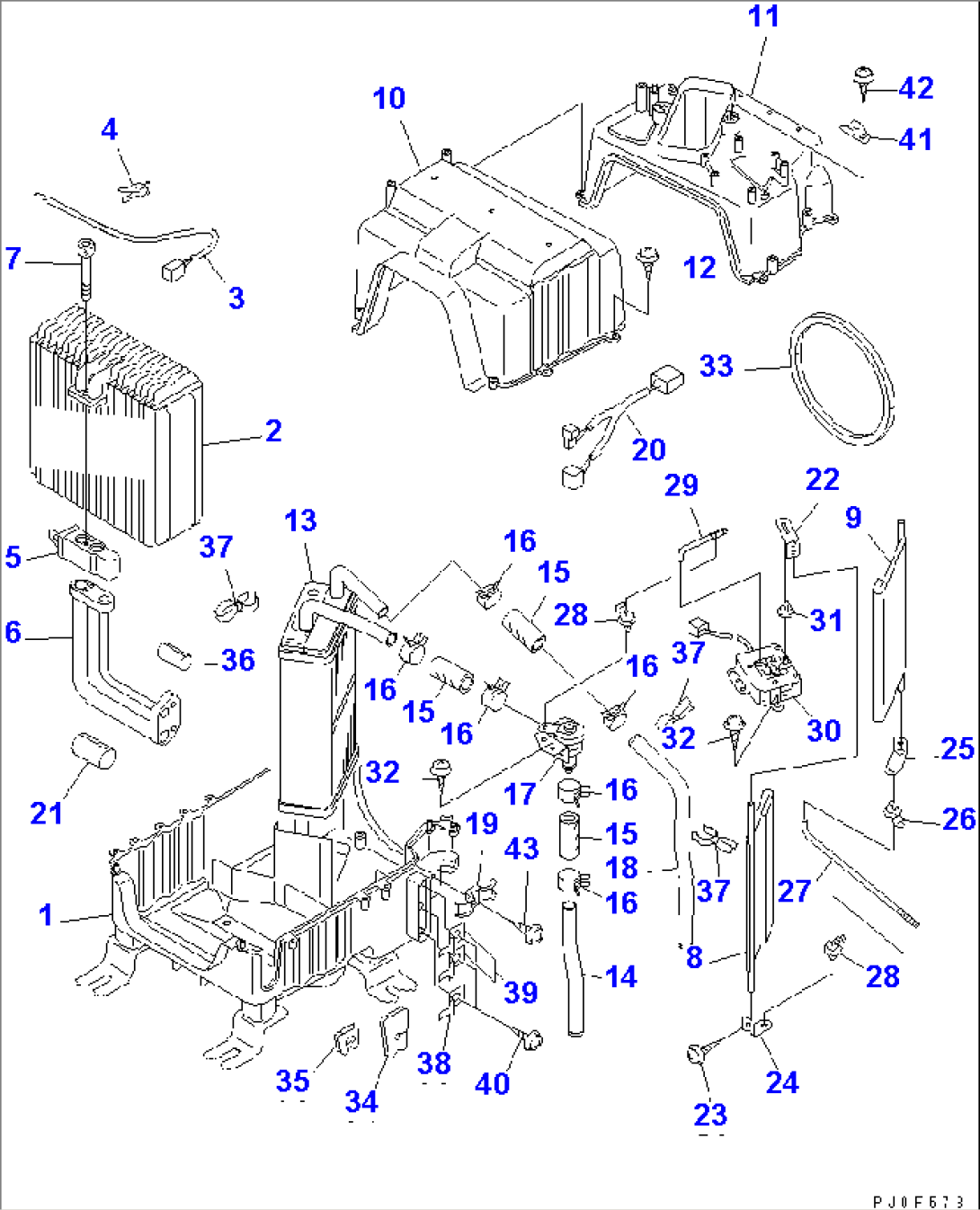

| Item | Part No. | Part Name | Qty | Serial No. |
| ND445800-9182 | AIR CONDITIONER U. | A89001- | ||
| 1 | ND245420-4202 | CASE | A89001- | |
| 2 | ND447600-2340 | EVAPORATOR | A89001- | |
| 3 | ND077500-3620 | THERMOSTAT | A89001- | |
| 4 | ND246690-2840 | CLAMP | A89001- | |
| 5 | ND447500-1390 | VALVE | A89001- | |
| 6 | ND446870-2320 | TUBE | A89001- | |
| ND949142-0030 | O-RING | A89001- | ||
| ND949142-0010 | O-RING | A89001- | ||
| 7 | ND949046-2150 | BOLT | A89001- | |
| 8 | ND116730-0520 | DAMPER ASS'Y | A89001- | |
| 9 | ND116730-0530 | DAMPER ASS'Y | A89001- | |
| 10 | ND245420-5992 | CASE | A89001- | |
| 11 | ND116452-0562 | CASE | A89001- | |
| 12 | ND949001-1730 | SCREW | A89001- | |
| 13 | ND116410-9680 | UNIT ASS'Y,RADIATOR | A89001- | |
| 14 | ND116427-5540 | PIPE | A89001- | |
| 15 | ND7052-200600 | HOSE | A89001- | |
| 16 | ND949351-0860 | CLIP | A89001- | |
| 17 | ND113600-9260 | VALVE ASS'Y | A89001- | |
| 18 | ND116427-2320 | PIPE | A89001- | |
| 19 | ND017231-1400 | CLAMP | A89001- | |
| 20 | ND246440-5200 | WIRING HARNESS | A89001- | |
| 21 | ND7009-040050 | PIPE | A89001- | |
| 22 | ND017732-3051 | LEVER | A89001- | |
| 23 | ND91370-03081 | SCREW | A89001- | |
| 24 | ND017732-3041 | LEVER | A89001- | |
| 25 | ND017732-3060 | LEVER | A89001- | |
| 26 | 17M-911-3330 | BUSHING | A89001- | |
| 27 | ND116662-3780 | SHAFT | A89001- | |
| 28 | 17M-911-3290 | CLAMP | A89001- | |
| 29 | ND116662-0590 | SHAFT | A89001- | |
| 30 | ND063700-6580 | SERVO MOTOR ASS'Y | A89001- | |
| 31 | 195-Z11-6280 | BUSHING | A89001- | |
| 32 | ND90930-06141 | SCREW | A89001- | |
| 33 | ND146668-6710 | PACKING | A89001- | |
| 34 | ND146984-4750 | GROMMET | A89001- | |
| 35 | ND146642-7930 | PLATE | A89001- | |
| 36 | ND7009-010050 | PIPE | A89001- | |
| 37 | ND246690-6740 | CLAMP | A89001- | |
| 38 | ND017773-0140 | CLIP | A89001- | |
| 39 | ND017773-0180 | CLIP | A89001- | |
| 40 | ND949008-0780 | SCREW | A89001- | |
| 41 | ND017660-3490 | BRACKET | A89001- | |
| 42 | ND90930-05121 | SCREW | A89001- | |
| 43 | ND90930-05161 | SCREW | A89001- |
