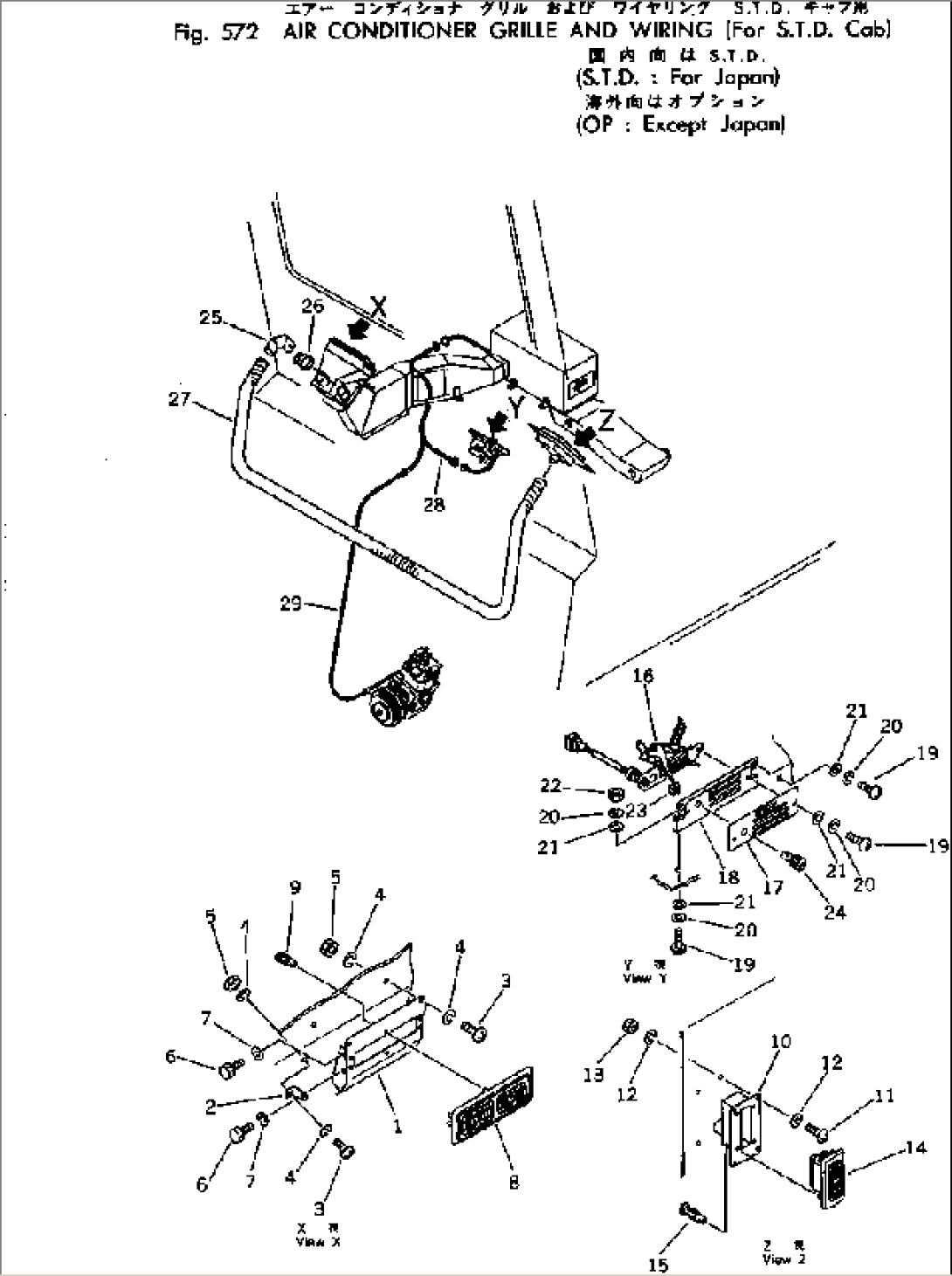

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-07-38310 | BRACKET | 1101- | |
| 2 | 561-07-38320 | PLATE | 1101- | |
| 3 | 01220-40812 | SCREW | 1101- | |
| 4 | 01602-20825 | WASHER | 1101- | |
| 5 | 01580-10806 | NUT | 1101- | |
| 6 | 01010-50812 | BOLT | 1101- | |
| 7 | 01602-20825 | WASHER | 1101- | |
| 8 | 566-07-41230 | GRILLE ASS'Y | 1101- | |
| 9 | 566-07-41290 | NUT | 1101- | |
| 10 | 561-07-38330 | DUCT | 1101- | |
| 11 | 01220-40812 | SCREW | 1101- | |
| 12 | 01602-20825 | WASHER | 1101- | |
| 13 | 01580-10806 | NUT | 1101- | |
| 14 | 566-07-41240 | GRILLE ASS'Y | 1101- | |
| 15 | 566-07-41290 | NUT | 1101- | |
| 16 | 56A-07-16110 | LEVER ASS'Y | 1101- | |
| 17 | 566-07-41191 | PLATE, NAME | 1101- | |
| 18 | 561-07-38210 | COVER | 1101- | |
| 19 | 01220-40616 | SCREW | 1101- | |
| 20 | 01602-20619 | WASHER | 1101- | |
| 21 | 01641-20608 | WASHER | 1101- | |
| 22 | 01580-10605 | NUT | 1101- | |
| 23 | 566-07-41210 | KNOB | 1101- | |
| 24 | 566-07-41220 | KNOB | 1101- | |
| 25 | 56A-07-16420 | PIPE | 1101- | |
| 26 | 07281-00709 | CLAMP | 1101- | |
| 27 | 561-07-38120 | HOSE | 1101- | |
| 28 | 566-07-41270 | WIRING HARNESS | 1101- | |
| 29 | 569-07-41380 | CABLE | 1101- |
