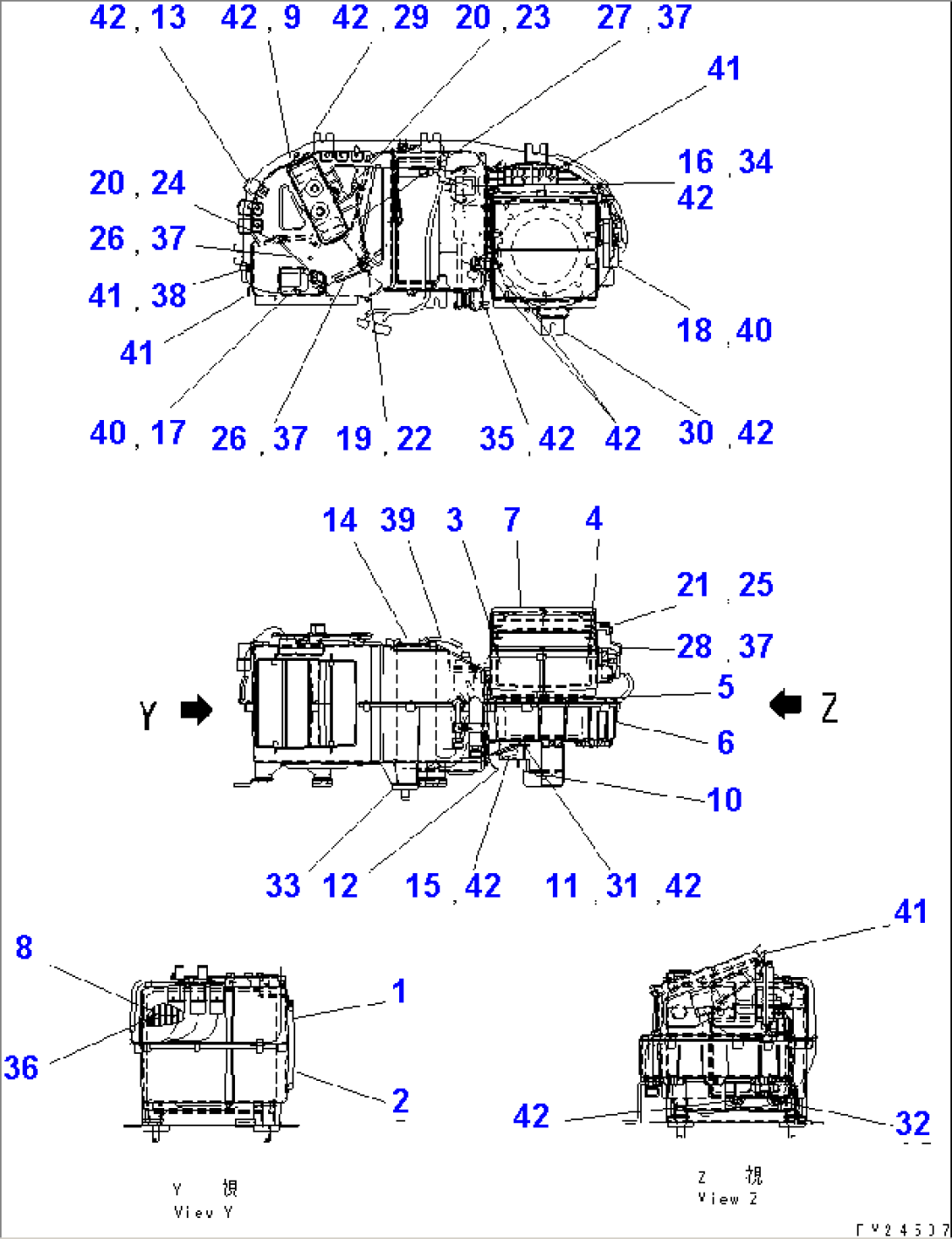

| Item | Part No. | Part Name | Qty | Serial No. |
| 567-07-72210 | AIR CONDITIONER UNIT | 1001-1200 | ||
| 1 | DK534134-5320 | CASE ASS'Y | 1001-1200 | |
| DK534134-5300 | CASE | 1001-1200 | ||
| DK534185-7400 | LINING | 1001-1200 | ||
| 2 | DK534134-5421 | CASE ASS'Y | .-1200 | |
| \0\DK534134-5420 | CASE ASS'Y | 1001-. | ||
| DK534134-5401 | CASE | 1001-1200 | ||
| DK534185-7500 | LINING | 1001-1200 | ||
| 3 | DK534134-5800 | CASE | 1001-1200 | |
| 4 | DK534134-9000 | CASE | 1001-1200 | |
| 5 | DK534160-1800 | SCROLL | 1001-1200 | |
| 6 | DK534160-1900 | SCROLL | 1001-1200 | |
| 7 | DK534240-5720 | FILTER | 1001-1200 | |
| DK534530-0600 | FRAME | 1001-1200 | ||
| DK534240-5700 | FILTER | 1001-1200 | ||
| 8 | DK503700-2191 | EVAPORATOR | 1001-1200 | |
| \0\DK503700-2190 | EVAPORATOR | 1001-1200 | ||
| DK503714-0830 | VALVE,EXPANSION | 1001-1200 | ||
| DK534054-1122 | PIPE | 1001-1200 | ||
| DK596193-8800 | O-RING | 1001-1200 | ||
| DK596193-5500 | O-RING | 1001-1200 | ||
| DK594113-2101 | CLIP | 1001-1200 | ||
| DK012555-1440 | SCREW | 1001-1200 | ||
| DK583033-2500 | INSULATOR | 1001-1200 | ||
| DK534184-5100 | LINING | 1001-1200 | ||
| DK534232-9400 | SEAL | 1001-1200 | ||
| DK583033-9200 | INSULATOR | 1001-1200 | ||
| 9 | DK502700-2060 | HEATER CORE ASS'Y | .-1200 | |
| \0\DK502700-1690 | HEATER CORE ASS'Y | 1001-. | ||
| 10 | DK503716-1710 | FAN MOTOR | 1001-1200 | |
| 11 | DK592405-1600 | ISOLATOR | 1001-1200 | |
| 12 | DK534510-3900 | HOSE,AIR | 1001-1200 | |
| 13 | DK582592-4020 | RELAY | 1001-1200 | |
| 14 | DK582550-5800 | THERMOSTAT | 1001-1200 | |
| 15 | DK582571-3700 | RESISTOR | 1001-1200 | |
| 16 | DK582670-3500 | POWER TRANSISTOR | 1001-1200 | |
| 17 | DK502752-2150 | MOTOR ACTUATOR | 1001-1200 | |
| DK521082-7201 | LEVER | 1001-1200 | ||
| 18 | DK502752-2320 | MOTOR ACTUATOR | 1001-1200 | |
| DK521082-2800 | LEVER | 1001-1200 | ||
| 19 | DK534470-2100 | LEVER | 1001-1200 | |
| 20 | DK521081-6700 | LEVER | 1001-1200 | |
| 21 | DK534470-2200 | LEVER | 1001-1200 | |
| 22 | DK534270-2120 | DOOR | 1001-1200 | |
| 23 | DK534270-2220 | DOOR | 1001-1200 | |
| 24 | DK534270-2320 | DOOR | 1001-1200 | |
| 25 | DK534270-2420 | DOOR | 1001-1200 | |
| 26 | DK534480-0400 | ROD | 1001-1200 | |
| 27 | DK534480-0500 | ROD | 1001-1200 | |
| 28 | DK534480-0600 | ROD | 1001-1200 | |
| 29 | DK534103-0800 | BRACKET | 1001-1200 | |
| 30 | DK534102-5600 | BRACKET | 1001-1200 | |
| 31 | DK592039-5900 | WASHER | 1001-1200 | |
| 32 | DK534186-3200 | LINING | 1001-1200 | |
| 33 | DK534185-7701 | LINING | 1001-1200 | |
| 34 | DK534232-3200 | SEAL | 1001-1200 | |
| 35 | DK580530-5800 | CLIP | 1001-1200 | |
| 36 | DK580520-1300 | CLIP | 1001-1200 | |
| 37 | DK580521-6800 | CLIP | 1001-1200 | |
| 38 | DK595320-6900 | CLIP | 1001-1200 | |
| 39 | DK536019-6600 | WIRE HARNESS | 1001-1200 | |
| 40 | DK580140-0300 | SCREW | 1001-1200 | |
| 41 | DK012514-1640 | SCREW | 1001-1200 | |
| 42 | DK012515-1640 | SCREW | 1001-1200 |
