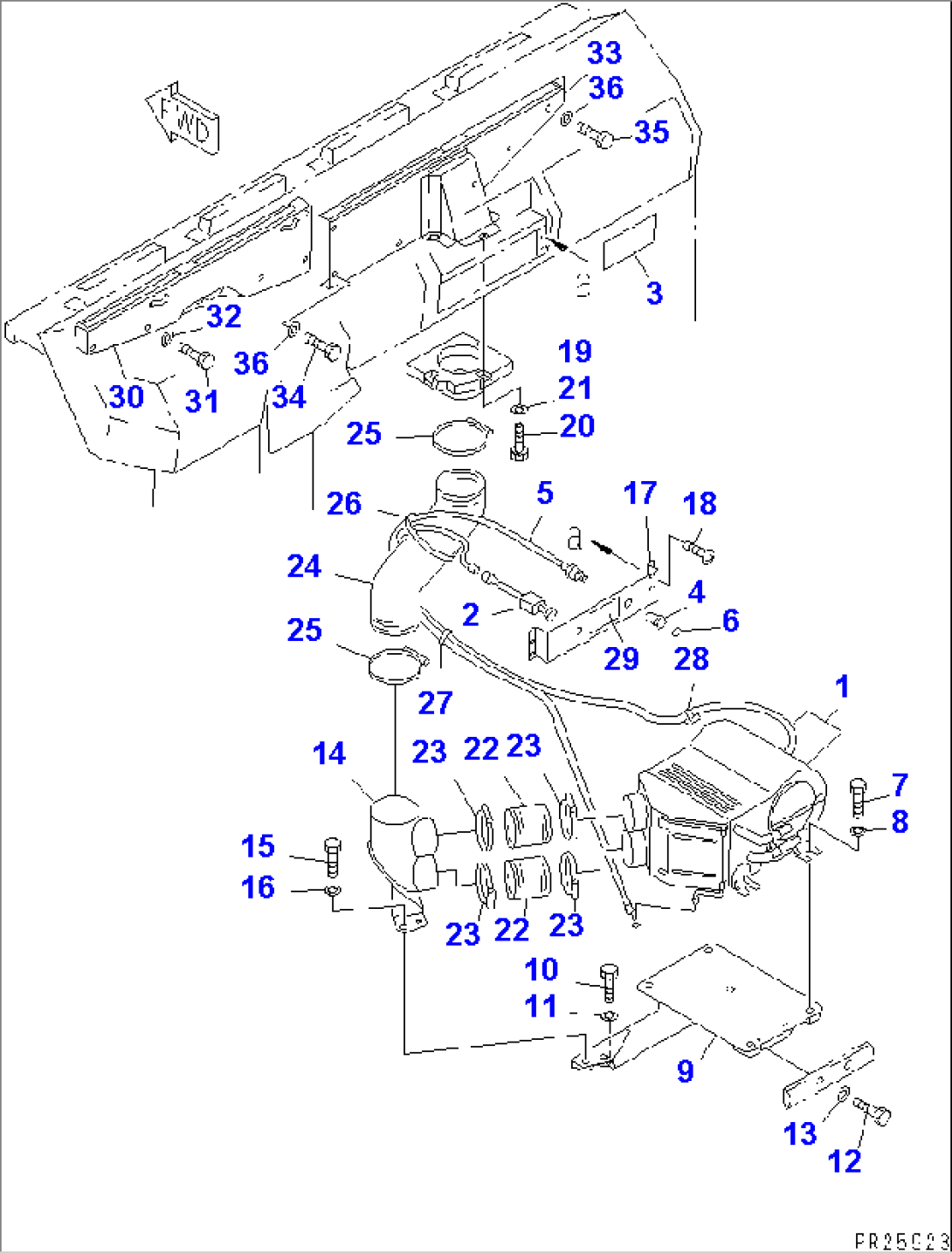

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-07-63100 | .HEATER ASS'Y | 4001- | ||
| 1 | 561-07-63110 | HEATER ASS'Y | 4001- | |
| 2 | 561-07-63130 | ..SWITCH ASS'Y | 4001- | |
| 3 | 561-07-63220 | ..PLATE | 4001- | |
| 561-07-63120 | .CABLE | 4001- | ||
| 4 | ND0177710840 | ..KNOB | 4001- | |
| 5 | ND0177407191 | ..CABLE | 4001- | |
| 6 | ND0540080020 | ..PLATE | 4001- | |
| 7 | 01010-81020 | BOLT | 4001- | |
| 8 | 01643-31032 | WASHER | 4001- | |
| 9 | 561-07-63140 | BRACKET | 4001- | |
| 10 | 01010-81220 | BOLT | 4001- | |
| 11 | 01643-31232 | WASHER | 4001- | |
| 12 | 01010-81020 | BOLT | 4001- | |
| 13 | 01643-31032 | WASHER | 4001- | |
| 14 | 561-07-63150 | TUBE | 4001- | |
| 15 | 01010-81020 | BOLT | 4001- | |
| 16 | 01643-31032 | WASHER | 4001- | |
| 17 | 561-07-63160 | PLATE | 4001- | |
| 18 | 01023-20616 | SCREW | 4001- | |
| 19 | 561-07-63170 | TUBE | 4001- | |
| 20 | 01010-80625 | BOLT | 4001- | |
| 21 | 01643-30623 | WASHER | 4001- | |
| 22 | 561-07-63180 | HOSE | 4001- | |
| 23 | 07281-00709 | CLAMP | 4001- | |
| 24 | 561-07-63190 | HOSE | 4001- | |
| 25 | 07281-00909 | CLAMP | 4001- | |
| 26 | 08034-00536 | BAND | 4001- | |
| 27 | 08034-00310 | BAND | 4001- | |
| 28 | 566-06-16910 | STICKER | 4001- | |
| 29 | 561-07-63231 | PLATE¤ NAME | 4001- | |
| 30 | 561-07-63240 | DUCT | 4001- | |
| 31 | 01010-80840 | BOLT | 4001- | |
| 32 | 01643-30823 | WASHER | 4001- | |
| 33 | 561-07-63250 | DUCT | 4001- | |
| 34 | 01010-80840 | BOLT | 4001- | |
| 35 | 01010-80816 | BOLT | 4001- | |
| 36 | 01643-30823 | WASHER | 4001- |
