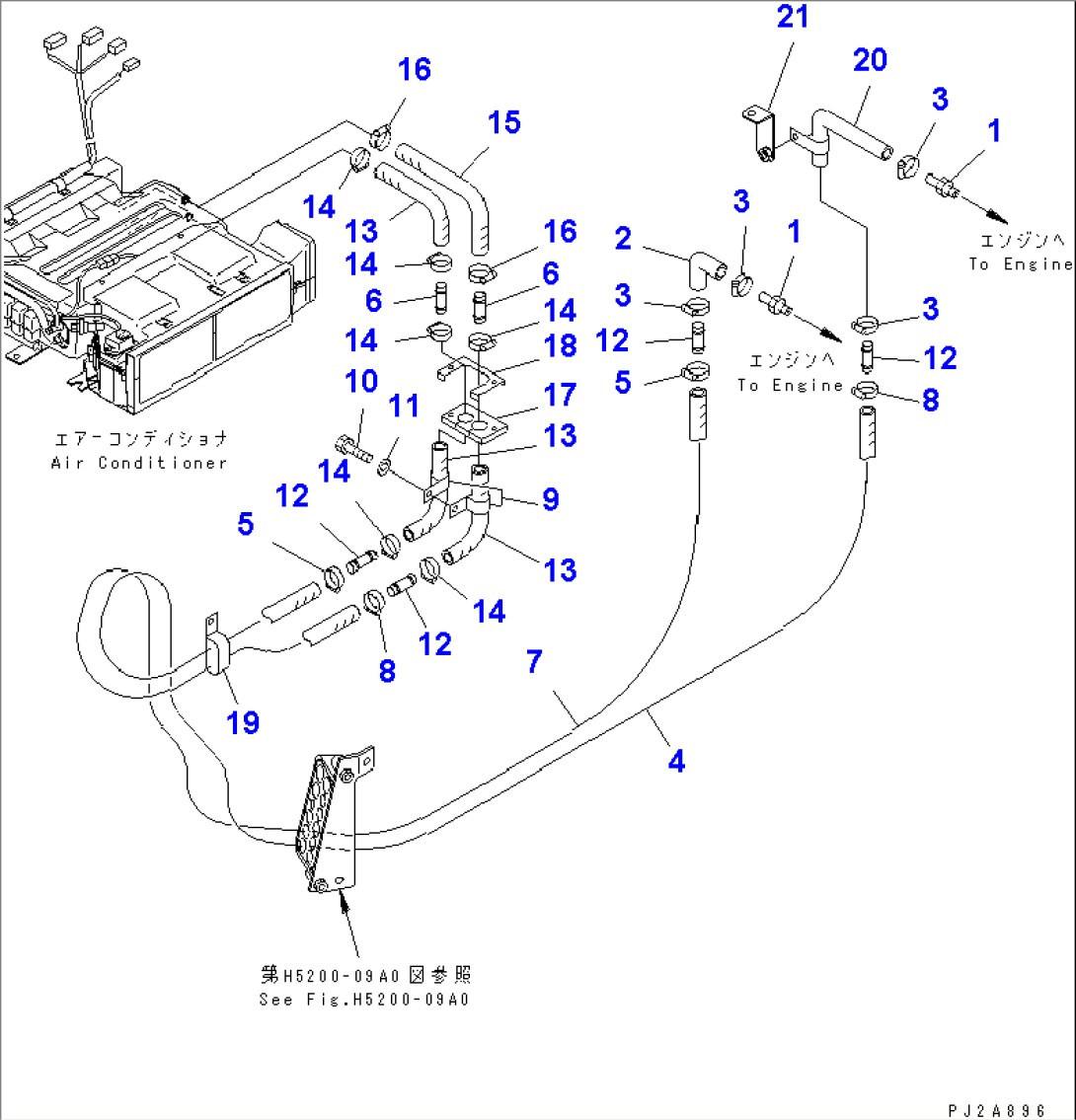

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-07-31110 | JOINT | 1001- | |
| 2 | 09483-30550 | HOSE | 1001- | |
| 3 | 09479-02400 | CLAMP | .- | |
| \0\07280-02523 | CLAMP | 1001-. | ||
| 4 | 09483-10530 | HOSE | 1001- | |
| 5 | 09479-02400 | CLAMP | .- | |
| \0\07280-02523 | CLAMP | 1001-. | ||
| 6 | 09484-00560 | CONNECTOR | 1001- | |
| 7 | 09483-10527 | HOSE | 1001- | |
| 8 | 07280-02523 | CLAMP | 1001- | |
| 9 | 04434-52511 | CLIP | 1001- | |
| 10 | 01010-81020 | BOLT | 1001- | |
| 11 | 01643-31032 | WASHER | 1001- | |
| 12 | 09484-00560 | CONNECTOR | 1001- | |
| 13 | 23B-809-7340 | HOSE | 1001- | |
| 14 | 09479-02400 | CLAMP | .- | |
| \0\07280-02523 | CLAMP | 1001-. | ||
| 15 | 23B-809-7350 | HOSE | 1001- | |
| 16 | 09479-02400 | CLAMP | .- | |
| \0\07280-02523 | CLAMP | 1001-. | ||
| 17 | 23B-809-7371 | SHEET | 1001- | |
| 18 | 23B-809-8730 | PLATE | 1001- | |
| 19 | 04435-52210 | CLIP | 1001- | |
| 20 | 23B-809-7340 | HOSE | 1001- | |
| 21 | 23B-807-3750 | PLATE | 1001- |
