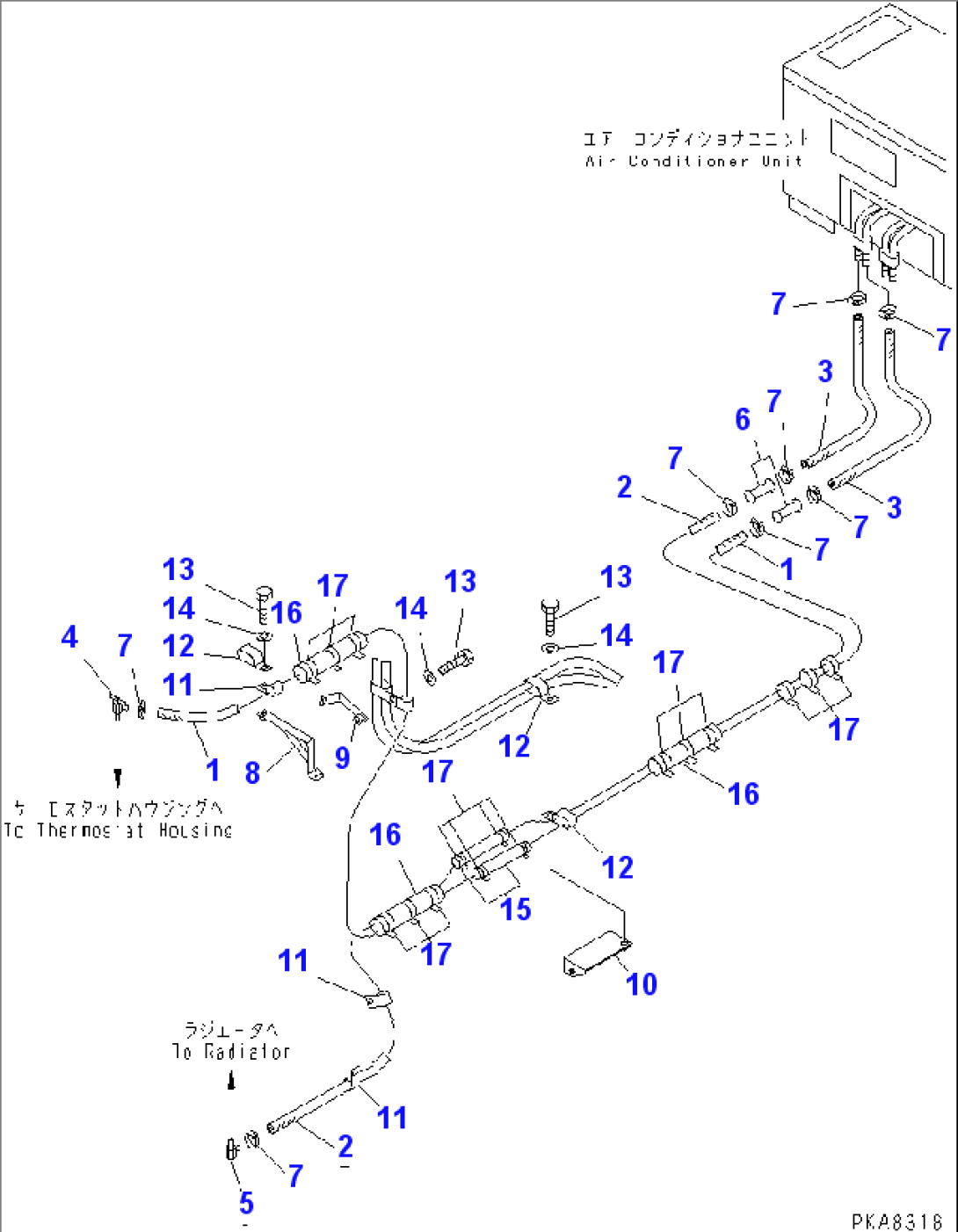

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09483-00436 | HOSE | 75001- | |
| 2 | 09483-00434 | HOSE | 75001- | |
| 3 | 09483-00405 | HOSE | 75001- | |
| 4 | 09482-50000 | VALVE | 75001- | |
| 5 | 20R-54-19120 | JOINT | 75001- | |
| 6 | 09484-00450 | CONNECTOR | 75001- | |
| 7 | 09480-10100 | CLAMP | 75001- | |
| 8 | 104-Y11-1730 | PLATE | 75001- | |
| 9 | 104-Y11-1740 | PLATE | 75001- | |
| 10 | 104-Y11-1750 | BRACKET | 75001- | |
| 11 | 08036-02514 | CLIP | 75001- | |
| 12 | 04435-52210 | CLIP | 78218- | |
| 175-804-3230 | CLIP | 75001-78217 | ||
| 13 | 01010-51035 | BOLT | 75001- | |
| 14 | 01643-31032 | WASHER | 75001- | |
| 15 | 203-62-41150 | COVER | 75001- | |
| 16 | 124-49-21240 | VINYL | 75001- | |
| 17 | 08034-00823 | BAND | 75001- |
