| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-926-4570 | BRACKET | 75001- | |
| 2 | 01010-80616 | BOLT | 75001- | |
| 3 | 01643-30623 | WASHER | 75001- | |
| 4 | 423-921-4450 | GRILLE | 75001- | |
| 5 | 424-09-12610 | COVER | 75001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250 6 s/n 75001 up
- Operator's compartment and control system
- Air conditioner less and heater less (duct)
Поиск по каталогу

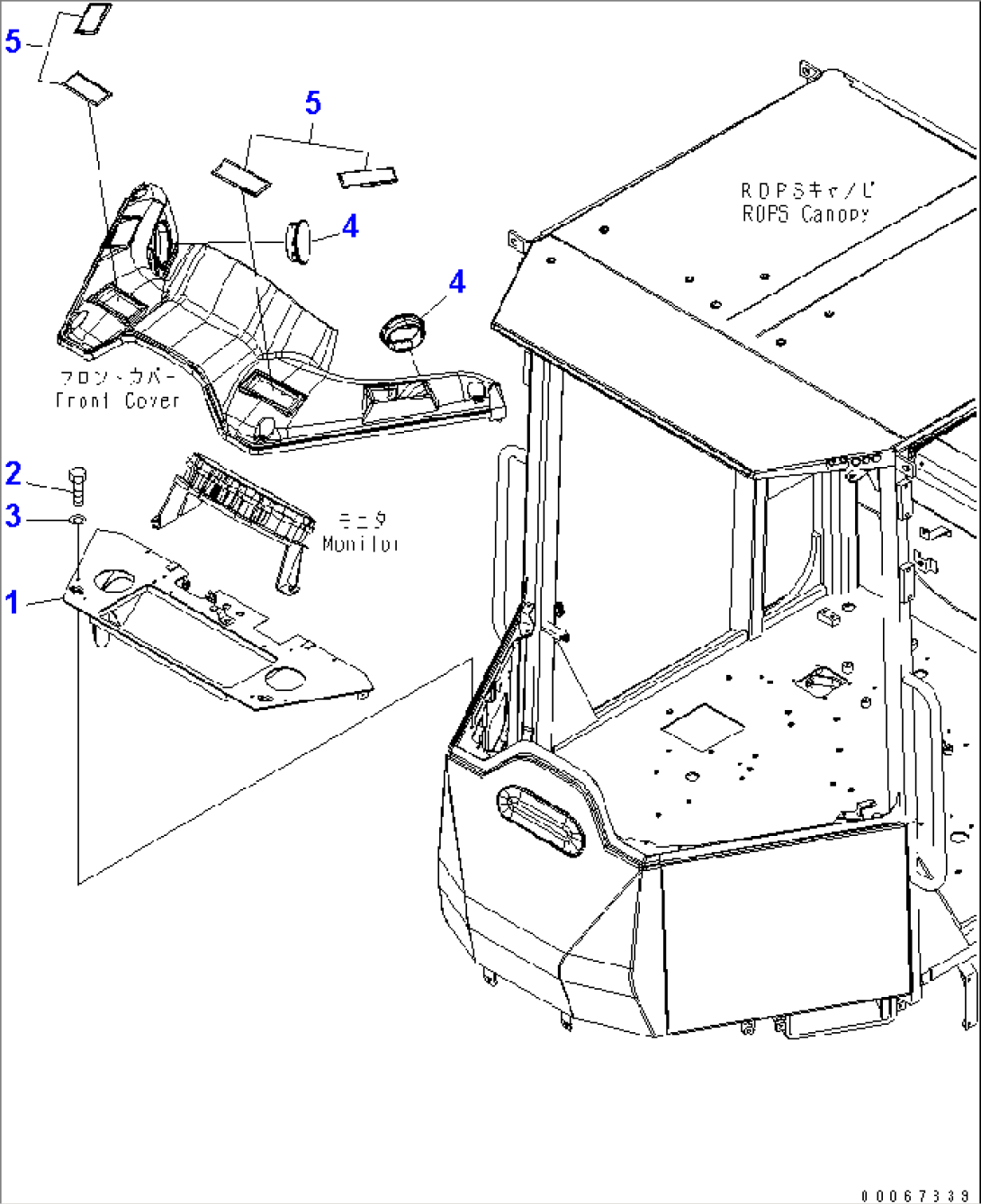

AIR CONDITIONER LESS AND HEATER LESS (DUCT)
