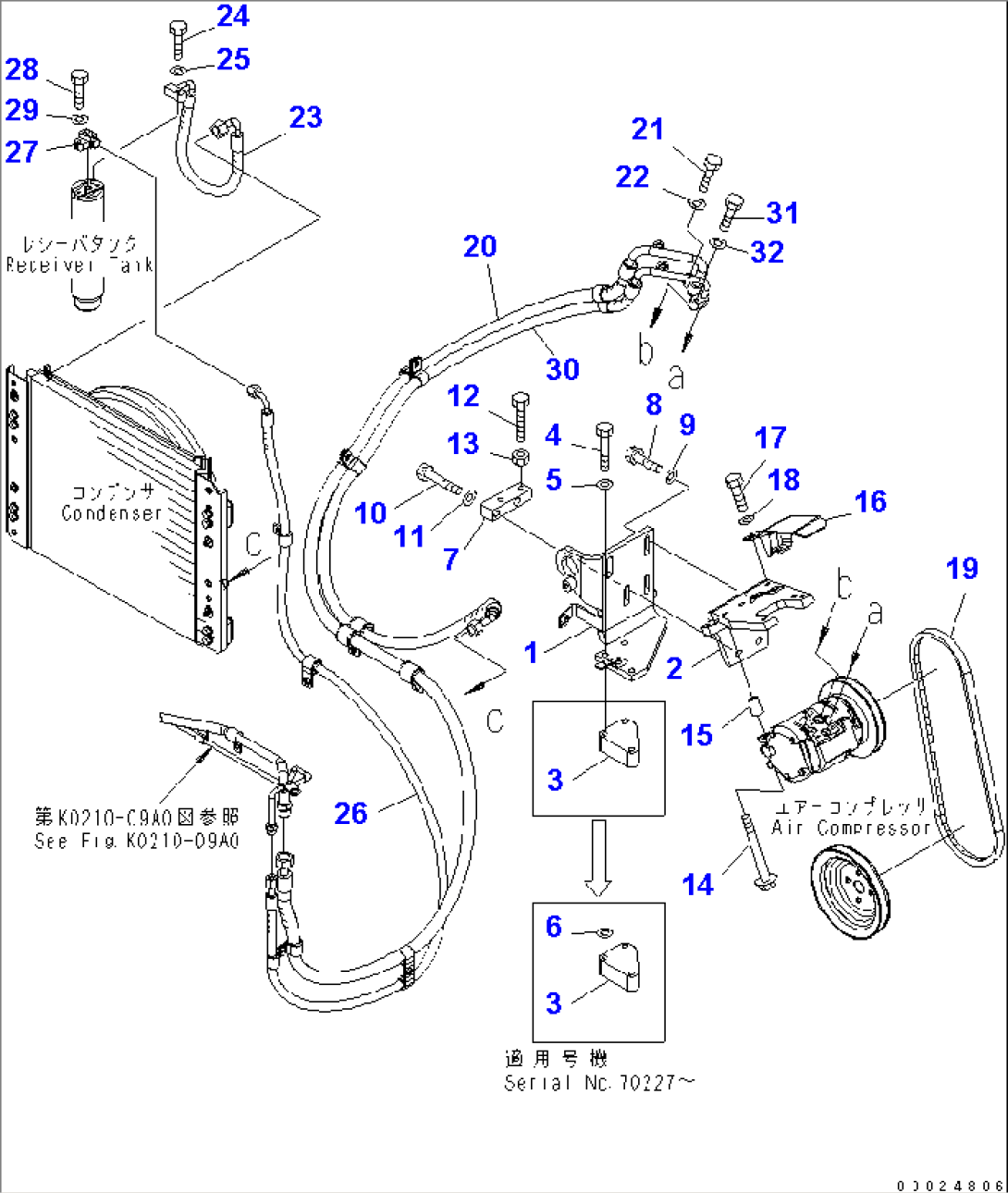

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-S62-3173 | BRACKET | 70001- | |
| 2 | 418-S62-3183 | BRACKET | 70001- | |
| 3 | 11Y-01-11280 | SPACER | 70001- | |
| 4 | 01010-81065 | BOLT | 70227- | |
| 01010-81060 | BOLT | 70001-70226 | ||
| 5 | 01643-31032 | WASHER | 70001- | |
| 6 | 01643-31032 | WASHER | 70227- | |
| 7 | 418-S62-3340 | BLOCK | 70001- | |
| 8 | 01010-81235 | BOLT | 70001- | |
| 9 | 01643-31232 | WASHER | 70001- | |
| 10 | 01010-81265 | BOLT | 70001- | |
| 11 | 01643-31232 | WASHER | 70001- | |
| 12 | 01016-51090 | BOLT | 70001- | |
| 13 | 01580-11008 | NUT | 70001- | |
| 14 | 6202-81-6810 | BOLT | 70001- | |
| 15 | 418-S62-3310 | SPACER | 70001- | |
| 16 | 418-S62-3291 | COVER | 70001- | |
| 17 | 01010-81020 | BOLT | 70001- | |
| 18 | 01643-31032 | WASHER | 70001- | |
| 19 | 04120-21744 | V-BELT | 70001- | |
| 20 | 418-S62-3242 | HOSE | 70001- | |
| 20Y-979-3140 | O-RING | 70001- | ||
| 21 | 01010-80630 | BOLT | 70001- | |
| 22 | 01643-30623 | WASHER | 70001- | |
| 23 | 418-S62-3251 | HOSE | 70001- | |
| 24 | 01010-80625 | BOLT | 70001- | |
| 25 | 01643-30623 | WASHER | 70001- | |
| 26 | 418-S62-3261 | HOSE | 70001- | |
| 20Y-979-3150 | O-RING | 70001- | ||
| 27 | 17A-911-1671 | JOINT | 70001- | |
| 20Y-979-3150 | O-RING | 70001- | ||
| 28 | 01010-80625 | BOLT | 70001- | |
| 29 | 01643-30623 | WASHER | 70001- | |
| 30 | 418-S62-3232 | HOSE | 70001- | |
| 20Y-979-3130 | O-RING | 70001- | ||
| 31 | 01010-80630 | BOLT | 70001- | |
| 32 | 01643-30623 | WASHER | 70001- |
