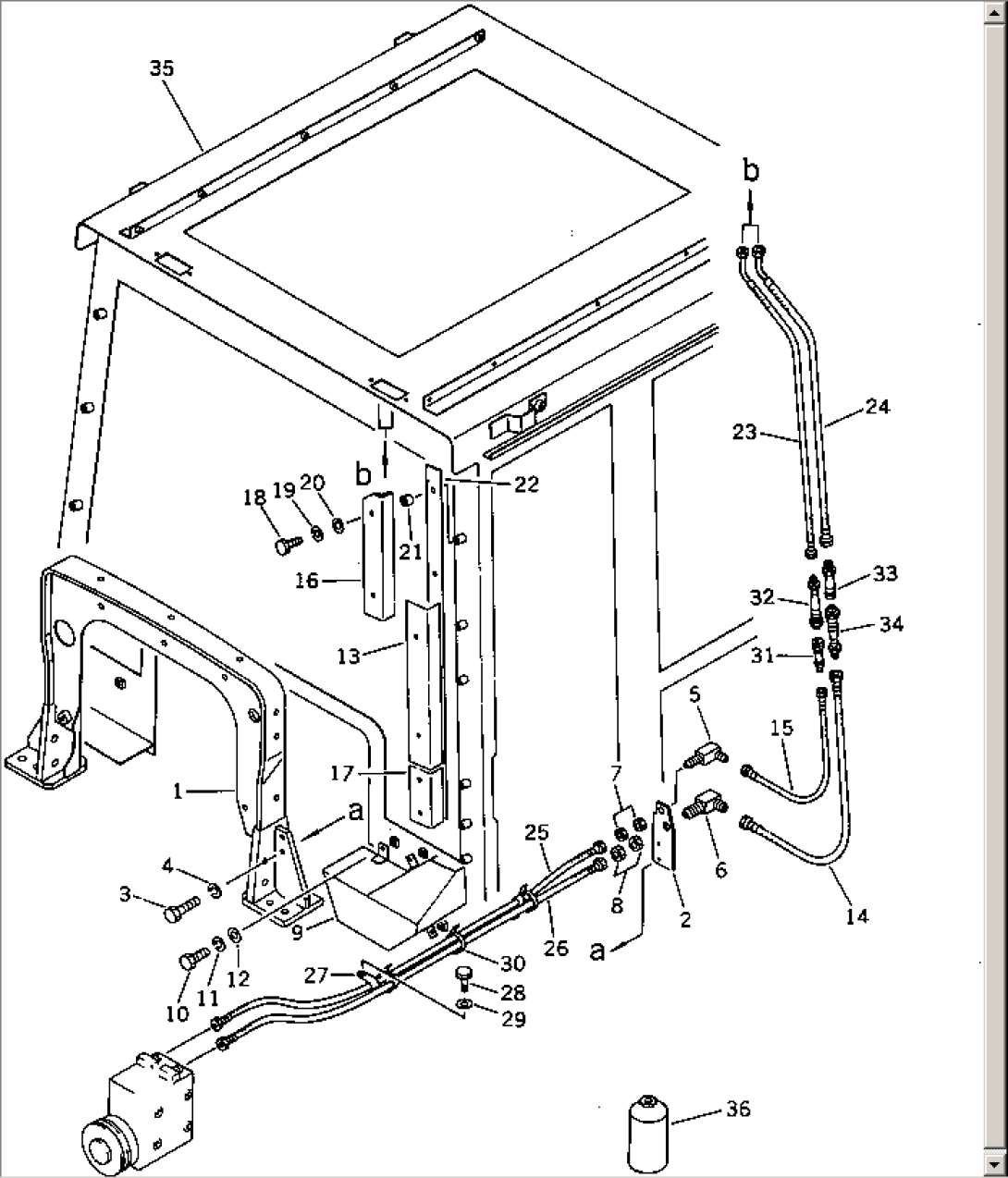

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 144-Z79-2410 | FRAME | 45001- | |
| 2 | 144-Z79-2420 | BRACKET | 45001- | |
| 3 | 01010-51030 | BOLT | 45001- | |
| 4 | 01602-21030 | WASHER,SPRING | 45001- | |
| 5 | 145-Z79-5630 | ELBOW | 45001- | |
| 6 | 145-Z79-5640 | ELBOW | 45001- | |
| 7 | 145-Z79-5650 | NUT | 45001- | |
| 8 | 145-Z79-5660 | NUT | 45001- | |
| 9 | 144-Z79-2430 | COVER | 45001- | |
| 10 | 01010-51020 | BOLT | 45001- | |
| 11 | 01602-21030 | WASHER,SPRING | 45001- | |
| 12 | 01643-31032 | WASHER | 45001- | |
| 13 | 144-Z79-2440 | COVER | 45001- | |
| 14 | 09488-00708 | HOSE | 45001- | |
| 15 | 09488-00606 | HOSE | 45001- | |
| 16 | 144-Z79-2450 | COVER | 45001- | |
| 17 | 144-Z79-2460 | COVER | 45001- | |
| 18 | 01010-50820 | BOLT | 45001- | |
| 19 | 01602-20825 | WASHER,SPRING | 45001- | |
| 20 | 01643-30823 | WASHER | 45001- | |
| 21 | 120-Y79-6550 | TUBE | 45001- | |
| 22 | 144-Z79-2470 | SEAT | 45001- | |
| 23 | 09488-10609 | HOSE | 45001- | |
| 24 | 09488-10707 | HOSE | 45001- | |
| 25 | 09488-00613 | HOSE | 45001- | |
| 26 | 09488-00713 | HOSE | 45001- | |
| 27 | 08036-02514 | CLIP | 45001- | |
| 28 | 01010-51016 | BOLT | 45001- | |
| 29 | 01640-21016 | WASHER | 45001- | |
| 30 | 08034-00519 | BAND | 45001- | |
| 31 | 154-979-1710 | CONNECTOR ASS'Y | 45001- | |
| 32 | 154-979-1690 | CONNECTOR ASS'Y | 45001- | |
| 33 | 154-979-1680 | CONNECTOR ASS'Y | 45001- | |
| 34 | 154-979-1670 | CONNECTOR ASS'Y | 45001- | |
| 35 | 144-Z79-2480 | CAB | 45001- | |
| 36 | 145-Z79-5970 | DRUM | 45001- |
