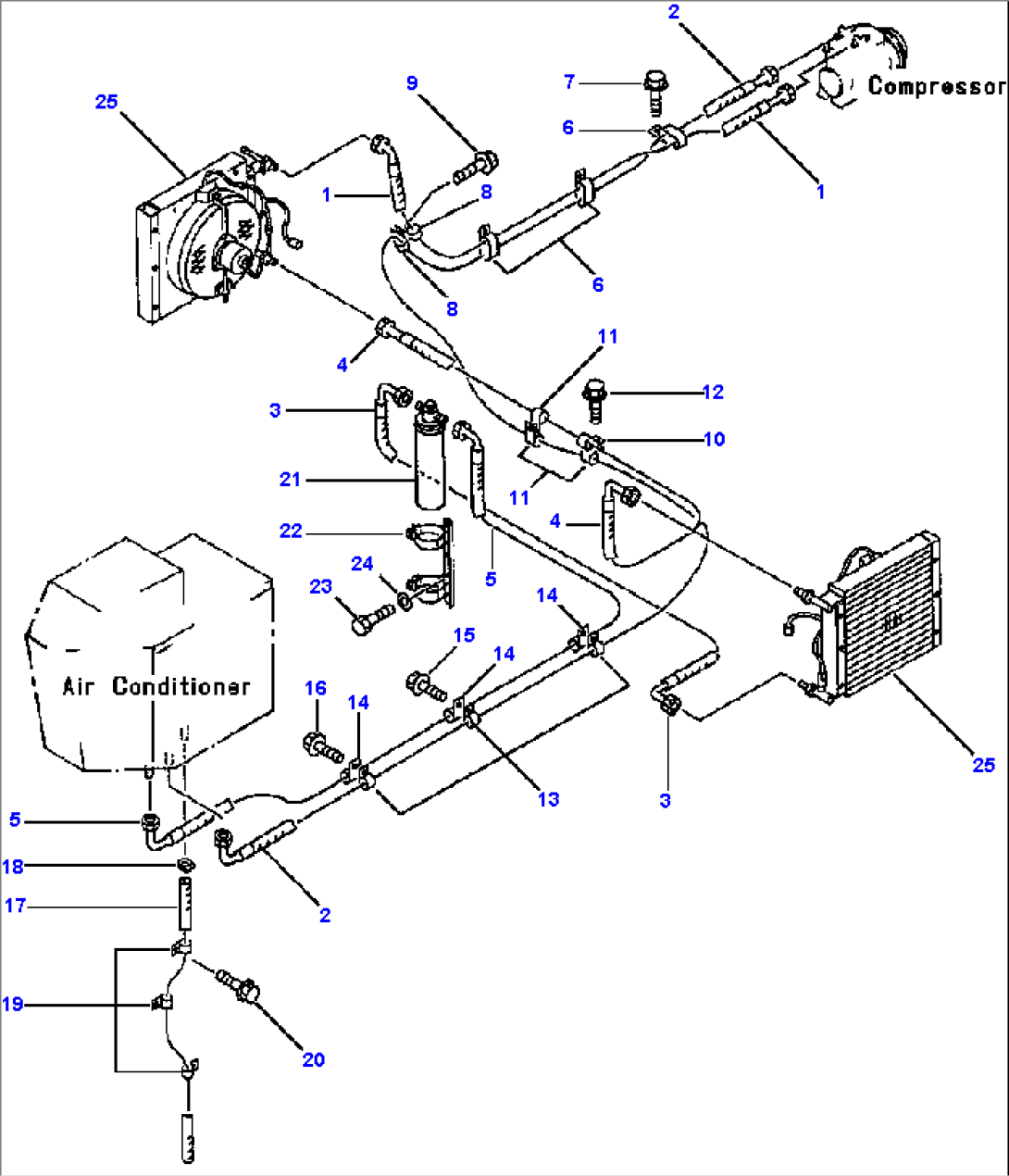

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-T46-1310 | HOSE, CONDENSER TO COMPRESSOR | ||
| 2 | 425-T46-1320 | HOSE, COMPRESSOR TO AIR CONDITIONER | ||
| 3 | 425-S51-1120 | HOSE, CONDENSER TO RECEIVER TANK | ||
| 4 | 425-S51-1110 | HOSE, CONDENSER TO CONDENSER | ||
| 5 | 425-T46-1350 | HOSE, RECEIVER TANK TO AIR CONDITIONER | ||
| 6 | 04435-52210 | CLIP | ||
| 7 | 01435-01014 | BOLT | ||
| 8 | 04434-52210 | CLIP | ||
| 9 | 01435-01020 | BOLT | ||
| 10 | 04435-52110 | CLIP | ||
| 11 | 04434-52210 | CLIP | ||
| 12 | 01435-01016 | BOLT | ||
| 13 | 04434-52210 | CLIP | ||
| 14 | 04434-51910 | CLIP | ||
| 15 | 01435-01014 | BOLT | ||
| 16 | 01435-01020 | BOLT | ||
| 17 | 07287-01416 | HOSE, DRAIN | ||
| 18 | 07281-00259 | CLAMP | ||
| 19 | 04434-51910 | CLIP | ||
| 20 | 01435-01016 | BOLT | ||
| 21 | 423-T43-1410 | TANK, RECEIVER | ||
| 145-Z79-4860 | BOLT | |||
| 22 | 423-T43-1420 | BRACKET, RECEIVER TANK | ||
| 23 | 01010-50820 | BOLT | ||
| 24 | 01643-30823 | WASHER | ||
| 25 | CONDENSER ASSEMBLY (SEE PG 05-122) |
