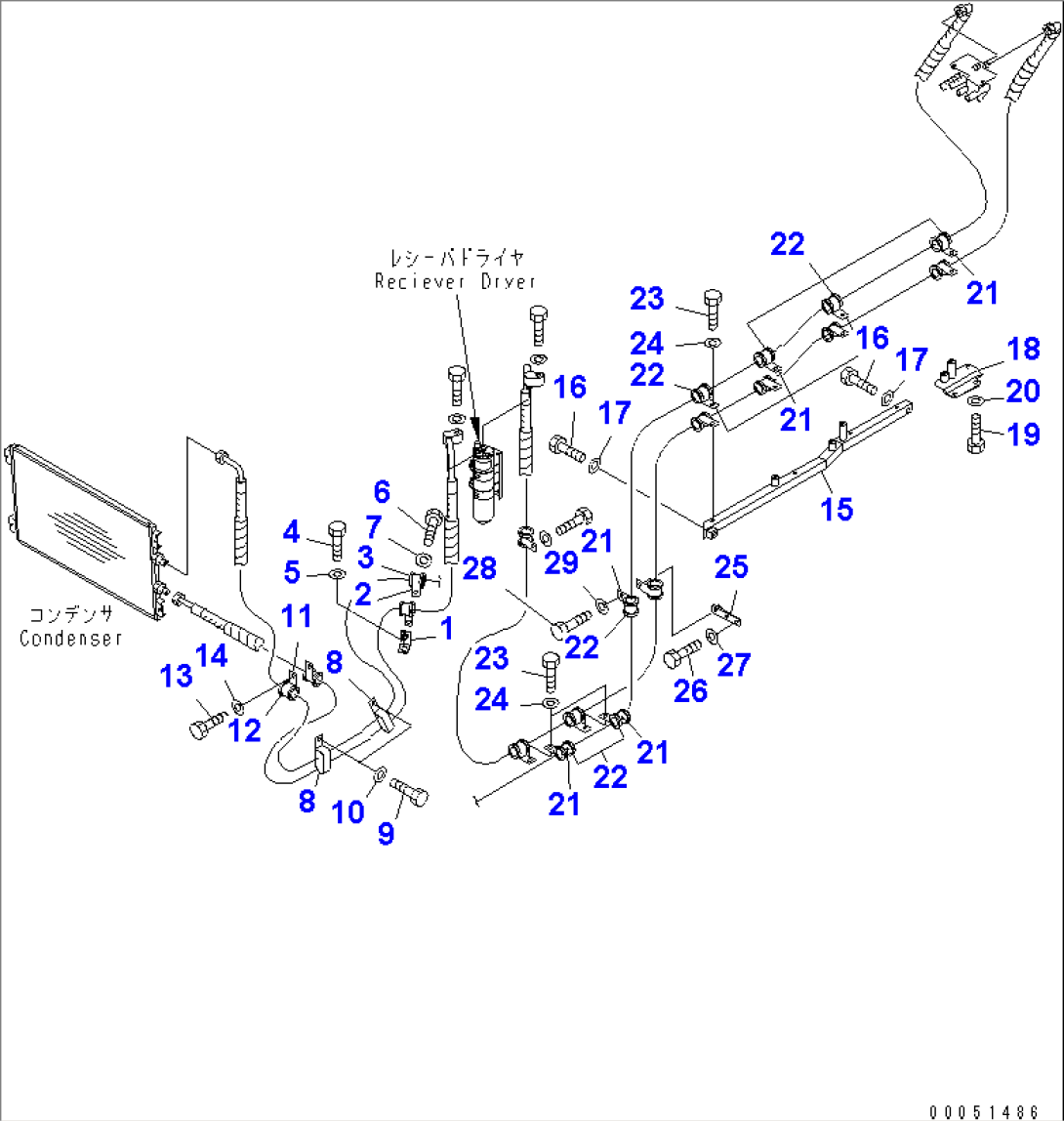

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-43-11370 | BRACKET | 2291-2461 | |
| 1 | \0\569-54-63442 | BRACKET | 2001-2291 | |
| 2 | 04434-52512 | CLIP | 2001- | |
| 3 | 566-06-41290 | INSULATOR | 2001- | |
| 4 | 01010-81025 | BOLT | 2292-2461 | |
| 4 | 01010-81016 | BOLT | 2001-2291 | |
| 5 | 01643-31032 | WASHER | 2001-2461 | |
| 6 | 01010-81020 | BOLT | 2001- | |
| 7 | 01643-31032 | WASHER | 2001- | |
| 8 | 391-62-19250 | CLIP | 2001- | |
| 9 | 01010-81016 | BOLT | 2001- | |
| 10 | 01643-31032 | WASHER | 2001- | |
| 11 | 04434-52512 | CLIP | 2001- | |
| 12 | 566-06-41290 | INSULATOR | 2001- | |
| 13 | 01010-81020 | BOLT | 2001- | |
| 14 | 01643-31032 | WASHER | 2001- | |
| 15 | 56B-07-23191 | BRACKET | 2001- | |
| 16 | 01010-81020 | BOLT | 2001- | |
| 17 | 01643-31032 | WASHER | 2001- | |
| 18 | 56B-07-23180 | BRACKET | 2001-2461 | |
| 19 | 01010-81016 | BOLT | 2001-2461 | |
| 20 | 01643-31032 | WASHER | 2001-2461 | |
| 21 | 04434-53212 | CLIP | 2001- | |
| 22 | 07095-20523 | CUSHION | 2001- | |
| 23 | 01010-81020 | BOLT | 2001- | |
| 24 | 01643-31032 | WASHER | 2001- | |
| 25 | 56B-07-13210 | BRACKET | 2001-2461 | |
| 26 | 01010-81020 | BOLT | 2001-2461 | |
| 27 | 01643-31032 | WASHER | 2001-2461 | |
| 28 | 01010-81025 | BOLT | 2001- | |
| 29 | 01643-31032 | WASHER | 2001- |
