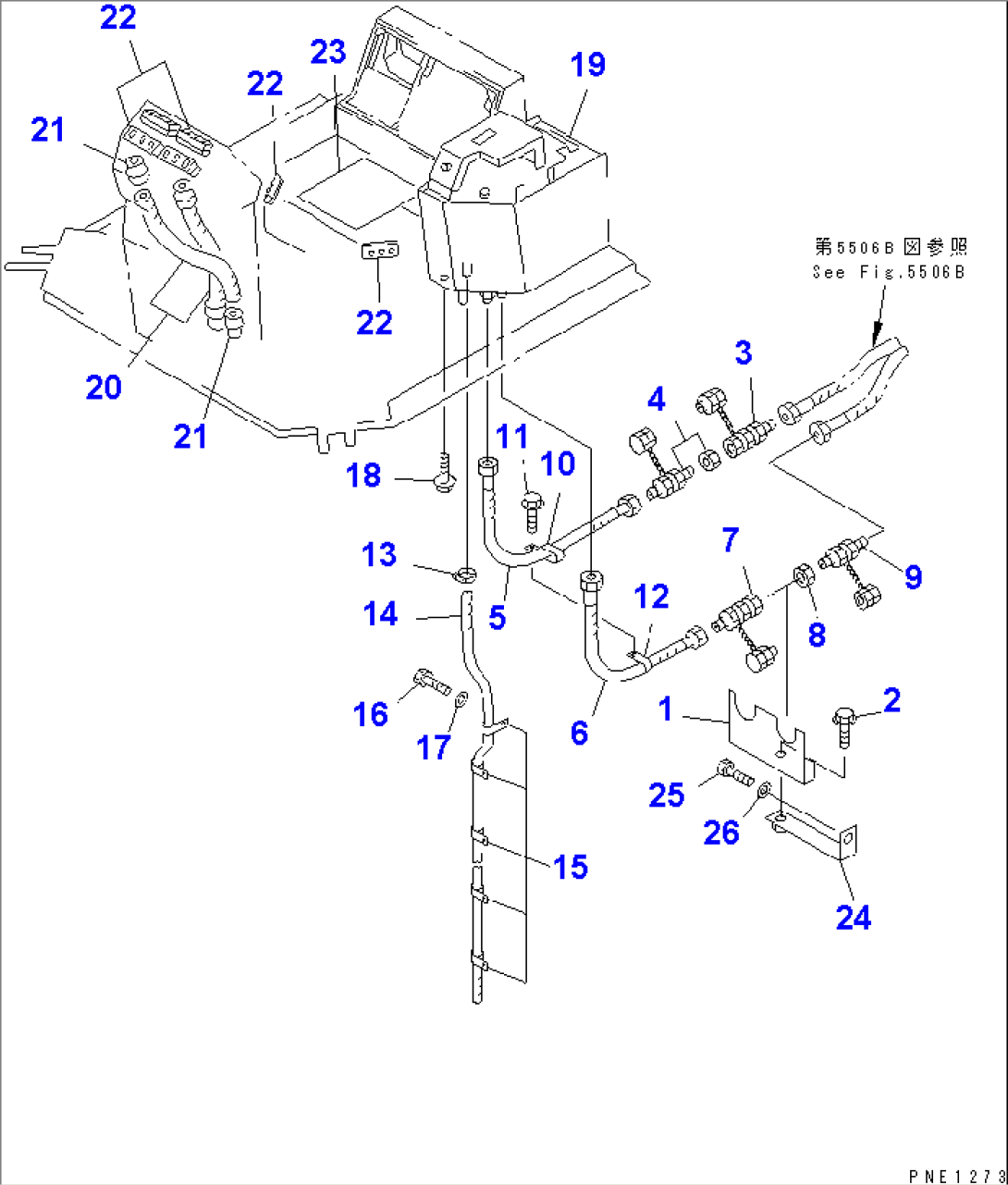

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-S62-1330 | BRACKET | 10688- | |
| 2 | 01435-01016 | BOLT | 10688- | |
| 3 | 17A-911-1551 | CONNECTOR ASS'Y | 10688- | |
| 4 | 17A-911-1561 | CONNECTOR ASS'Y | 10688- | |
| 5 | 427-S62-1180 | HOSE | 10688- | |
| 6 | 427-S62-1190 | HOSE | 10688- | |
| 7 | 17A-911-1531 | CONNECTOR ASS'Y | 10688- | |
| 8 | 427-S62-1340 | NUT | 10688- | |
| 9 | 17A-911-1541 | CONNECTOR ASS'Y | 10688- | |
| 10 | 04434-51510 | CLIP | 10688- | |
| 11 | 01435-01016 | BOLT | 10688- | |
| 12 | 04434-52212 | CLIP | 10688- | |
| 13 | 07281-00259 | CLAMP | 10050- | |
| 14 | 07287-01427 | HOSE | 10050- | |
| 15 | 424-09-12550 | CLIP | 10050- | |
| 16 | 01010-81020 | BOLT | 10050- | |
| 17 | 01643-31032 | WASHER | 10050- | |
| 18 | 01435-01220 | BOLT | 10501- | |
| 19 | (427-S61-1110) | AIR CONDITIONER A. | 10688- | |
| 20 | 421-07-12831 | HOSE | 10001- | |
| 21 | 421-07-12810 | CONNECTOR | 10001- | |
| 22 | 421-07-23870 | GRILLE | .- | |
| 23 | 423-07-11110 | INSULATOR | 10001- | |
| 24 | 427-07-11331 | BRACKET | 10688- | |
| 25 | 01010-81016 | BOLT | 10688- | |
| 26 | 01643-31032 | WASHER | 10688- |
