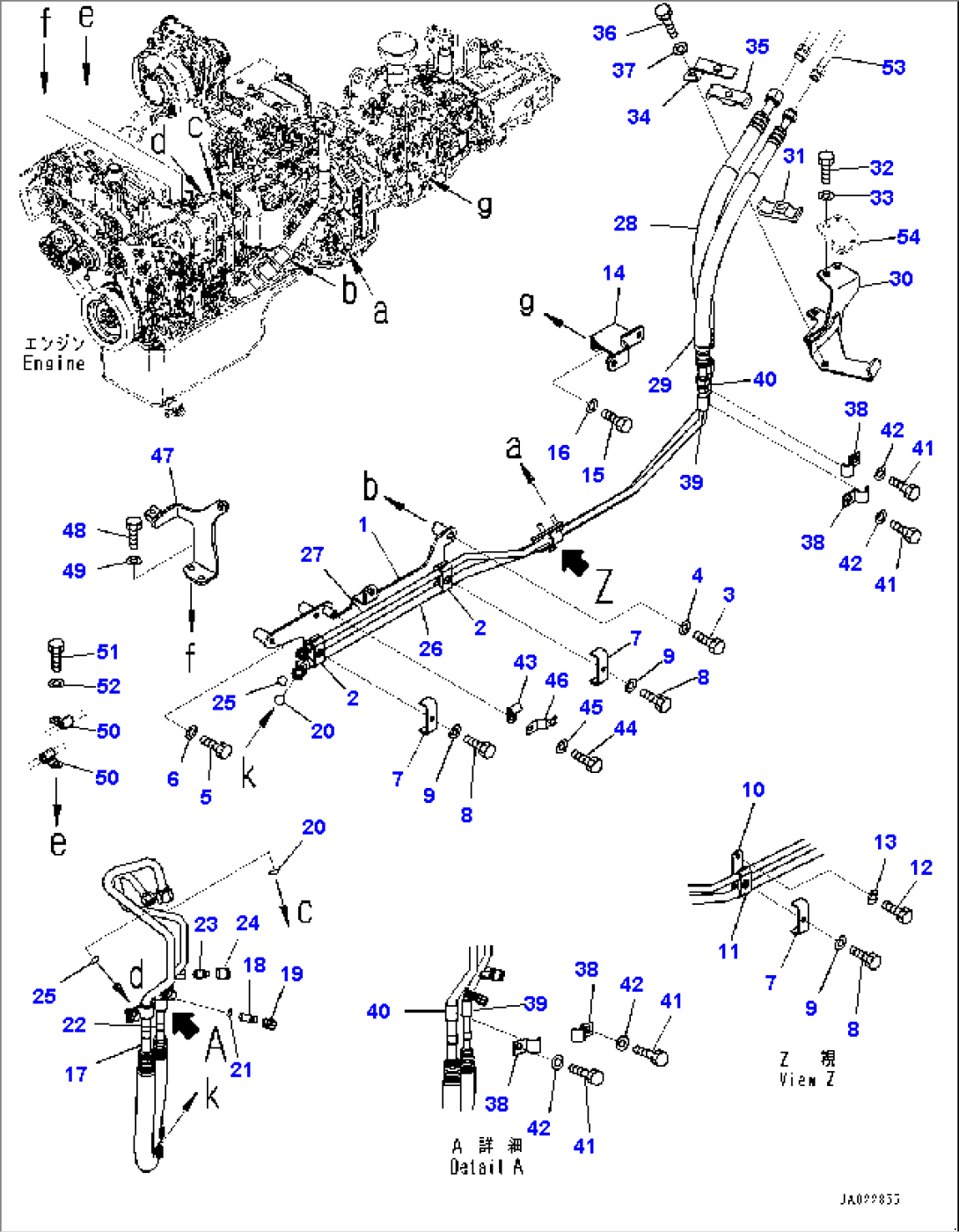

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 13Y-979-1122 | Bracket | 30001- | |
| 2 | 13Y-979-1231 | Cushion | 30001- | |
| 3 | 01010-81260 | Bolt | 30001- | |
| 4 | 01643-31232 | Washer | 30001- | |
| 5 | 01010-80855 | Bolt | 30001- | |
| 6 | 01643-30823 | Washer | 30001- | |
| 7 | 13Y-979-1221 | Plate | 30001- | |
| 8 | 01010-80850 | Bolt | 30001- | |
| 9 | 01643-30823 | Washer | 30001- | |
| 10 | 13Y-979-1111 | Bracket | 30001- | |
| 11 | 13Y-979-1231 | Cushion | 30001- | |
| 12 | 01010-80825 | Bolt | 30001- | |
| 13 | 01643-30823 | Washer | 30001- | |
| 14 | 13Y-979-1143 | Bracket | 30001- | |
| 15 | 01010-81020 | Bolt | 30001- | |
| 16 | 01643-31032 | Washer | 30001- | |
| 17 | 13Y-979-1152 | Hose | 30001- | |
| 18 | 11Y-979-8530 | Fitting | 30001- | |
| 19 | 11Y-979-8540 | Cap | 30001- | |
| 20 | 12Y-979-2160 | O-ring | 30001- | |
| 21 | 12Y-979-2230 | O-ring | 30001- | |
| 22 | 13Y-979-1162 | Hose | 30001- | |
| 23 | 11Y-979-8510 | Fitting | 30001- | |
| 24 | 11Y-979-8520 | Cap | 30001- | |
| 25 | 12Y-979-2150 | O-ring | 30001- | |
| 26 | 13Y-979-1172 | Tube | 30001- | |
| 27 | 13Y-979-1182 | Tube | 30001- | |
| 28 | 13Y-979-1192 | Hose | 30001- | |
| 29 | 13Y-979-1212 | Hose | 30001- | |
| 30 | 12Y-06-26622 | Bracket | 30001- | |
| 31 | 13Y-979-1430 | Cushion | 30001- | |
| 32 | 01010-81025 | Bolt | 30001- | |
| 33 | 01643-31032 | Washer | 30001- | |
| 34 | 13Y-979-1440 | Bracket | 30001- | |
| 35 | 13Y-979-1450 | Cushion | 30001- | |
| 36 | 01010-81025 | Bolt | 30001- | |
| 37 | 01643-31032 | Washer | 30001- | |
| 38 | 11Y-979-8780 | Clamp | 30001- | |
| 39 | 11Y-979-8270 | Cover | 30001- | |
| 40 | 11Y-979-8280 | Cover | 30001- | |
| 41 | 01010-81020 | Bolt | 30001- | |
| 42 | 01643-31032 | Washer | 30001- | |
| 43 | 600-051-2080 | Clip | 30001- | |
| 44 | 01010-80840 | Bolt | 30001- | |
| 45 | 01643-30823 | Washer | 30001- | |
| 46 | 08193-20010 | Clip | 30001- | |
| 47 | 13Y-01-11952 | Bracket | 30001- | |
| 48 | 01010-81025 | Bolt | 30001- | |
| 49 | 01643-31032 | Washer | 30001- | |
| 50 | 600-051-2100 | Clip | 30001- | |
| 51 | 01010-81020 | Bolt | 30001- | |
| 52 | 01643-31032 | Washer | 30001- | |
| 53 | (12Y-979-1472) | Tube | - | |
| (12Y-979-1472) | Tube | - | ||
| (12Y-979-1472) | Tube | - | ||
| (12Y-979-1472) | Tube | - | ||
| (12Y-979-1472) | Tube | - | ||
| (12Y-979-1472) | Tube | - | ||
| 54 | (12Y-06-26771) | Plate | - | |
| (12Y-06-26771) | Plate | - | ||
| (12Y-06-26771) | Plate | - | ||
| (12Y-06-26771) | Plate | - | ||
| (12Y-06-26771) | Plate | - |
