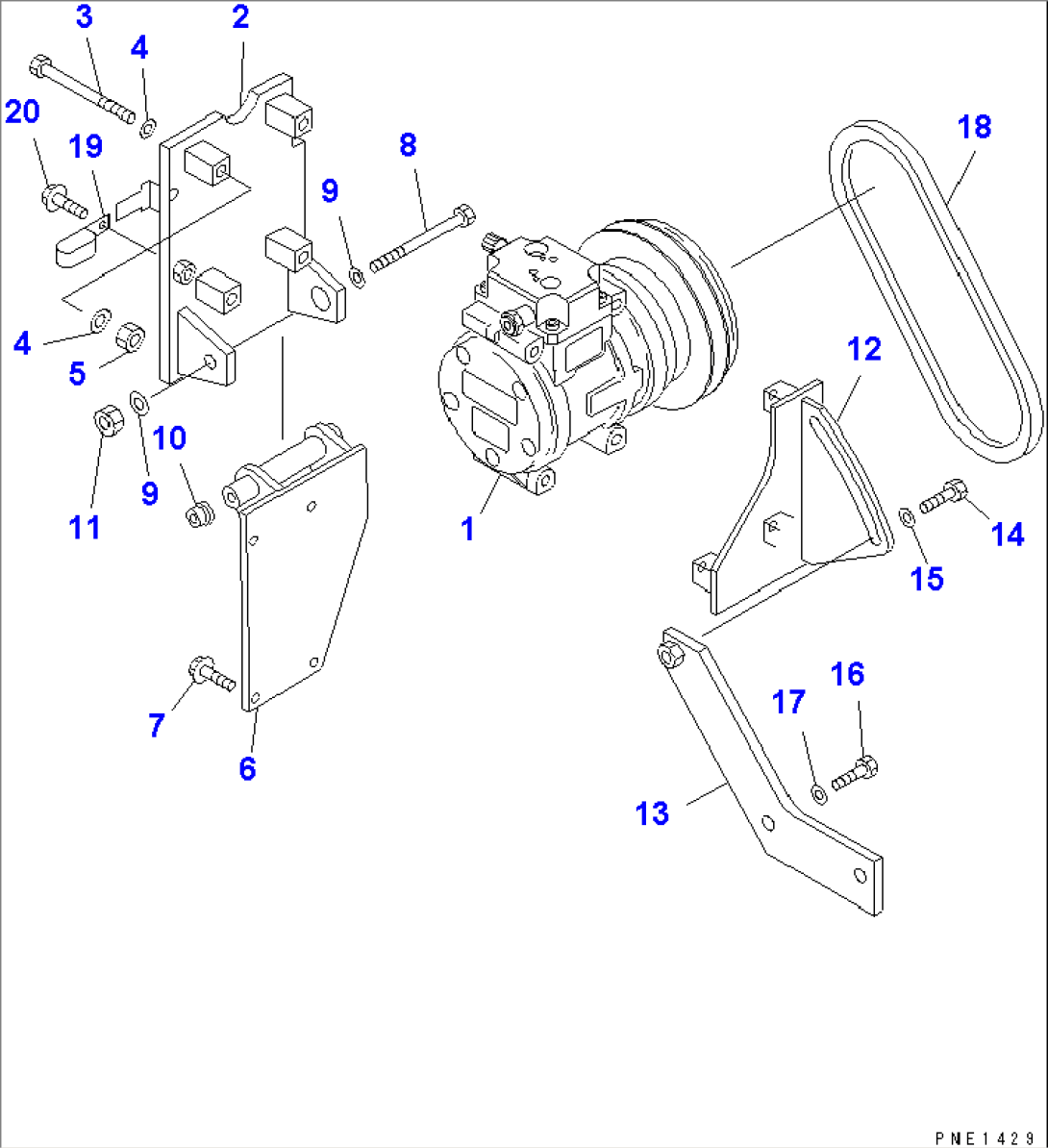

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (20Y-979-3110) | AIR COMPRESSOR ASS'Y,(R134A) | 10112- | |
| 2 | 426-S62-1191 | BRACKET | 10112- | |
| 3 | 6204-81-6810 | BOLT | 10112- | |
| 4 | 01643-30823 | WASHER | 10112- | |
| 5 | 01580-10806 | NUT | 10112- | |
| 6 | 426-963-1121 | BRACKET | 10014- | |
| 7 | 01435-01020 | BOLT | 10014- | |
| 8 | 6206-81-6920 | BOLT | 10115- | |
| 9 | 01643-31232 | WASHER | 10014- | |
| 10 | 419-07-11761 | COLLAR | 10115- | |
| 11 | 01580-11210 | NUT | 10014- | |
| 12 | 428-S62-1330 | BRACKET,ADJUST | 10112- | |
| 13 | 426-T46-1211 | PLATE | 10014- | |
| 14 | 01010-81035 | BOLT | 10112- | |
| 15 | 01643-31032 | WASHER | 10014- | |
| 16 | 01010-81295 | BOLT | 10014- | |
| 17 | 01643-31232 | WASHER | 10014- | |
| 18 | 04120-21738 | V-BELT | 10014- | |
| 19 | 04435-51410 | CLIP | 10112- | |
| 20 | 01435-01020 | BOLT | 10112- |
