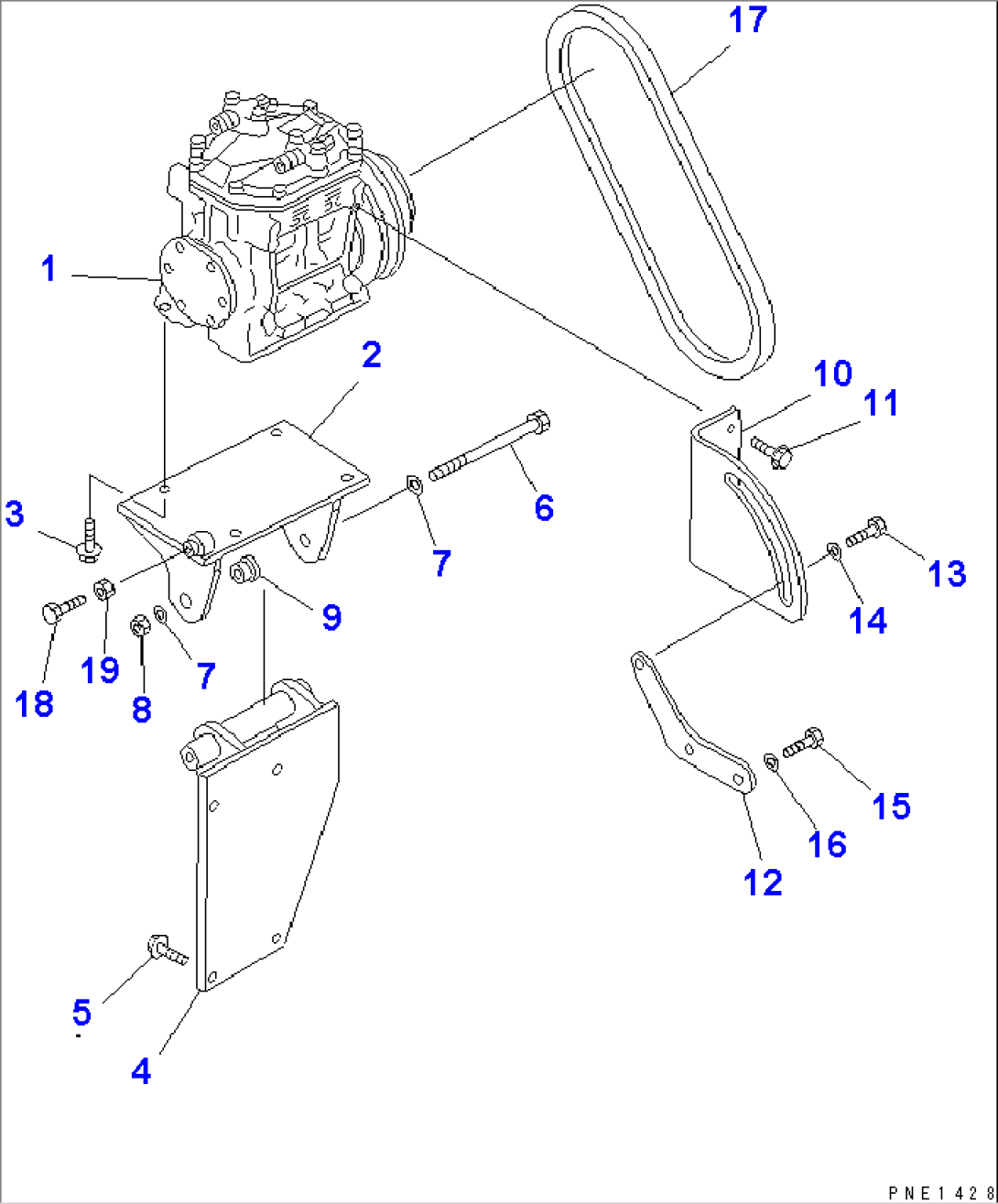

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (195-Z11-5300) | COMPRESSOR ASS'Y | 10001-10111 | |
| 2 | 426-963-1131 | BRACKET | 10014-10111 | |
| 3 | 01435-00830 | BOLT | 10014-10111 | |
| 4 | 426-963-1121 | BRACKET | 10014-@ | |
| 5 | 01435-01020 | BOLT | 10014-@ | |
| 6 | 6206-81-6920 | BOLT | 10115-@ | |
| 01011-81255 | BOLT | 10014-10114 | ||
| 7 | 01643-31232 | WASHER | 10014-@ | |
| 8 | 01580-11210 | NUT | 10014-@ | |
| 9 | 419-07-11761 | COLLAR | 10115-@ | |
| 419-07-11760 | COLLAR | 10014-10114 | ||
| 10 | 426-T46-1220 | PLATE,ADJUST | 10014-10111 | |
| 11 | 01435-00816 | BOLT | 10014-10111 | |
| 12 | 426-T46-1211 | PLATE | 10014-@ | |
| 13 | 01010-81030 | BOLT | 10014-10111 | |
| 14 | 01643-31032 | WASHER | 10014-@ | |
| 15 | 01010-81295 | BOLT | 10014-@ | |
| 16 | 01643-31232 | WASHER | 10014-@ | |
| 17 | 04120-21738 | V-BELT | 10014-@ | |
| 18 | 01016-51050 | BOLT | 10014-10111 | |
| 19 | 01580-11008 | NUT | 10001-10111 |
