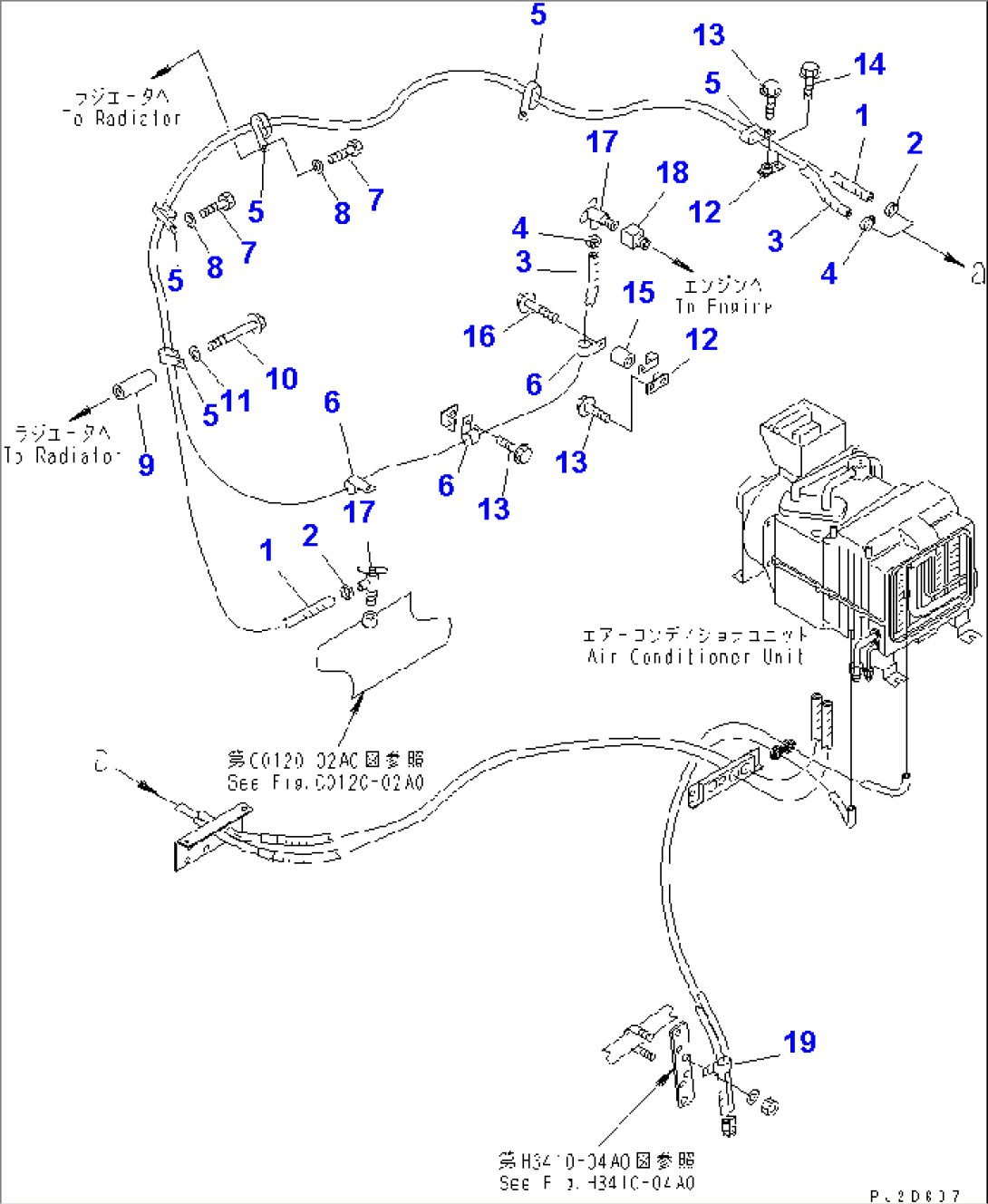

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09483-10526 | HOSE | 7001- | |
| 2 | 09479-02400 | CLAMP | 7096- | |
| \0\07280-02523 | CLAMP | 7001-7095 | ||
| 3 | 09483-10536 | HOSE | 7001- | |
| 4 | 09479-02400 | CLAMP | 7096- | |
| \0\07280-02523 | CLAMP | 7001-7095 | ||
| 5 | 04435-52212 | CLIP | 7001- | |
| 6 | 04434-52212 | CLIP | 7001- | |
| 7 | 01010-81225 | BOLT | 7001- | |
| 8 | 01643-31232 | WASHER | 7001- | |
| 9 | 569-07-81430 | COLLAR | 7001- | |
| 10 | 01010-81285 | BOLT | 7001- | |
| 11 | 01643-31232 | WASHER | 7001- | |
| 12 | 426-06-11570 | BRACKET | 7001- | |
| 13 | 01435-01016 | BOLT | 7001- | |
| 14 | 01435-01220 | BOLT | 7001- | |
| 15 | 569-07-81420 | COLLAR | 7001- | |
| 16 | 01435-01040 | BOLT | 7001- | |
| 17 | 09482-10000 | VALVE | 7001- | |
| 18 | 569-07-63340 | ADAPTER | 7001- | |
| 19 | 04435-51510 | CLIP | 7001- |
