| Item | Part No. | Part Name | Qty | Serial No. |
| 195-911-7211 | UNIT ASS'Y | 37215- | ||
| \0\195-911-7210 | UNIT ASS'Y | 36534-37214 | ||

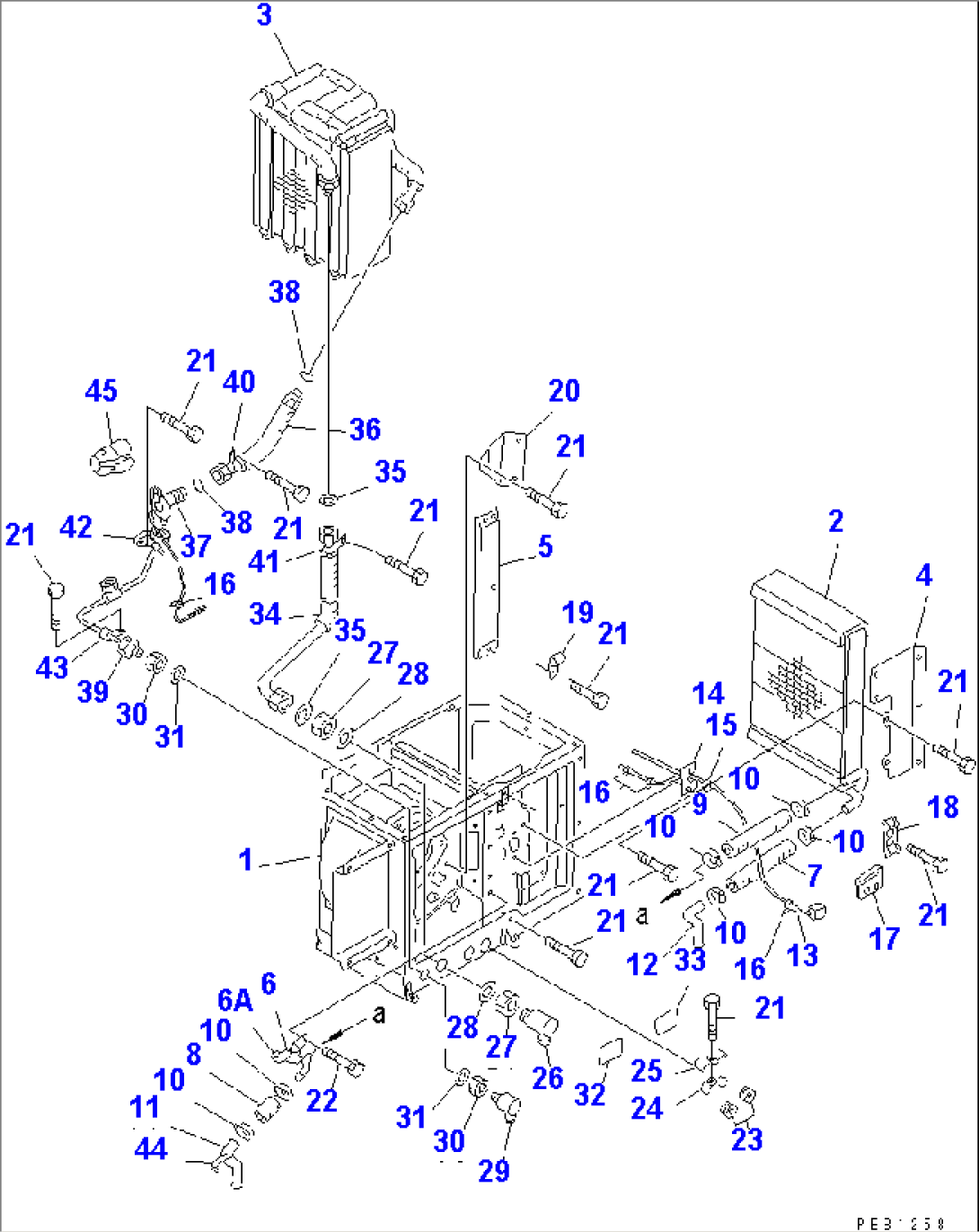

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K2110-13A1 AND K2110-14A1. | ||||
| 1 | 195-Z11-5511 | CASE ASS'Y | 36534- | |
| 2 | 195-Z11-5520 | RADIATOR ASS'Y | 36534- | |
| 3 | 195-911-7220 | EVAPORATOR ASS'Y | 36534- | |
| 4 | 195-Z11-5680 | COVER | 36534- | |
| 5 | 195-Z11-5930 | STAY | 36534- | |
| 6 | 195-Z11-5740 | VALVE ASS'Y | 36534- | |
| 6A | 195-Z11-6640 | BUSHING | 36534- | |
| 7 | 195-Z11-5760 | HOSE | 36534- | |
| 8 | 195-Z11-5770 | HOSE | 36534- | |
| 9 | 195-Z11-5750 | HOSE | 36534- | |
| 10 | 145-Z79-6560 | CLIP | 36534- | |
| 11 | 195-Z11-5820 | PIPE | 36534- | |
| 12 | 195-Z11-5830 | PIPE | 36534- | |
| 13 | 195-Z11-6230 | THERMISTOR | 36534- | |
| 14 | 195-Z11-6160 | BRACKET | 36534- | |
| 15 | 195-Z11-6170 | GROMMET | 36534- | |
| 16 | 195-Z11-5950 | BAND | 36534- | |
| 17 | 195-Z11-5780 | GROMMET | 36534- | |
| 18 | 195-Z11-6120 | CLAMP | 36534- | |
| 19 | 195-Z11-7160 | CLAMP | 36534- | |
| 20 | 195-Z11-5910 | COVER | 36534- | |
| 21 | 01010-80616 | BOLT | 36534- | |
| 22 | 01010-80816 | BOLT | 36534- | |
| 23 | 195-Z11-5790 | GROMMET | 36534- | |
| 24 | 195-Z11-5970 | CLAMP | 36534- | |
| 25 | 195-Z11-6110 | CLAMP | 36534- | |
| 26 | 195-911-7240 | ELBOW | 36534- | |
| 27 | 195-911-7250 | NUT | 36534- | |
| 28 | 195-911-7260 | WASHER | 36534- | |
| 29 | 195-911-7270 | ELBOW | 36534- | |
| 30 | 195-911-7280 | NUT | 36534- | |
| 31 | 195-911-7290 | WASHER | 36534- | |
| 32 | ND146741-2680 | ORNAMENT | 36534- | |
| 33 | ND146741-2570 | ORNAMENT | 36534- | |
| 34 | 195-911-7230 | TUBE | 36534- | |
| 35 | 195-Z11-5730 | PACKING | 36534- | |
| 36 | 195-911-7320 | TUBE | 36534- | |
| 37 | 17M-911-4710 | VALVE | 36534- | |
| 38 | ND949140-2690 | O-RING | 36534- | |
| 39 | 195-911-7310 | TUBE | 36534- | |
| 40 | 195-Z11-5980 | CLIP | 36534- | |
| 41 | 195-Z11-6130 | CLAMP | 36534- | |
| 42 | 195-Z11-6140 | CLAMP | 36534- | |
| 43 | 195-Z11-5990 | CLIP | 36534- | |
| 44 | 195-Z11-5720 | HOLDER | 36534- | |
| 45 | ND046218-0080 | INSULATOR | 36534- |
