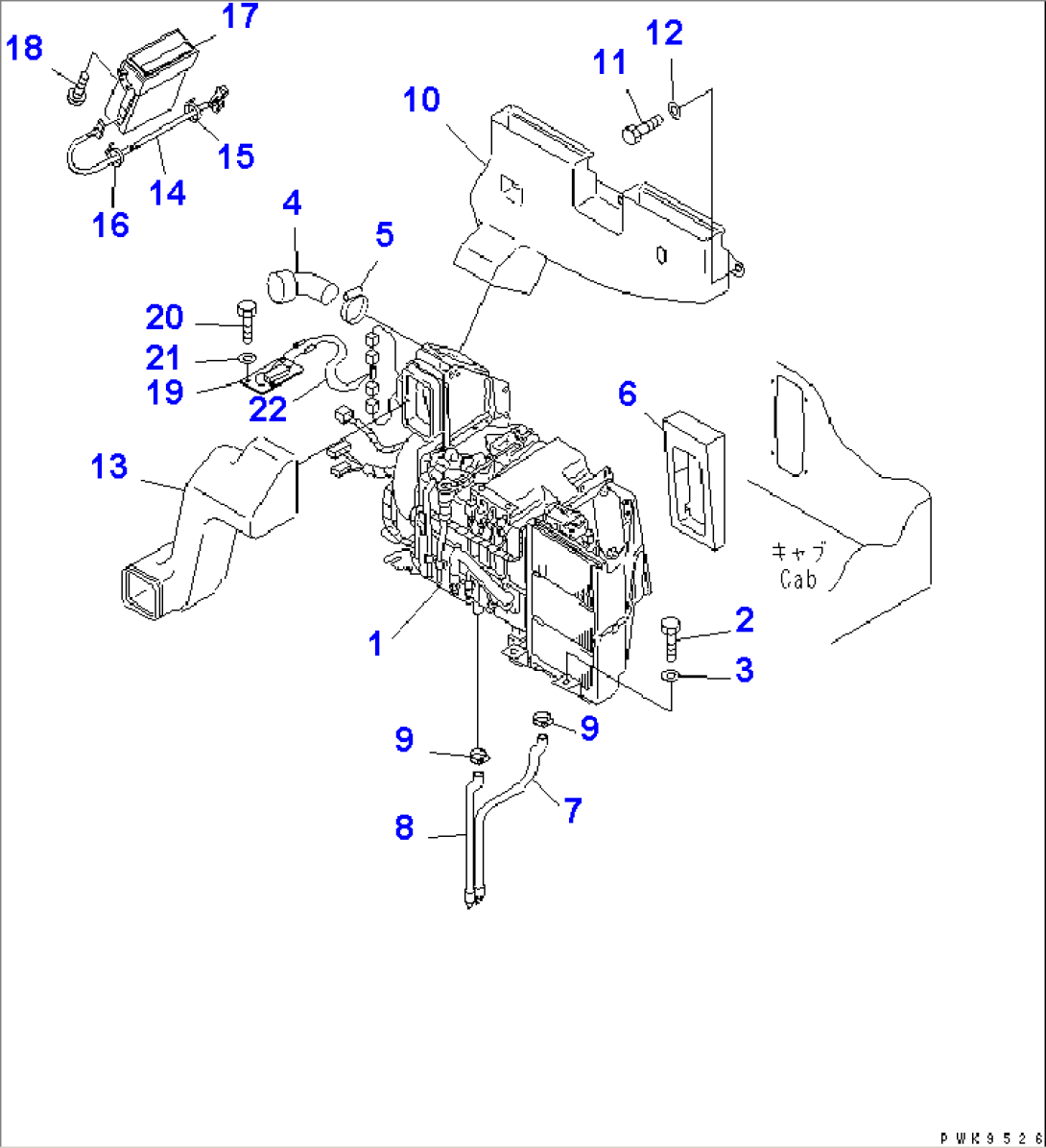

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (20Y-979-3712) | UNIT ASS'Y | K35001- | |
| (20Y-979-3711) | UNIT ASS'Y | K30001-K35000 | ||
| 2 | 01010-81030 | BOLT | K30001- | |
| 3 | 01643-31032 | WASHER | K30001- | |
| 4 | 21P-979-K290 | CAP | K30001- | |
| 5 | 07281-00419 | CLAMP | K30001- | |
| 6 | 20Y-977-K230 | SEAL | K30001- | |
| 7 | 20Y-979-3720 | HOSE | K30001- | |
| 8 | 20Y-979-3730 | HOSE | K30001- | |
| 9 | 07281-00197 | CLAMP | K30001- | |
| 10 | 20Y-979-2271 | DUCT | K30001- | |
| 11 | 01010-81225 | BOLT | K35001- | |
| 01010-81220 | BOLT | K30001-K35000 | ||
| 12 | 01643-31232 | WASHER | K30001- | |
| 13 | 20Y-979-2262 | DUCT | K30001- | |
| 14 | 20Y-979-3180 | HARNESS ASS'Y | K30001- | |
| 15 | 08034-00414 | BAND | K30001- | |
| 16 | 20Y-06-24270 | CLIP | K30001- | |
| 17 | 20Y-979-3170 | PANEL ASS'Y | K30001- | |
| 18 | 01023-10510 | SCREW | K30001- | |
| 19 | 20E-06-K2330 | RESISTOR | K30054- | |
| 20 | 01010-80612 | BOLT | K30054- | |
| 21 | 01643-30623 | WASHER | K30054- | |
| 22 | 20E-06-K2321 | HARNESS | K35001- | |
| 20E-06-K2320 | HARNESS | K30054-K35000 |
