| Item | Part No. | Part Name | Qty | Serial No. |
| (195-911-7210) | UNIT ASS'Y | 36392- | ||
| (195-Z11-5704) | UNIT ASS'Y | 35718-36391 | ||
| \0\195-Z11-5703 | UNIT ASS'Y | 35623-35717 | ||
| (195-Z11-5702) | UNIT ASS'Y | 35001-35622 | ||

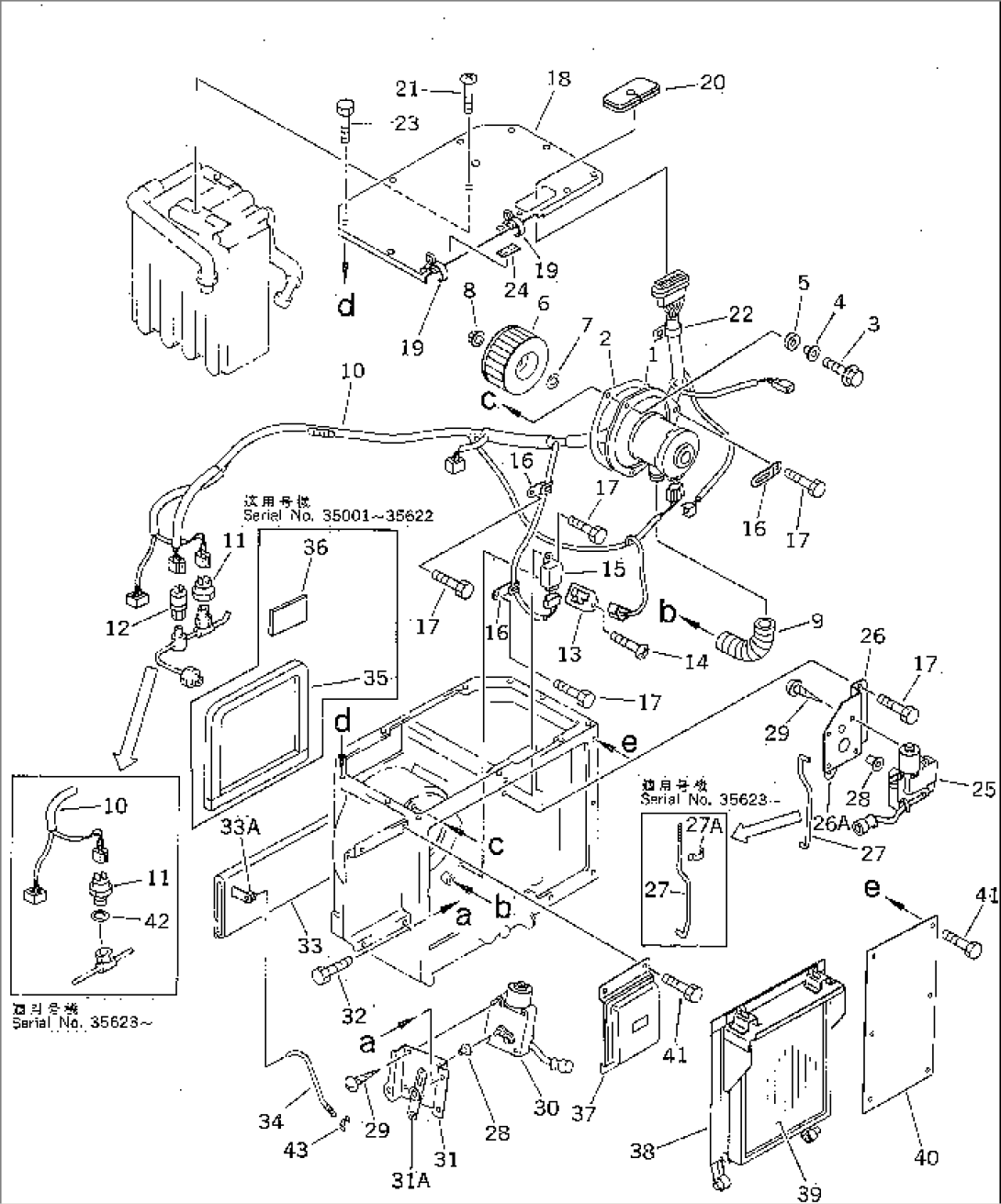

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5915 AND 5916. | ||||
| 1 | 195-Z11-5540 | MOTOR ASS'Y | 35001- | |
| 2 | 195-Z11-5560 | PACKING | 35001- | |
| 3 | 145-Z79-6660 | BOLT | 35001- | |
| 4 | 145-Z79-6670 | INSERT | 35001- | |
| 5 | 145-Z79-6680 | BUSHING | 35001- | |
| 6 | 195-Z11-5570 | FAN | 35001- | |
| 7 | 198-911-5540 | WASHER | 35001- | |
| 8 | 198-911-5530 | NUT | 35001- | |
| 9 | 195-Z11-5580 | PIPE | 35001- | |
| 10 | 195-911-7330 | WIRING HARNESS | 36392- | |
| 195-Z11-5962 | WIRING HARNESS | 35623-36391 | ||
| 195-Z11-5961 | WIRING HARNESS | 35001-35622 | ||
| 11 | 195-911-7340 | SWITCH | 36392- | |
| 195-Z11-5691 | SWITCH | 35623-36391 | ||
| 195-Z11-5690 | SWITCH | 35001-35622 | ||
| 12 | 198-911-5630 | SWITCH | 35001-35622 | |
| 13 | 195-Z11-5590 | RESISTOR | 35001- | |
| 14 | 01220-40416 | SCREW | 35001- | |
| 15 | 195-Z11-5840 | RELAY ASS'Y | 35001- | |
| 16 | 195-Z11-6150 | CLAMP | 35001- | |
| 17 | 01010-50616 | BOLT | 35001- | |
| 18 | 195-Z11-5892 | COVER | 35001- | |
| 19 | 195-Z11-5880 | CLAMP | 35001- | |
| 20 | 195-Z11-5810 | GROMMET | 35001- | |
| 21 | 195-Z11-5940 | SCREW | 35001- | |
| 22 | 195-Z11-7160 | CLAMP | 35001- | |
| 23 | 01010-50816 | BOLT | 35001- | |
| 24 | ND113104-0310 | PLATE¤ NAME | 35623- | |
| ND113104-0160 | PLATE¤ NAME | 35001-35622 | ||
| 25 | 195-Z11-7180 | ACTUATOR ASS'Y | 35001- | |
| 26 | 195-Z11-6210 | LINK | 35001- | |
| 26A | ND146690-1990 | BUSHING | 35001- | |
| 27 | 195-Z11-6252 | SHAFT | 35623- | |
| 195-Z11-6251 | SHAFT | 35001-35622 | ||
| 27A | 195-Z11-6270 | SPRING | 35623- | |
| 28 | 195-Z11-6280 | BUSHING | 35001- | |
| 29 | 01370-00412 | SCREW | 35001- | |
| 30 | 195-Z11-7190 | ACTUATOR ASS'Y | 35001- | |
| 31 | 195-Z11-6220 | LINK | 35001- | |
| 31A | ND146690-1990 | BUSHING | 35001- | |
| 32 | 01010-50616 | BOLT | 35001- | |
| 33 | 195-Z11-6191 | DAMPER | 35001- | |
| 33A | 195-Z11-6640 | BUSHING | 35001- | |
| 34 | 195-Z11-6260 | SHAFT | 35001- | |
| 35 | ND146669-4940 | PACKING | 35001-35622 | |
| 36 | 195-Z11-6240 | PACKING | 35001-35622 | |
| 37 | 195-Z11-6181 | AMP ASS'Y | 35718- | |
| \0\195-Z11-6180 | AMP ASS'Y | 35001-35717 | ||
| 38 | 195-Z11-5862 | HOLDER | 35001- | |
| 39 | 195-Z11-5870 | FILTER | 35001- | |
| 40 | 195-Z11-5920 | COVER | 35001- | |
| 41 | 01010-50816 | BOLT | 35001- | |
| 42 | ND146649-1170 | PACKING | 35623- | |
| 43 | 195-Z11-6270 | SPRING | 35623- |
