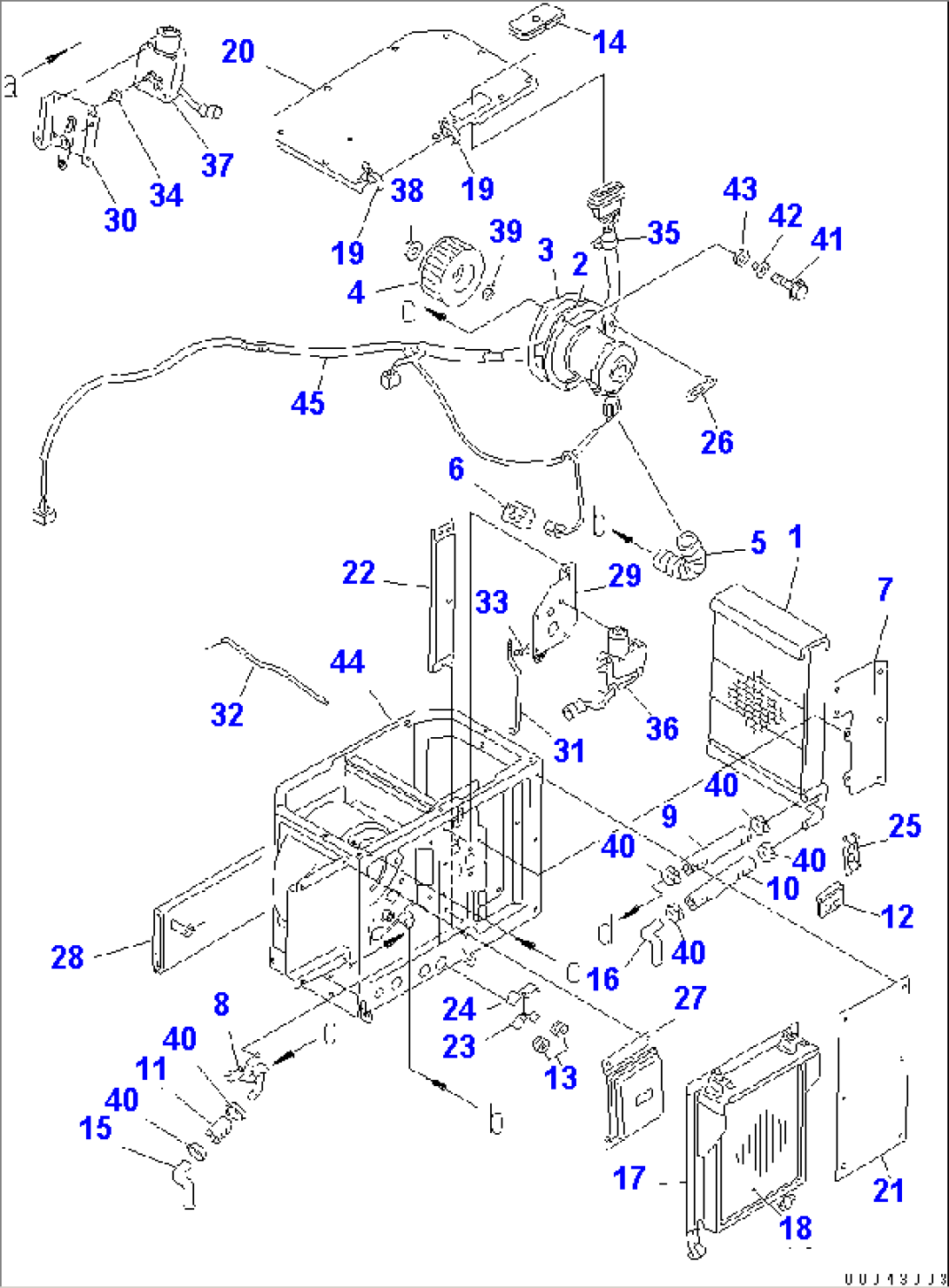

| Item | Part No. | Part Name | Qty | Serial No. |
| 195-Z11-7403 | HEATER ASS'Y | 36534- | ||
| 1 | 195-Z11-5520 | RADIATOR ASS'Y | 36534- | |
| 2 | 195-Z11-5540 | MOTOR ASS'Y | 36534- | |
| 3 | 195-Z11-5560 | PACKING | 36534- | |
| 4 | 195-Z11-5570 | FAN | 36534- | |
| 5 | 195-Z11-5580 | PIPE | 36534- | |
| 6 | 195-Z11-5590 | RESISTOR | 36534- | |
| 7 | 195-Z11-5680 | COVER | 36534- | |
| 8 | 195-Z11-5740 | VALVE ASS'Y | 36534- | |
| 9 | 195-Z11-5750 | HOSE | 36534- | |
| 10 | 195-Z11-5760 | HOSE | 36534- | |
| 11 | 195-Z11-5770 | HOSE | 36534- | |
| 12 | 195-Z11-5780 | GROMMET | 36534- | |
| 13 | 195-Z11-5790 | GROMMET | 36534- | |
| 14 | 195-Z11-5810 | GROMMET | 36534- | |
| 15 | 195-Z11-5820 | PIPE | 36534- | |
| 16 | 195-Z11-5830 | PIPE | 36534- | |
| 17 | 195-Z11-5862 | HOLDER | 36534- | |
| 18 | 195-Z11-5870 | FILTER | 36534- | |
| 19 | 195-Z11-5880 | CLAMP | 36534- | |
| 20 | 195-Z11-7451 | COVER | 36534- | |
| 21 | 195-Z11-5920 | COVER | 36534- | |
| 22 | 195-Z11-5930 | STAY | 36534- | |
| 23 | 195-Z11-5970 | CLAMP | 36534- | |
| 24 | 195-Z11-6110 | CLAMP | 36534- | |
| 25 | 195-Z11-6120 | CLAMP | 36534- | |
| 26 | 195-Z11-6150 | CLAMP | 36534- | |
| 27 | 195-Z11-6182 | AMP ASS'Y | 36534- | |
| 28 | 195-Z11-6191 | DAMPER | 36534- | |
| 29 | 195-Z11-6210 | LINK | 36534- | |
| 30 | 195-Z11-6220 | LINK | 36534- | |
| 31 | 195-Z11-6252 | SHAFT | 36534- | |
| 32 | 195-Z11-6260 | SHAFT | 36534- | |
| 33 | 195-Z11-6270 | SPRING | 36534- | |
| 34 | 195-Z11-6280 | BUSHING | 36534- | |
| 35 | 195-Z11-7160 | CLAMP | 36534- | |
| 36 | 195-Z11-7180 | ACTUATOR ASS'Y | 36534- | |
| 37 | 195-Z11-7190 | ACTUATOR ASS'Y | 36534- | |
| 38 | 198-911-5530 | NUT | 36534- | |
| 39 | 198-911-5540 | WASHER | 36534- | |
| 40 | 145-Z79-6560 | CLIP | 36534- | |
| 41 | 145-Z79-6660 | BOLT | 36534- | |
| 42 | 145-Z79-6670 | INSERT | 36534- | |
| 43 | 145-Z79-6680 | BUSHING | 36534- | |
| 44 | 195-Z11-7410 | CASE ASS'Y | 36534- | |
| 45 | 195-Z11-7420 | WIRING HARNESS | 36534- |
