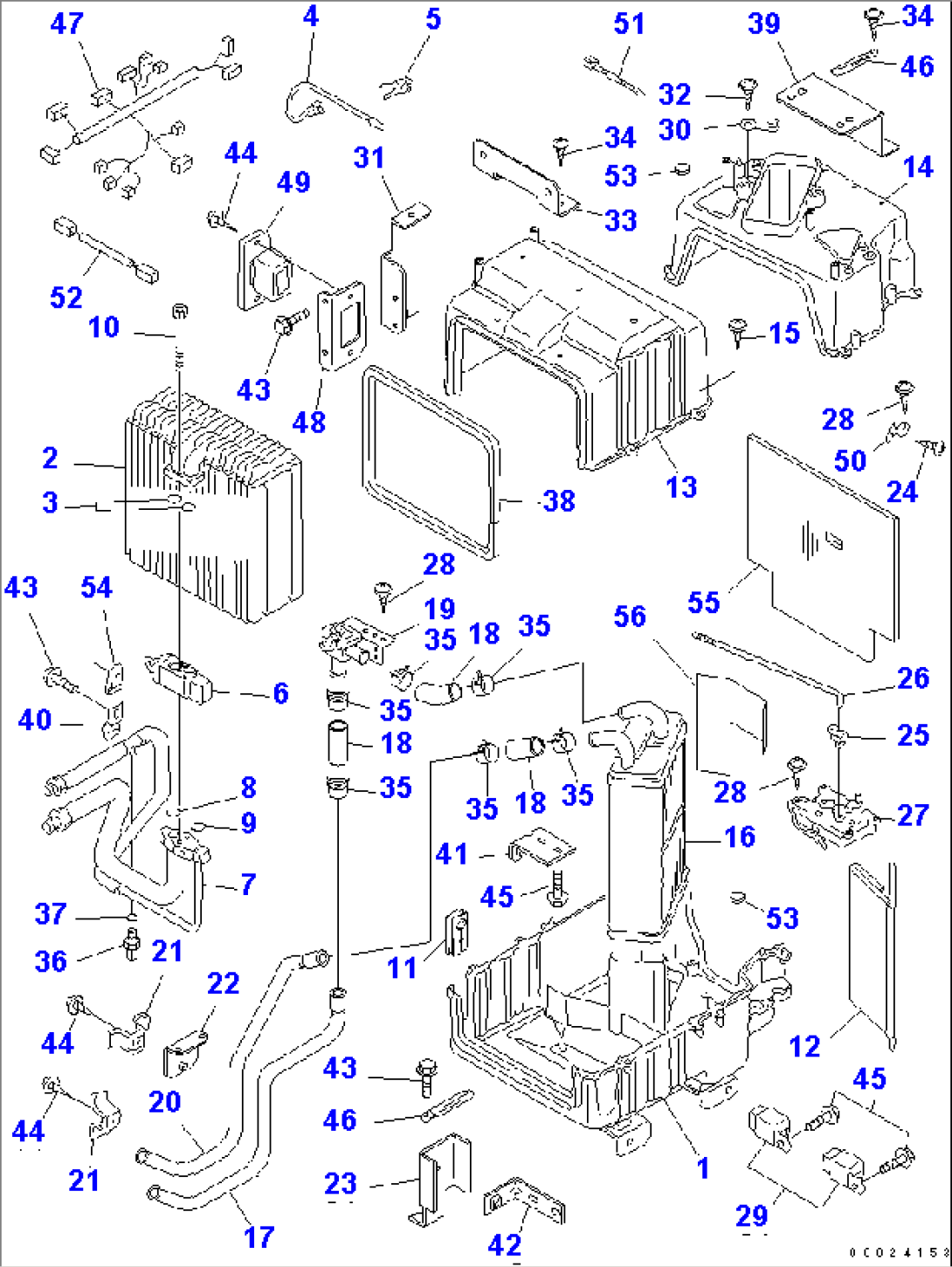

| Item | Part No. | Part Name | Qty | Serial No. |
| 17A-Z11-7110 | UNIT | 10001- | ||
| 1 | ND245420-9730 | CASE | 10001- | |
| 2 | ND447600-0651 | EVAPORATOR | 10001- | |
| 3 | ND949142-0030 | O-RING | 10001- | |
| 4 | ND077500-2580 | THERMISTOR | 10001- | |
| 5 | ND246690-2840 | CLAMP | 10001- | |
| 6 | ND447500-1390 | VALVE | 10001- | |
| 7 | ND446850-4010 | TUBE | 10001- | |
| 8 | ND949142-0030 | O-RING | 10001- | |
| 9 | ND949142-0010 | O-RING | 10001- | |
| 10 | ND949046-2150 | BOLT | 10001- | |
| 11 | ND146984-5680 | GROMMET | 10001- | |
| 12 | ND116730-0500 | DOOR ASS'Y | 10001- | |
| 13 | ND245420-6002 | CASE ASS'Y | 10001- | |
| 14 | ND245420-9780 | CASE | 10001- | |
| 15 | ND949001-1730 | SCREW | 10001- | |
| 16 | ND116120-9280 | CORE ASS'Y | 10001- | |
| 17 | ND116127-7510 | PIPE | 10001- | |
| 18 | 195-979-4841 | HOSE, 50MM | 10001- | |
| 19 | ND113740-0650 | VALVE | 10001- | |
| 20 | ND116127-7520 | PIPE | 10001- | |
| 21 | ND017220-0160 | CLAMP | 10001- | |
| 22 | ND146525-7160 | BRACKET | 10001- | |
| 23 | ND146535-2390 | BRACKET | 10001- | |
| 24 | ND91370-03081 | SCREW | 10001- | |
| 25 | 17M-911-3330 | BUSHING | 10001- | |
| 26 | ND116662-7500 | SHAFT | 10001- | |
| 27 | ND063700-6390 | SERVO MOTOR ASS'Y | 10001- | |
| 28 | ND90930-05201 | SCREW | 10001- | |
| 29 | ND056700-8170 | RELAY ASS'Y | 10001- | |
| 30 | ND017660-3490 | BRACKET | 10001- | |
| 31 | ND146530-0930 | BRACKET | 10001- | |
| 32 | ND90930-05121 | SCREW | 10001- | |
| 33 | ND146530-0941 | BRACKET | 10001- | |
| 34 | ND90930-06141 | SCREW | 10001- | |
| 35 | ND949351-0860 | CLIP | 10001- | |
| 36 | ND443440-0030 | SWITCH | 10001- | |
| 37 | ND949142-0040 | O-RING | 10001- | |
| 38 | ND146668-2030 | PACKING | 10001- | |
| 39 | ND146540-3401 | BRACKET | 10001- | |
| 40 | ND146780-2610 | CLAMP | 10001- | |
| 41 | ND146530-0961 | BRACKET | 10001- | |
| 42 | ND146530-0971 | BRACKET | 10001- | |
| 43 | 417-963-3180 | BOLT | 10001- | |
| 44 | ND91370-04161 | SCREW | 10001- | |
| 45 | ND91478-08161 | BOLT | 10001- | |
| 46 | ND146691-2790 | CLAMP | 10001- | |
| 47 | ND246470-1840 | WIRING HARNESS | 10001- | |
| 48 | ND146525-7180 | BRACKET | 10001- | |
| 49 | ND246810-2530 | RESISTOR | 10001- | |
| 50 | ND146525-7190 | BRACKET | 10001- | |
| 51 | ND040031-0110 | BAND | 10001- | |
| 52 | ND246470-1830 | WIRING HARNESS | 10001- | |
| 53 | ND146622-5690 | PACKING | 10001- | |
| 54 | ND146780-9270 | CLAMP | 10001- | |
| 55 | ND145522-4100 | NET | 10001- | |
| 56 | ND146535-2380 | BRACKET | 10001- |
