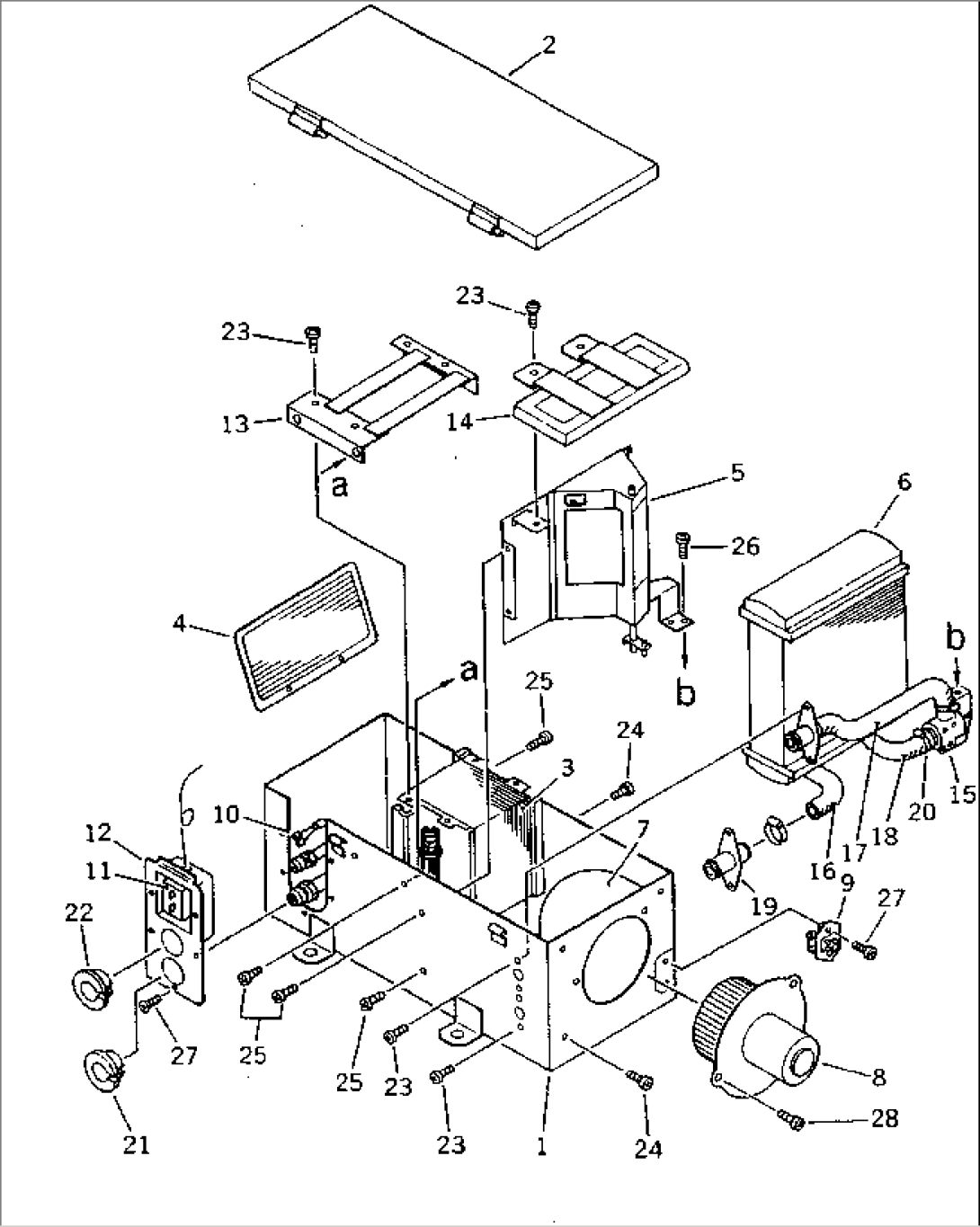

| Item | Part No. | Part Name | Qty | Serial No. |
| 567-07-42210 | AIR CONDITIONER UNIT | 2084- | ||
| 566-07-42100 | AIR CONDITIONER UNIT | 1003-2083 | ||
| 1 | 566-07-42110 | CASE ASS'Y | 1003- | |
| 2 | 566-07-42120 | COVER | 1003- | |
| 3 | DK503700-1950 | EVAPORATOR | 2084- | |
| 3 | 566-07-41520 | EVAPORATOR | 1003-2083 | |
| 3 | DK503714-0660 | VALVE,EXPANSION | 2084- | |
| 3 | 205-978-6320 | VALVE,EXPANSION | 1003-2083 | |
| 4 | 566-07-41121 | FILTER | 1003- | |
| 5 | 566-07-42130 | MODE DOOR ASS'Y | 1003- | |
| 6 | 566-07-42140 | HEATER CORE ASS'Y | 1003- | |
| 7 | 566-07-41580 | BLOWER | 1003- | |
| 8 | 566-07-41571 | FAN MOTOR ASS'Y | 1003- | |
| 8 | 566-07-41760 | MOTOR | 1003- | |
| 8 | 566-07-41770 | IMPELLER | 1003- | |
| 8 | 566-07-41780 | LINING | 1003- | |
| 8 | 566-07-41790 | SCREW | 1003- | |
| 9 | 566-07-41590 | RESISTOR | 1003- | |
| 10 | 566-07-42150 | WIRE ASS'Y | 1003- | |
| 11 | 566-07-41751 | THERMOSTAT | 1003- | |
| 12 | 566-07-42160 | BRACKET | 1003- | |
| 13 | 566-07-42170 | BRACKET | 1003- | |
| 14 | 566-07-42180 | BRACKET | 1003- | |
| 15 | 566-07-42190 | VALVE,WATER | 1003- | |
| 16 | 566-07-42210 | HOSE,WATER | 1003- | |
| 17 | 566-07-42220 | HOSE,WATER | 1003- | |
| 18 | 566-07-42230 | HOSE,WATER | 1003- | |
| 19 | 566-07-42240 | CONNECTOR | 1003- | |
| 20 | 565-95-17230 | CLAMP | 1003- | |
| 21 | 566-07-42250 | GROMMET | 1003- | |
| 22 | 566-07-42260 | GROMMET | 1003- | |
| 23 | 01220-40616 | SCREW | 1003- | |
| 24 | 01220-40625 | SCREW | 1003- | |
| 25 | 01220-40820 | SCREW | 1003- | |
| 26 | 01220-40516 | SCREW | 1003- | |
| 27 | 01220-40412 | SCREW | 1003- | |
| 28 | 01220-40520 | SCREW | 1003- |
