| Item | Part No. | Part Name | Qty | Serial No. |
| 427-07-11100 | AIR CONDITIONER A.,(FOR JAPAN) | 10001-10049 | ||
| 426-07-11100 | AIR CONDITIONER A.,(EXCEPT JAPAN) | 10001-10049 | ||

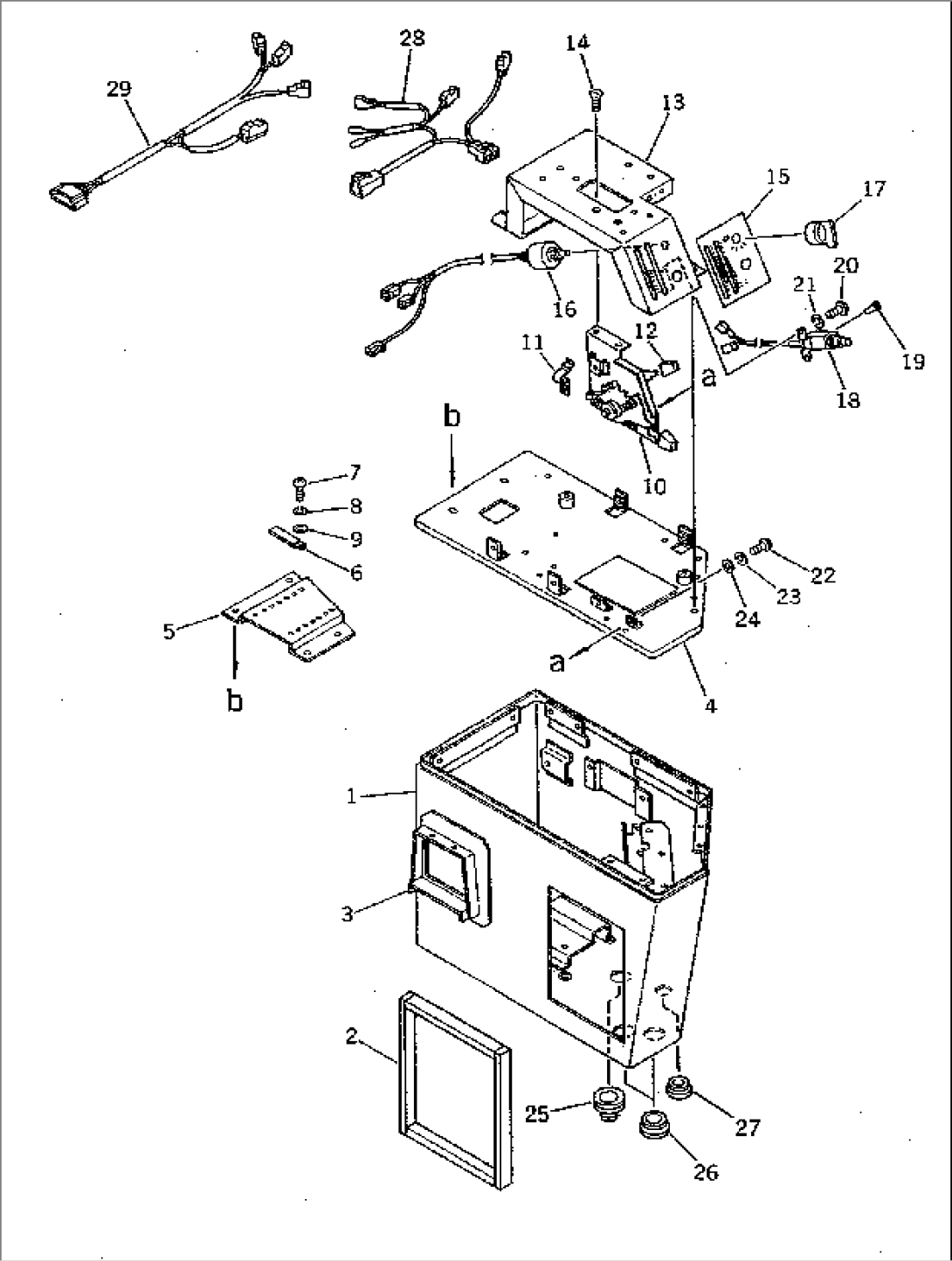

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5511 TO 5513. | ||||
| 1 | \6\ | CASE,(FOR JAPAN) | 10001-10049 | |
| 1 | \6\ | CASE,(EXCEPT JAPAN) | 10001-10049 | |
| 2 | 425-07-11550 | PACKING | 10001-10049 | |
| 3 | 425-07-11930 | SEAL | 10001-10049 | |
| 4 | \6\ | COVER | 10001-10049 | |
| 5 | \6\ | PLATE | 10001-10049 | |
| 6 | 425-07-11540 | CLAMP | 10001-10049 | |
| 7 | 01220-40408 | SCREW | 10001-10049 | |
| 8 | 01601-20410 | WASHER,SPRING | 10001-10049 | |
| 9 | 01642-20405 | WASHER | 10001-10049 | |
| 10 | 425-07-11340 | LEVER ASS'Y | 10001-10049 | |
| 11 | 425-07-11760 | CLIP | 10001-10049 | |
| 12 | 425-07-11770 | KNOB | 10001-10049 | |
| 13 | \6\ | BRACKET | 10001-10049 | |
| 14 | 01224-40508 | SCREW | 10001-10049 | |
| 15 | 425-07-11380 | PANEL | 10001-10049 | |
| 16 | 421-07-12741 | SWITCH,FAN | 10001-10049 | |
| 17 | 425-07-11780 | KNOB | 10001-10049 | |
| 18 | 421-07-12751 | SWITCH,AIR CONDITIONER | 10001-10049 | |
| 19 | 425-07-11790 | BULB, 1W | 10001-10049 | |
| 20 | 01220-40408 | SCREW | 10001-10049 | |
| 21 | 01601-20410 | WASHER,SPRING | 10001-10049 | |
| 22 | 01220-40512 | SCREW | 10001-10049 | |
| 23 | 01601-20513 | WASHER,SPRING | 10001-10049 | |
| 24 | 01642-20508 | WASHER | 10001-10049 | |
| 25 | 425-07-11620 | GROMMET | 10001-10049 | |
| 26 | 425-07-11630 | GROMMET | 10001-10049 | |
| 27 | 425-07-11610 | GROMMET | 10001-10049 | |
| 28 | 425-07-11520 | WIRE ASS'Y | 10001-10049 | |
| 29 | 425-07-11530 | WIRE ASS'Y | 10001-10049 |
