| Item | Part No. | Part Name | Qty | Serial No. |
| (427-07-11100) | AIR CONDITIONER A.,(FOR JAPAN) | 10001-10049 | ||
| (426-07-11100) | AIR CONDITIONER A.,(EXCEPT JAPAN) | 10001-10049 | ||

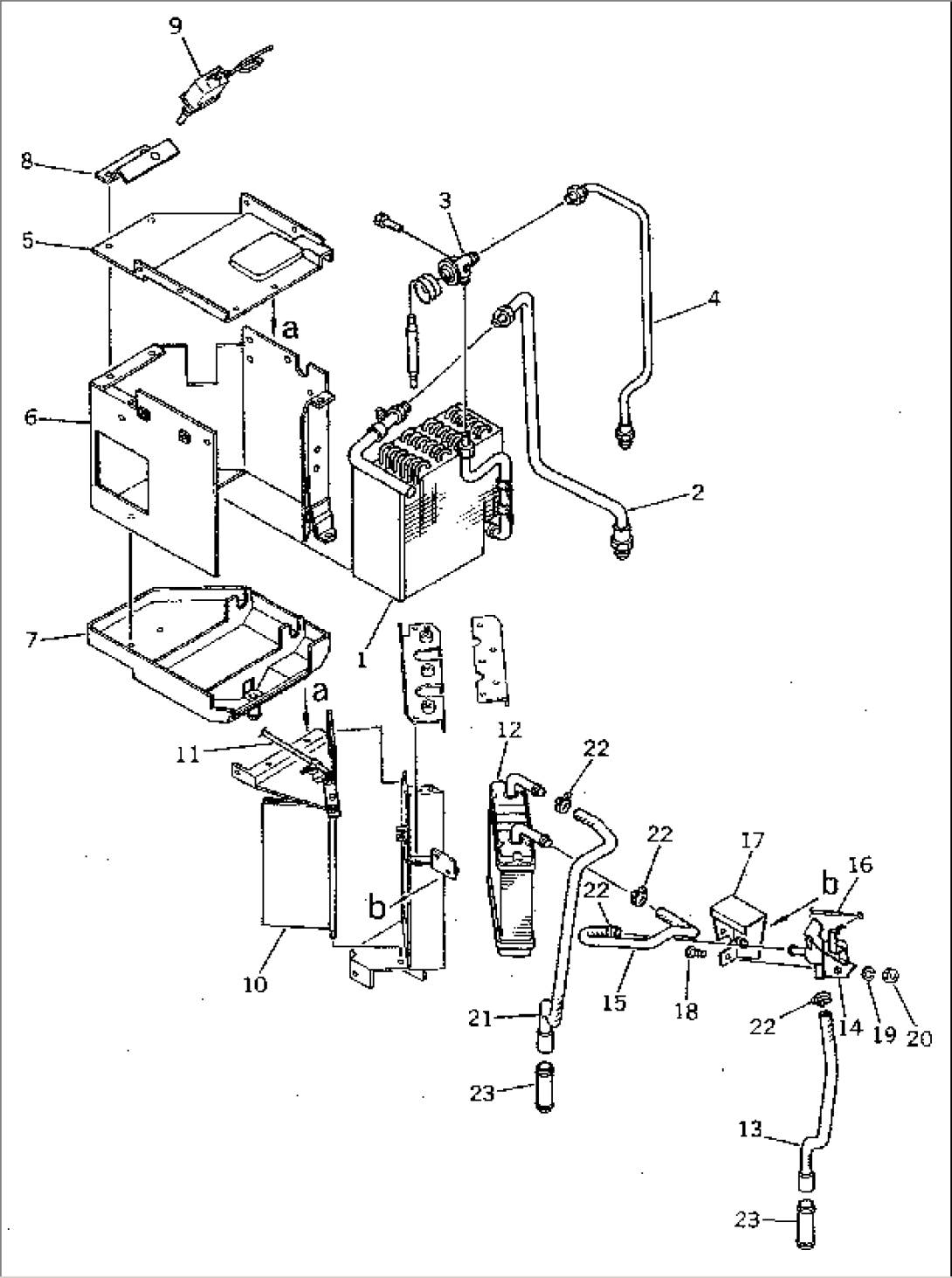

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5511 TO 5513. | ||||
| 1 | 425-07-11411 | EVAPORATOR COIL A. | 10001-10049 | |
| 1 | (\2\425-07-11410) | EVAPORATOR COIL A. | (10001-.) | |
| 2 | 425-07-11441 | TUBE | 10001-10049 | |
| 3 | 425-07-11421 | VALVE,EXPANSION | 10001-10049 | |
| 3 | (\2\425-07-11420) | VALVE,EXPANSION | (10001-.) | |
| 4 | 425-07-11431 | TUBE | 10001-10049 | |
| 5 | \6\ | COVER,EVAPORATOR | 10001-10049 | |
| 6 | \6\ | CASE,EVAPORATOR | 10001-10049 | |
| 7 | \6\ | DRAIN PAN,DRAIN | 10001-10049 | |
| 8 | \6\ | PLATE | 10001-10049 | |
| 9 | 425-07-11450 | THERMOSTAT | 10001-10049 | |
| 10 | 425-07-11360 | DAMPER | 10001-10049 | |
| 11 | 425-07-11490 | WIRE | 10001-10049 | |
| 12 | 425-07-11460 | HEATER UNIT ASS'Y | 10001-10049 | |
| 13 | 425-07-11660 | HOSE | 10001-10049 | |
| 14 | 425-07-11470 | VALVE,WATER | 10001-10049 | |
| 15 | 425-07-11670 | HOSE | 10001-10049 | |
| 16 | 425-07-11890 | WIRE | 10001-10049 | |
| 17 | \6\ | PLATE | 10001-10049 | |
| 18 | 01220-40510 | SCREW | 10001-10049 | |
| 19 | 01601-20513 | WASHER,SPRING | 10001-10049 | |
| 20 | 01580-10504 | NUT | 10001-10049 | |
| 21 | 425-07-11680 | HOSE | 10001-10049 | |
| 22 | 425-07-11650 | CLAMP | 10001-10049 | |
| 23 | 425-07-11590 | CONNECTOR | 10001-10049 |
