| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-963-1510 | AIR CONDITIONER A. | .-10694 | |
| 1 | \9\\9\425-963-1111 | AIR CONDITIONER A. | 10516-. | |
| 1 | 425-963-1110 | AIR CONDITIONER A. | 10050-10515 | |

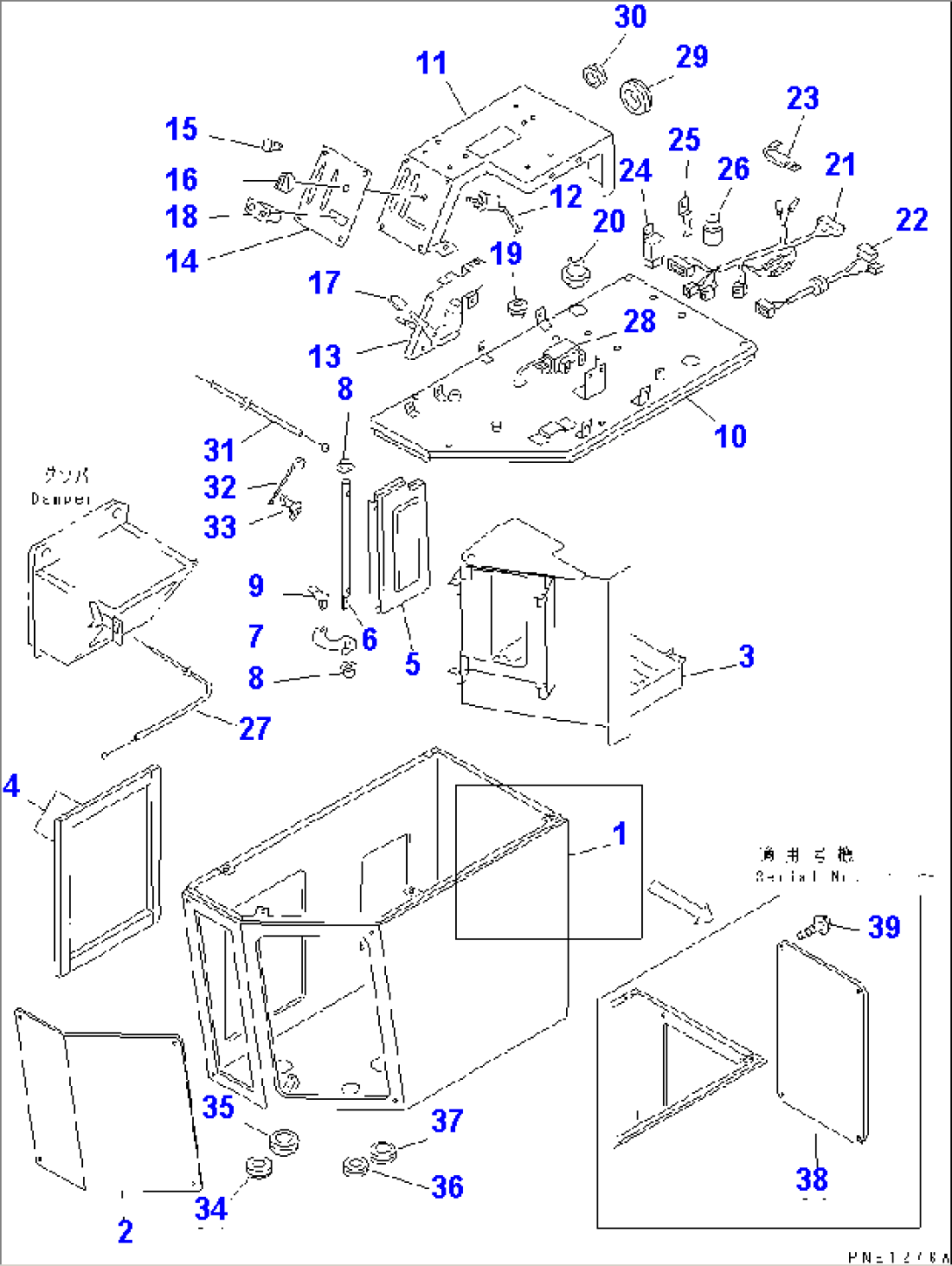

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5531 TO 5533. | ||||
| 1 | 426-T43-1120 | CASE ASS'Y | .-10694 | |
| 1 | 425-963-1611 | CASE ASS'Y | 10516-. | |
| 1 | 425-963-1610 | CASE ASS'Y | 10050-10515 | |
| 2 | 425-963-1621 | COVER ASS'Y | 10516-@ | |
| 2 | 425-963-1620 | COVER ASS'Y | 10050-10515 | |
| 3 | 425-963-1640 | CASE ASS'Y | 10050-@ | |
| 4 | 425-963-1830 | PACKING | 10050-@ | |
| 5 | 425-963-1670 | DAMPER ASS'Y | 10050-@ | |
| 6 | 425-963-1750 | SHAFT | 10050-@ | |
| 7 | 425-963-1760 | LEVER,CONTROL | 10050-@ | |
| 8 | 425-963-2190 | INSERT | 10050-@ | |
| 9 | 425-963-2210 | BUSHING | 10050-@ | |
| 10 | 425-963-1631 | COVER ASS'Y | 10516-@ | |
| 10 | 425-963-1630 | COVER ASS'Y | 10050-10515 | |
| 11 | 425-963-1770 | COVER,CONTROL | 10050-@ | |
| 12 | 425-963-2260 | SWITCH,BLOWER | 10050-@ | |
| 13 | 425-963-1780 | LEVER ASS'Y | 10050-@ | |
| 14 | 425-963-1790 | PANEL | 10050-@ | |
| 15 | 425-963-1880 | CLAMP | 10050-@ | |
| 16 | 425-963-1850 | KNOB | 10050-@ | |
| 17 | 425-963-1860 | KNOB | 10050-@ | |
| 18 | 425-963-2270 | SWITCH,A/C | 10050-@ | |
| 19 | 425-963-2160 | GROMMET | 10050-@ | |
| 20 | 425-963-2170 | GROMMET | 10050-@ | |
| 21 | 425-963-1810 | WIRING ASS'Y | 10050-10694 | |
| 22 | 425-963-1820 | WIRING ASS'Y | 10050-10694 | |
| 23 | 425-963-1870 | CLAMP | 10050-@ | |
| 24 | 425-963-1930 | RELAY,A/C | 10050-@ | |
| 25 | 425-963-2250 | BRACKET | 10050-@ | |
| 26 | 425-963-1920 | RELAY,CONDENSER | 10050-@ | |
| 27 | 425-963-2280 | CABLE | 10050-@ | |
| 28 | 425-963-1940 | THERMOSTAT | 10050-@ | |
| 29 | 425-963-1960 | GROMMET | 10050-@ | |
| 30 | 425-963-1970 | GROMMET | 10050-@ | |
| 31 | 425-963-1690 | CABLE | 10050-@ | |
| 32 | 425-963-1680 | SHAFT | 10050-@ | |
| 33 | 425-963-2220 | CLAMP | 10050-@ | |
| 34 | 425-963-2120 | GROMMET | 10050-@ | |
| 35 | 425-963-2130 | GROMMET | 10050-@ | |
| 36 | 425-963-2140 | GROMMET | 10050-@ | |
| 37 | 425-963-2150 | GROMMET | 10050-@ | |
| 38 | 426-T43-1130 | PLATE | .-10694 | |
| 39 | 01435-00612 | BOLT | .-10694 |
