| Item | Part No. | Part Name | Qty | Serial No. |
| (427-S61-1110) | AIR CONDITIONER A. | 10688- | ||

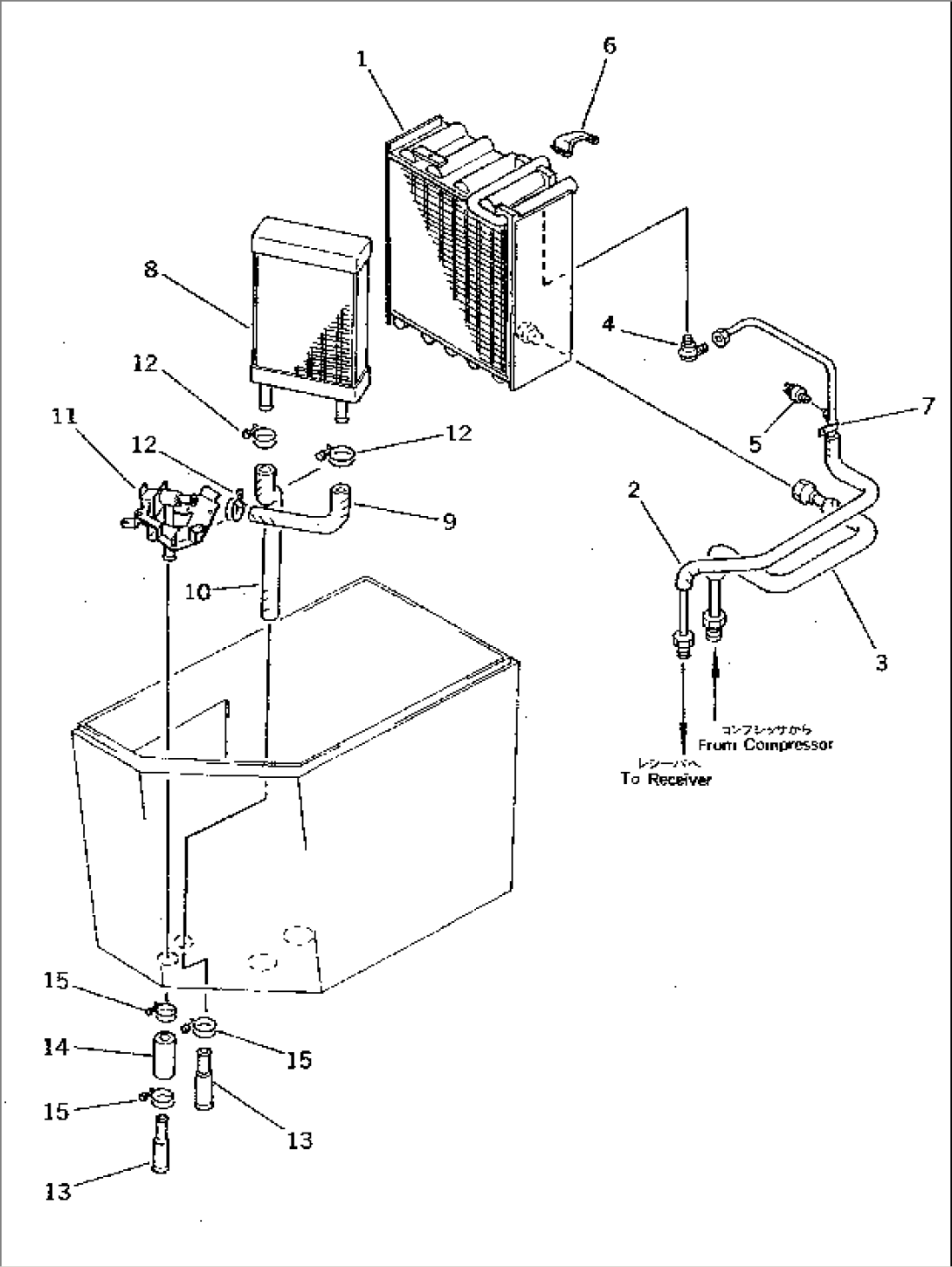

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5511B TO 5513A. | ||||
| 1 | 425-S61-1220 | EVAPORATOR | 10688- | |
| 2 | 425-S61-1230 | TUBE,LIQUID | 10688- | |
| 3 | 425-S61-1240 | TUBE,SUCTION | 10688- | |
| 4 | 425-S61-1250 | VALVE,EXPANSION | 10688- | |
| 5 | 421-07-21810 | SWITCH,PRESSURE | 10688- | |
| 6 | 425-963-2230 | CLIP | 10050- | |
| 7 | 425-963-2240 | CLAMP | 10050- | |
| 8 | 425-963-1660 | HEATER COIL ASS'Y | 10050- | |
| 9 | 425-963-1730 | HOSE,WATER | 10050- | |
| 10 | 425-963-1740 | HOSE,WATER | 10050- | |
| 11 | 425-963-1840 | VALVE,WATER | 10050- | |
| 12 | 425-963-1950 | CLAMP | 10050- | |
| 13 | 425-963-2290 | PIPE | 10050- | |
| 14 | 425-963-2310 | HOSE | 10050- | |
| 15 | 425-963-2320 | CLAMP | 10050- |
