| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09485-01005 | Hose, Air | 80001- | |
| 2 | 14X-911-7670 | Clamp | 80001- | |
| 3 | 14X-911-7670 | Clamp | 80001- | |
| 4 | 14X-Y11-1231 | Duct | 80001- | |
| 5 | 14X-Y11-1580 | Seal | 80001- | |
| 6 | 01010-81030 | Bolt | 80001- | |
| 7 | 01643-31032 | Washer | 80001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D65px 16 s/n 80001 up
- Operator's compartment and control system
- Air conditioner unit, duct (#80001 )
Поиск по каталогу

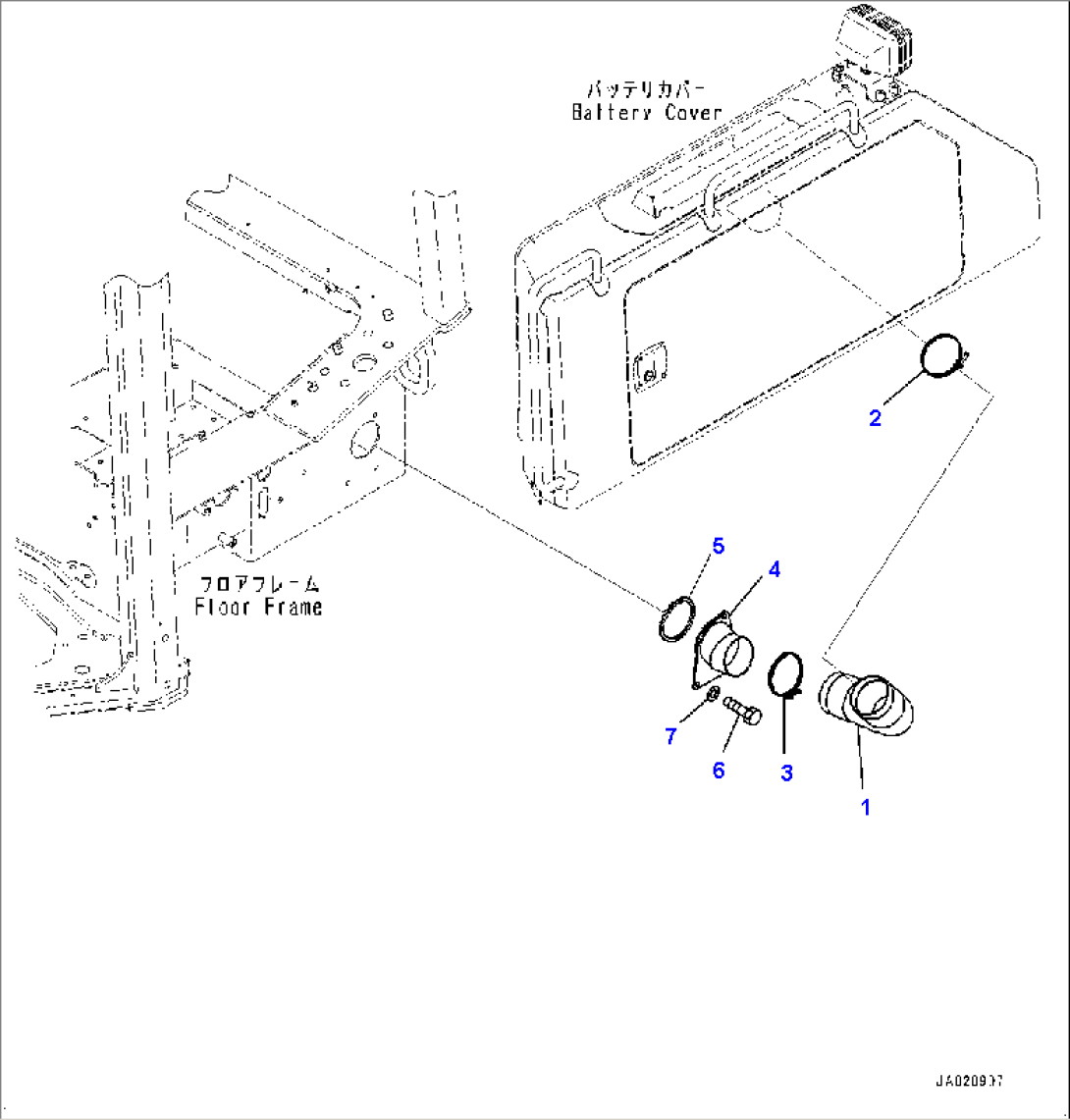

Air Conditioner Unit, Duct (#80001-)
