| Item | Part No. | Part Name | Qty | Serial No. |

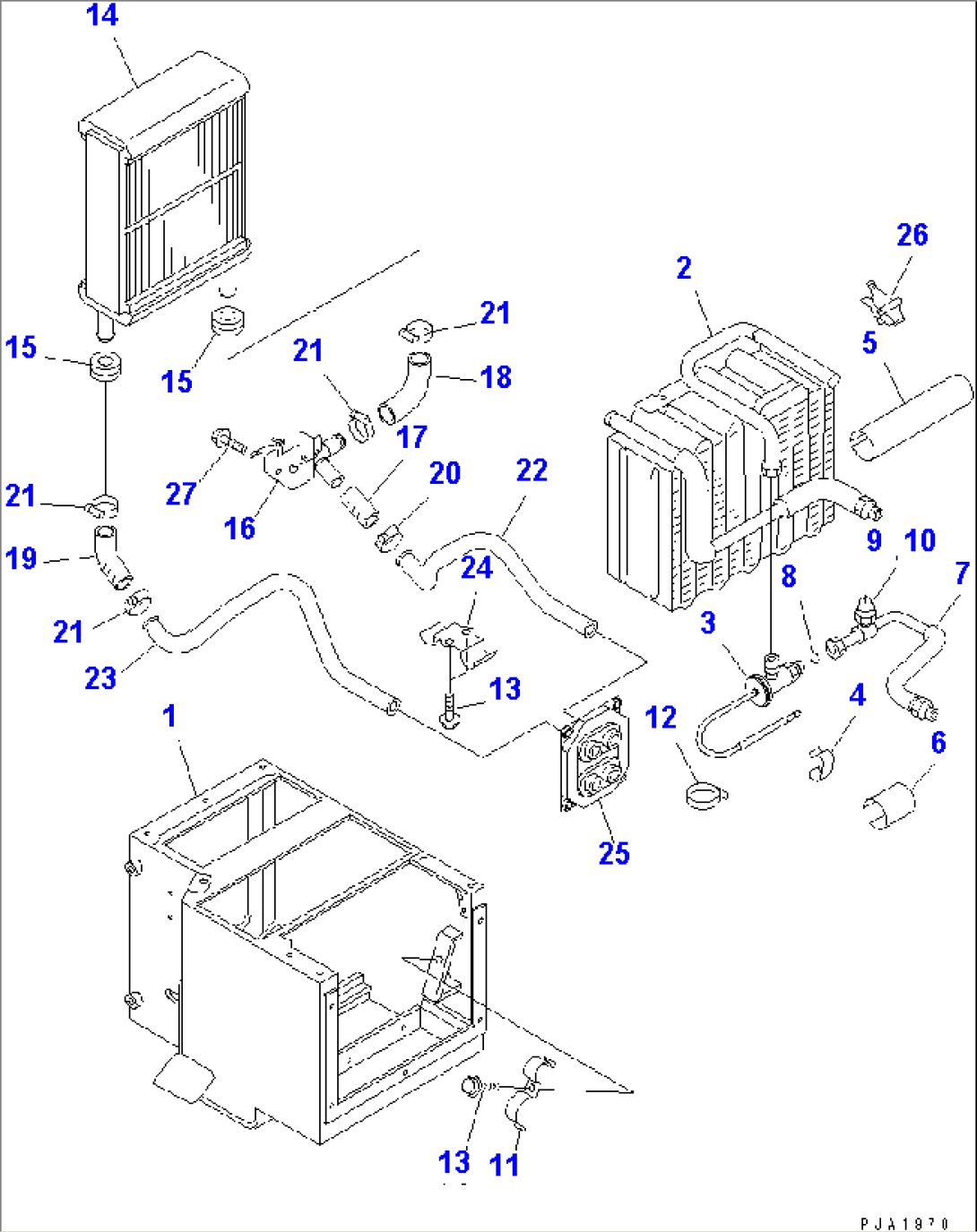

| 14X-911-7102 | AIR CONDITIONER UNIT | 3001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K2210QA AND K2210SA. | ||||
| 1 | ND245420-1370 | CASE | 3001- | |
| 2 | ND447600-1820 | EVAPORATOR | 3001- | |
| 3 | ND447500-0210 | VALVE | 3001- | |
| 4 | ND145511-0040 | HOLDER | 3001- | |
| 5 | 198-911-5670 | PACKING | 3001- | |
| 6 | 145-Z79-6910 | INSULATOR | 3001- | |
| ND446470-178 | TUBE | 3001- | ||
| 7 | ND446190-9800 | TUBE | 3001- | |
| 8 | ND949142-0010 | O-RING | 3001- | |
| 9 | ND443440-0030 | SWITCH | 3001- | |
| 10 | ND949140-3600 | O-RING | 3001- | |
| 11 | ND246781-0050 | CLAMP | 3001- | |
| 12 | ND949821-0180 | BAND | 3001- | |
| 13 | ND91510-06161 | BOLT | 3001- | |
| 14 | ND116410-9980 | RADIATOR | 3001- | |
| 15 | ND949321-4350 | GROMMET | 3001- | |
| 16 | ND113600-8320 | VALVE | 3001- | |
| 17 | ND7052-200400 | HOSE | 3001- | |
| 18 | ND017264-7040 | HOSE | 3001- | |
| 19 | ND017264-7050 | HOSE | 3001- | |
| 20 | 195-979-4240 | CLAMP | 3001- | |
| 21 | ND92021-10251 | CLAMP | 3001- | |
| 22 | ND017441-3090 | PIPE | 3001- | |
| 23 | ND017441-3100 | PIPE | 3001- | |
| 24 | ND246781-0060 | CLAMP | 3001- | |
| 25 | ND146640-6860 | PLATE | 3001- | |
| 26 | ND146690-5360 | CLAMP | 3001- | |
| 27 | ND91510-06081 | BOLT | 3001- |
