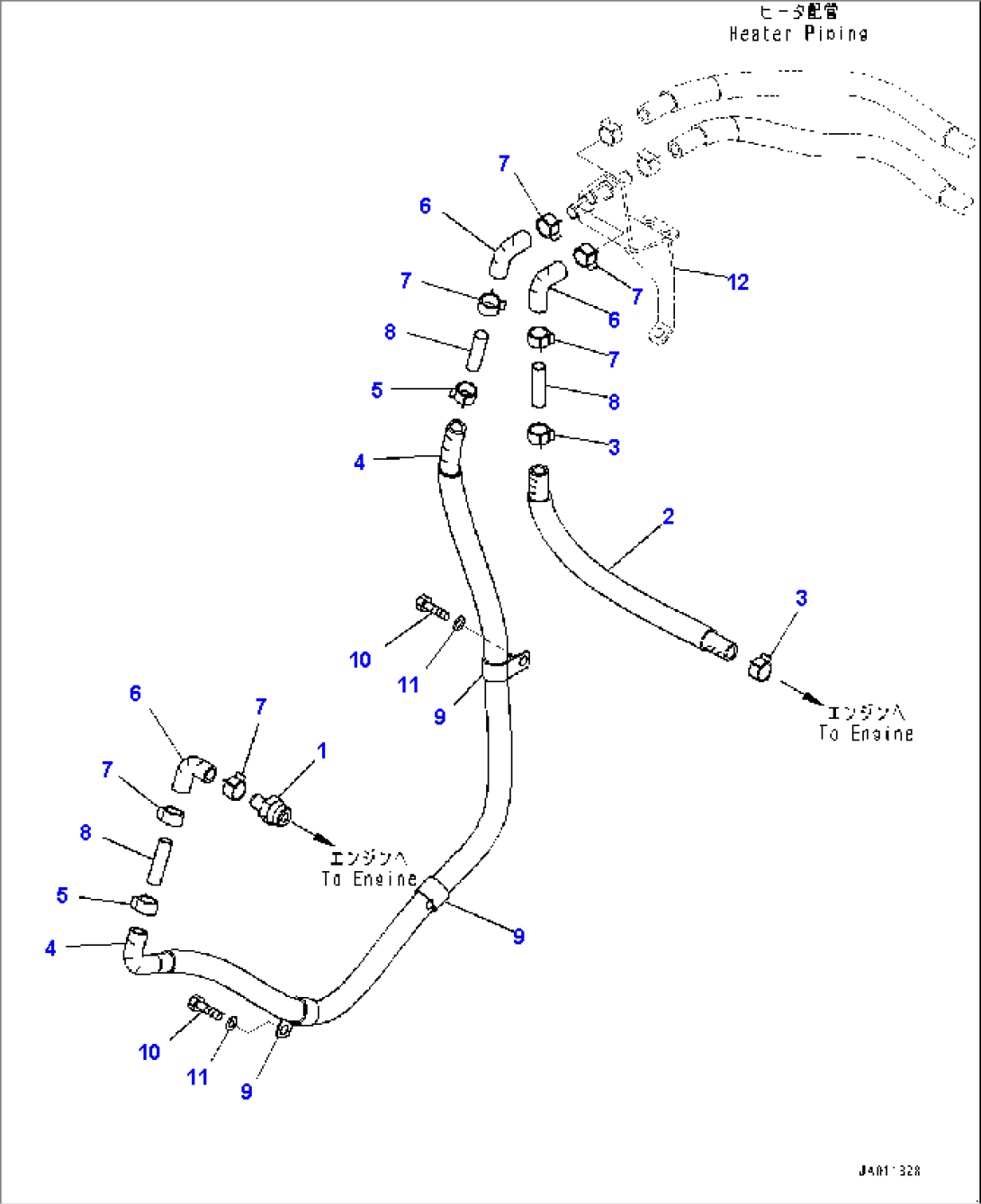

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-Z11-9670 | Nipple | 80001-@ | |
| 2 | 14X-Y11-1421 | Hose | 80001-@ | |
| 3 | 09479-02400 | Clip | 80001-@ | |
| 4 | 14X-Y11-1431 | Hose | 80001-@ | |
| 5 | 09479-02400 | Clip | 80001-@ | |
| 6 | 567-07-15210 | Hose | 80001-@ | |
| 7 | 09479-02400 | Clip | 80001-@ | |
| 8 | 09484-00560 | Connector | 80001-@ | |
| 9 | 08036-93014 | Clip | 80001-@ | |
| 10 | 01010-81020 | Bolt | 80001-@ | |
| 11 | 01643-31032 | Washer | 80001-@ | |
| 12 | (14X-Y11-1971) | Bracket | - | |
| (14X-Y11-1971) | Bracket | - | ||
| (14X-Y11-1971) | Bracket | - |
