| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04120-21758 | V-belt | 1001- | |
| 2 | 01010-81035 | Bolt | 1001- | |
| 3 | 01643-31032 | Washer | 1001- | |
| 4 | 01010-81085 | Bolt | 1001- | |
| 5 | 01643-31032 | Washer | 1001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Hb335lc 1 s/n 1001 up
- Operator's compartment and control system
- Air conditioner unit, v belt (#1001 )
Поиск по каталогу

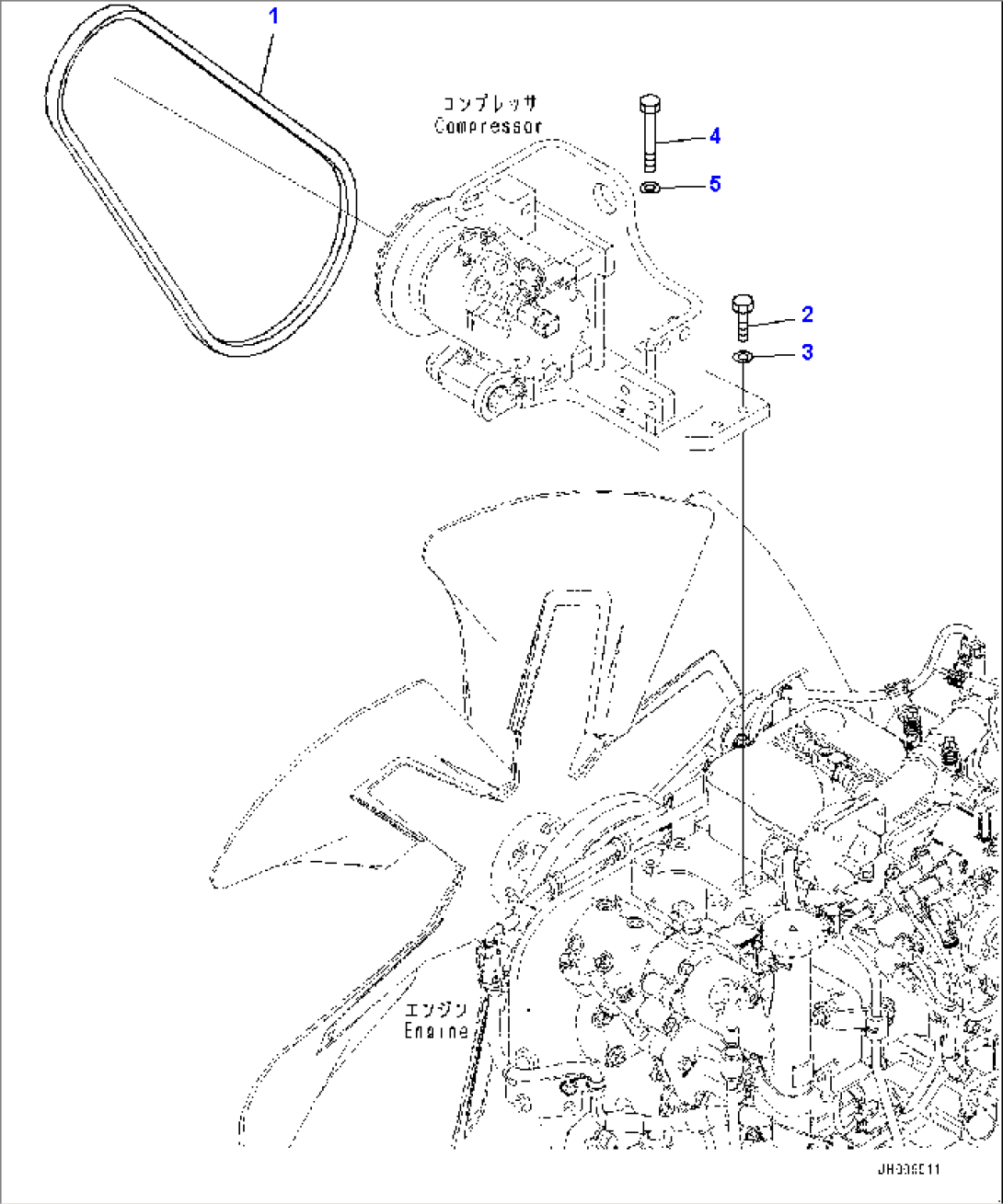

Air Conditioner Unit, V-Belt (#1001-)
