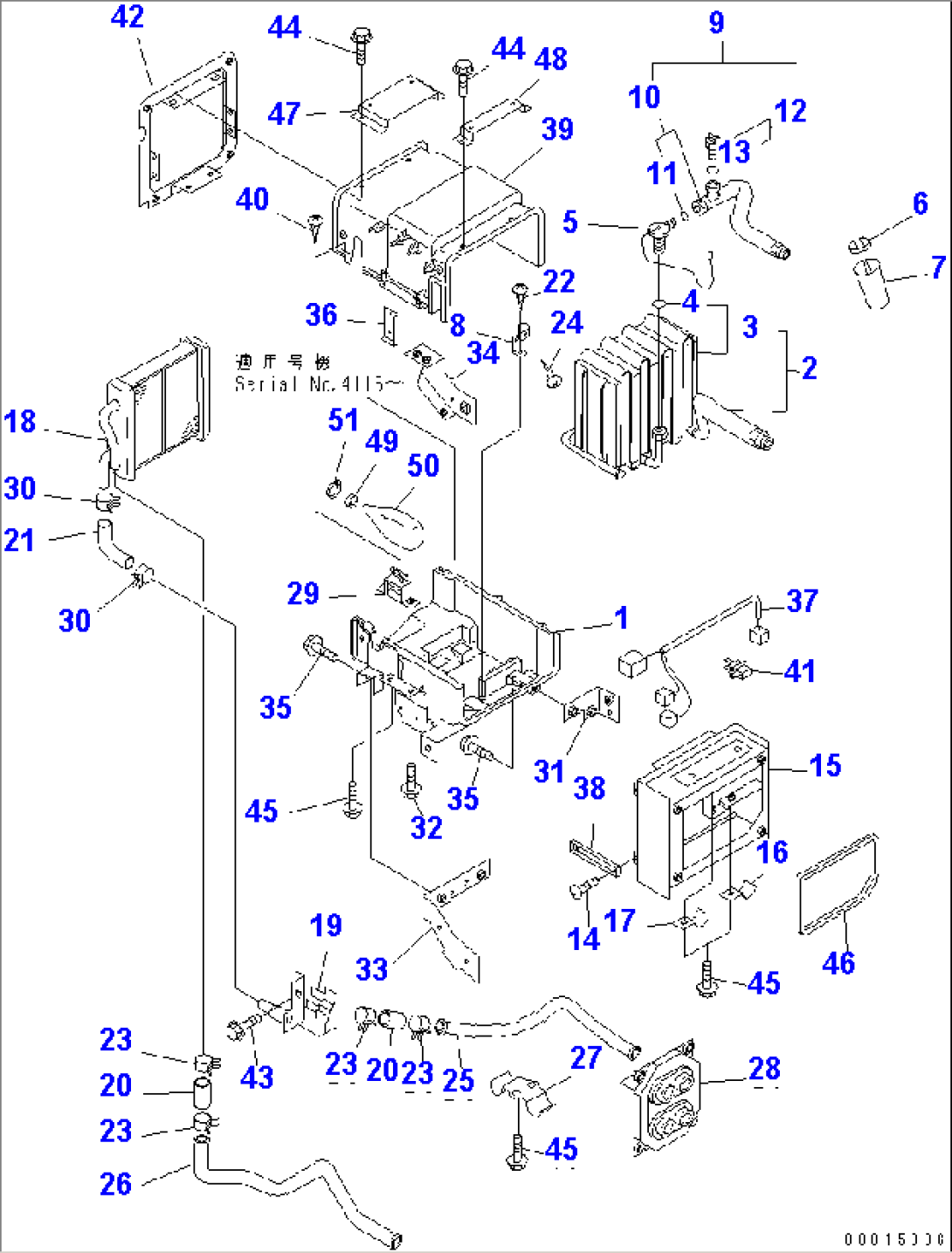

| Item | Part No. | Part Name | Qty | Serial No. |
| 17A-911-7201 | UNIT ASS'Y | 4116- | ||
| 17A-911-7200 | UNIT ASS'Y | 4001-4115 | ||
| 1 | ND245420-7242 | CASE | 4001- | |
| 2 | ND447600-6200 | EVAPORATOR ASS'Y | 4001- | |
| 3 | ND447600-6240 | EVAPORATOR | 4001- | |
| 4 | ND949142-0020 | O-RING | 4001- | |
| 5 | ND447500-0180 | VALVE | 4001- | |
| 6 | ND145511-0040 | HOLDER | 4001- | |
| 7 | ND146639-7250 | PACKING | 4001- | |
| 8 | ND246680-2810 | CLAMP | 4001- | |
| 9 | ND446870-9880 | TUBE | 4001- | |
| 10 | ND446880-9140 | TUBE | 4001- | |
| 11 | ND949142-0010 | O-RING | 4001- | |
| 12 | ND443440-0030 | SWITCH | 4001- | |
| 13 | ND949142-0040 | O-RING | 4001- | |
| 14 | ND949001-2690 | SCREW | 4001- | |
| 15 | ND245420-7250 | CASE | 4001- | |
| 16 | ND146780-9270 | CLAMP | 4001- | |
| 17 | ND146780-2610 | CLAMP | 4001- | |
| 18 | ND116420-3970 | CORE | 4001- | |
| 19 | ND113600-8321 | VALVE | 4001- | |
| 20 | ND7052-200450 | HOSE | 4001- | |
| 21 | ND017264-7040 | HOSE | 4001- | |
| 22 | ND90930-05161 | SCREW | 4001- | |
| 23 | ND949351-0720 | CLAMP | 4001- | |
| 24 | ND90940-05121 | SCREW | 4001- | |
| 25 | ND017451-0500 | PIPE | 4001- | |
| 26 | ND017451-0510 | PIPE | 4001- | |
| 27 | ND246781-0060 | CLAMP | 4001- | |
| 28 | ND146640-6860 | PLATE | 4001- | |
| 29 | ND113550-0650 | THERMOSTAT | 4001- | |
| 30 | ND949351-0860 | CLIP | 4001- | |
| 31 | ND145460-9391 | BRACKET | 4001- | |
| 32 | ND91370-04101 | SCREW | 4001- | |
| 33 | ND245450-0620 | CASE | 4001- | |
| 34 | ND245450-0630 | CASE | 4001- | |
| 35 | ND91478-08161 | BOLT | 4001- | |
| 36 | ND113622-0220 | COVER | 4001- | |
| 37 | ND146421-9060 | WIRE | 4001- | |
| 38 | ND146691-2790 | CLAMP | 4001- | |
| 39 | ND245420-3551 | CASE | 4001- | |
| 40 | ND949001-1730 | SCREW | 4001- | |
| 41 | ND146690-5360 | CLAMP | 4001- | |
| 42 | ND245450-0640 | CASE | 4001- | |
| 43 | ND91570-06101 | BOLT | 4001- | |
| 44 | ND91570-06201 | BOLT | 4001- | |
| 45 | ND91570-06141 | BOLT | 4001- | |
| 46 | ND146668-4880 | PACKING | 4001- | |
| 47 | ND145460-9400 | BRACKET | 4001- | |
| 48 | ND145460-9410 | BRACKET | 4001- | |
| 49 | 195-911-8160 | SHEET | 4116- | |
| 50 | 195-911-8180 | COVER | 4116- | |
| 51 | 08034-20310 | BAND | 4116- |
